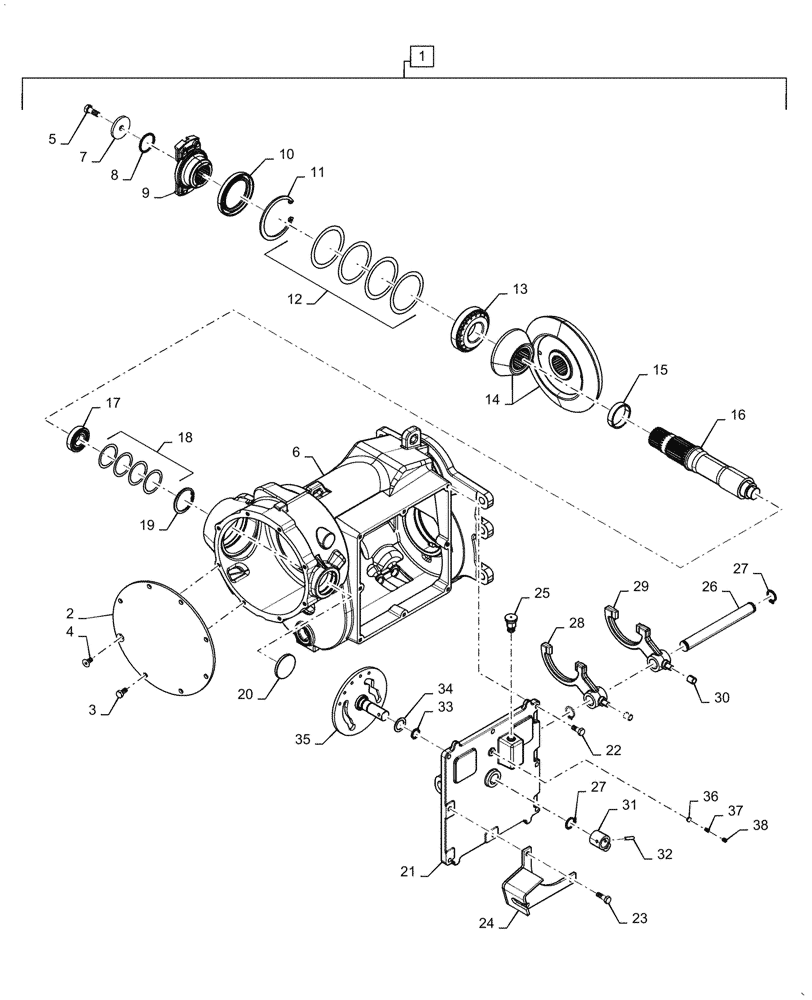

Запчасти Case IH 9230 (66.331.AB[03]) - GEARBOX, ROTOR, INPUT SHAFT (66) - THRESHING

1

47411099

GEARBOX

Rotor, Incl 2 - 38

1шт.

2

87673484

COVER

Plate

1шт.

3

87015732

BOLT,M10 x 1.5 x 26.58mm, Cl 10.9

7шт.

4

725583

HEX SOC SCREW,Flat, M10 x 1.5 x 20mm, Cl 8.8

1шт.

5

87015736

BOLT,M12 x 1.75 x 37.68mm, Cl 10.9

1шт.

6

47411079

HOUSING

3 Speed Rotor Gearbox

1шт.

7

86975743

WASHER,13.22mm ID x 57.5mm OD x 7.1mm Thk

1шт.

8

104258

O-RING,0.21" Thk x 1.6" ID, -326, Cl 5, 75 Duro

1шт.

9

47467464

YOKE

Rotor Gearbox

1шт.

10

84192176

OIL SEAL,75mm ID x 110mm OD x 12mm Thk

1шт.

11

301652

SNAP RING,M110 x 4mm, Internal

1шт.

12

87281005

SHIM KIT

Gearbox

1шт.

13

87280574

BEARING ASSY,50mm ID x 110mm OD x 29.25mm W

1шт.

14

87688722

GEAR SET,Bevel, 41 Tooth/18 Tooth

1шт.

15

87280577

SPACER,54.7mm ID x 62.2mm OD x 14.9mm L

1шт.

16

87684709

SHAFT

Input

1шт.

17

87280575

BEARING ASSY,30mm ID x 62mm OD x 17.25mm W

1шт.

18

87281004

SHIM KIT

Gearbox

1шт.

19

87040216

SNAP RING,M62 x 3mm, Internal

1шт.

20

87280587

PLUG

Cover

2шт.

21

87280566

COVER

Side

1шт.

22

87015733

BOLT,M10 x 1.5 x 31.58mm, Cl 10.9

5шт.

23

87015734

BOLT,M25 x 2mm, External

3шт.

24

87280961

BRACKET

Shift Cable

1шт.

25

87283549

BREATHER

Vent Plug

1шт.

26

87280505

SHIFT RAIL

Shaft

1шт.

27

800-5125

CIRCLIP,M25, External

3шт.

28

87280503

SHIFTER FORK

1st Gear

1шт.

29

87281245

SHIFTER FORK

2nd & 3rd Gear

1шт.

30

87281117

BUSHING,12mm ID x 15mm OD x 16.5mm L

2шт.

31

87280568

LEVER

Rotor Gearbox

1шт.

32

86979985

PIN,6mm OD x 28mm L, Coiled

1шт.

33

14457580

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

1шт.

34

87034239

WASHER,25mm ID x 36mm OD x 2mm Thk

1шт.

35

87719018

PLATE ASSY.

Shift Cam

1шт.

36

86642304

BALL,7.94mm OD, Gr 24

1шт.

37

87281285

SPRING

Compression

1шт.

38

878-10810

SET SCREW,M8 x 10mm

1шт.
