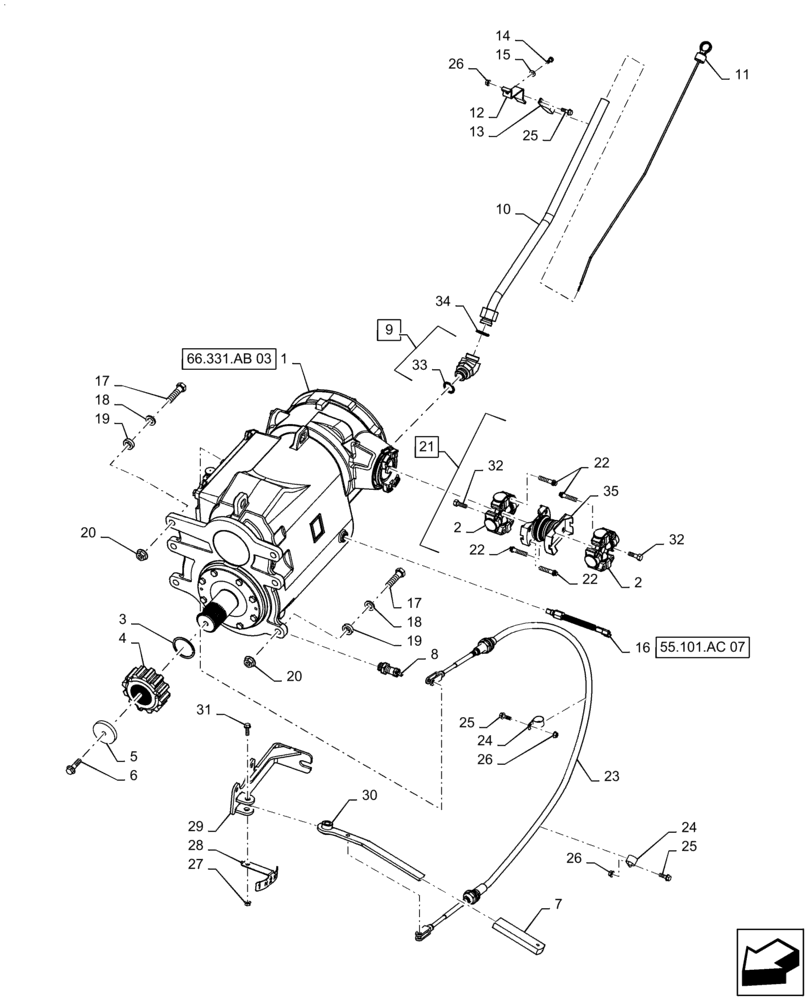

Запчасти Case IH 9230 (66.331.AB[02]) - GEARBOX, ROTOR (66) - THRESHING

1

87687514

GEARBOX ASSY

Rotor, Three Speed

1шт.

1

87687513R

REMAN-ROTOR ASSY

Rotor, Three Speed

1шт.

1

87687513C

CORE-ROTOR

Return Number

1шт.

2

259076A2

U-JOINT SPIDER

Driveshaft, 6C

2шт.

3

87016255

SNAP RING,#250, 2.356, Ext

1шт.

4

47523311

GEAR

Center Rotor, Inner

1шт.

5

47523315

WASHER,13mm ID x 76.2mm OD x 12mm Thk

1шт.

6

47607661

BOLT,M16 x 115.4mm, Cl 10.9

1шт.

7

357545

HANDLE GRIP

Rotor Gearbox Shifter

1шт.

8

87485712

DRAINCOCK/TAP SUPPLY

Drain Valve

1шт.

9

86639054

45 ELBOW,45 Degree, 1-7/16"-12 ORFS x M33 x 2.0 ORB

Incl 33

1шт.

10

87553424

TUBE,1" OD

Rotor Gearbox Dipstick

1шт.

11

84153776

DIPSTICK

Rotor Gearbox

1шт.

12

87106209

BRACKET

Dipstick Tube Support

1шт.

13

600427

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

25.4mm ID x 15.9mm W, Lined

1шт.

14

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

15

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

16

87105603

SENSOR

Feeder Speed

1шт.

17

87017895

BOLT,M16 x 2.0 x 70.18mm, Cl 10.9

6шт.

18

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

6шт.

19

87106105

SPACER

17.46mm ID x 30.16mm OD x 9mm Thk

6шт.

20

86981464

FLANGE NUT,M16 x 2.0, Cl 10

6шт.

21

87655130

SHAFT

Rotor Gearbox Driveshaft, 6C, Incl 2, 32, 35

1шт.

22

87017891

12 PT SCREW,M10 x 1.5 x 55mm, Cl 12.9

8шт.

23

86998008

CABLE,2900mm L

Rotor Gearbox Shift

1шт.

24

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

25

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

3шт.

26

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

3шт.

27

412126

NUT,M12 x 1.75

1шт.

28

87106667

INDICATOR

Reotor Gearbox Gear Position

1шт.

29

87107830

BRACKET

Rotor Gearbox Shift Cable

1шт.

30

87107827

LEVER

Rotor Gearbox Shift

1шт.

31

9706693

BOLT,M12 x 60mm, Cl 8.8

1шт.

32

87015535

BOLT,Hex, M10 x 45mm, Cl 10.9

8шт.

33

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

34

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

35

NSS

NOT SOLD SEPARAT

Driveshaft, 6C, Incl in 21

1шт.
