Запчасти Case IH 9230 (66.101.AR) - VAR - 425198, 425199, 425513 - PLATE, CONE (66) - THRESHING

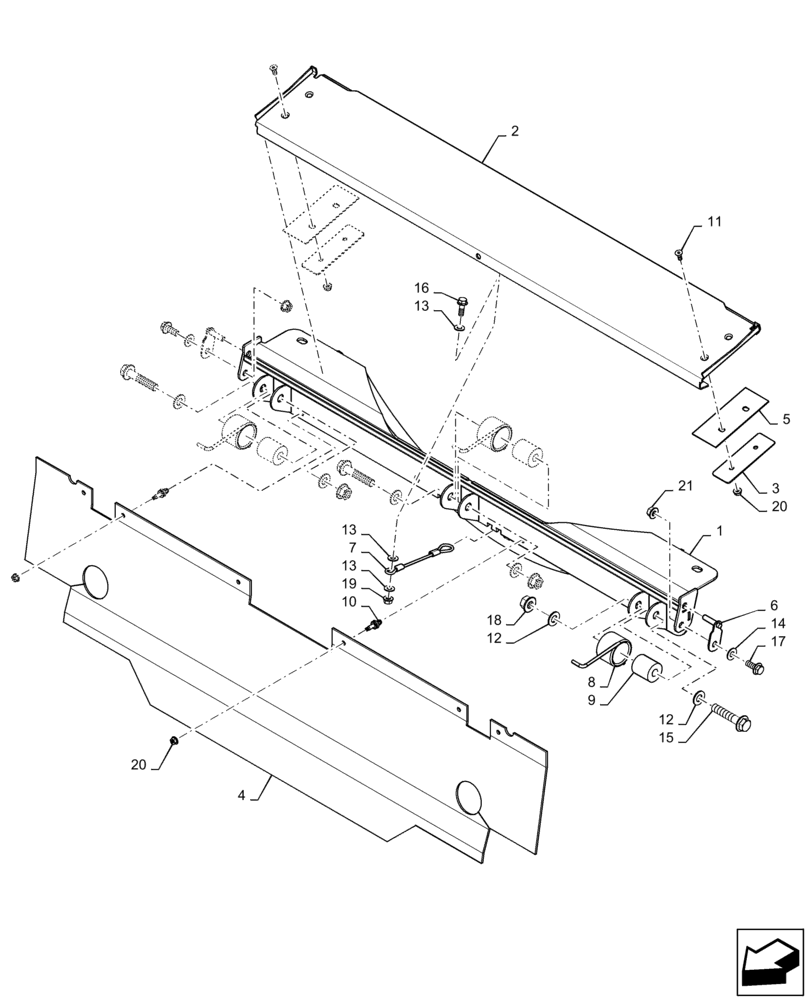

Схема запчастей Case IH 9230 - (66.101.AR) - VAR - 425198, 425199, 425513 - PLATE, CONE (66) - THRESHING
17
8
13
14
13
18
11
16
5
2
1
10
3
20
21
6
12
4
9
12
19
13
20
15
7

Артикул

Название

Примечание

Количество

1

84555201

PLATE

Standard - VAR - 425198

1шт.

1

84555218

PLATE

Extended Wear - VAR - 425199, 425513

1шт.

2

87522176

PLATE

Standard - VAR - 425198

1шт.

2

87568249

PLATE ASSY.

Extended Wear - VAR - 425199, 425513

1шт.

3

87106848

PLATE,148mm L x 50mm W x 3mm Thk

148mm L x 50mm W x 3mm Thk

2шт.

4

84235276

CURTAIN,415.6mm W x 1550mm L

Front Axle Seal

1шт.

5

87280910

SEAL,70mm W x 166mm L

2шт.

6

87280909

PIN,Securing, 10mm OD x 41mm L

Securing, 10mm OD x 41mm

2шт.

7

87106795

CABLE,Retaining, 190mm L

Retaining, 190mm OAL

1шт.

8

86997885

SPRING,Return, 50.8mm ID x 45.7mm W

Return, 50.8mm ID x 45.7mm W

3шт.

9

86997911

BUSHING,17mm ID x 44mm OD x 48mm L

17mm ID x 44mm OD x 48mm W

3шт.

10

84572087

RIVET,17.28mm OD x 48.8mm L

6шт.

11

412495

HEX SOC SCREW,Flat Hd, M8 x 20mm, Cl 8.8

4шт.

12

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

6шт.

13

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

14

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

15

87646188

FLANGE BOLT,M16 x 95.4mm, Cl 10.9

3шт.

16

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

1шт.

17

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

2шт.

18

86512498

FLANGE NUT,M16 x 2, Cl 10

3шт.

19

86050279

FLANGE NUT,M10 x 1.5, Cl 10

1шт.

20

87681210

FLANGE NUT,M8 x 1.25, Cl 10

10шт.

21

43436

FLANGE NUT,M12

2шт.

Выбрано товаров: 23
