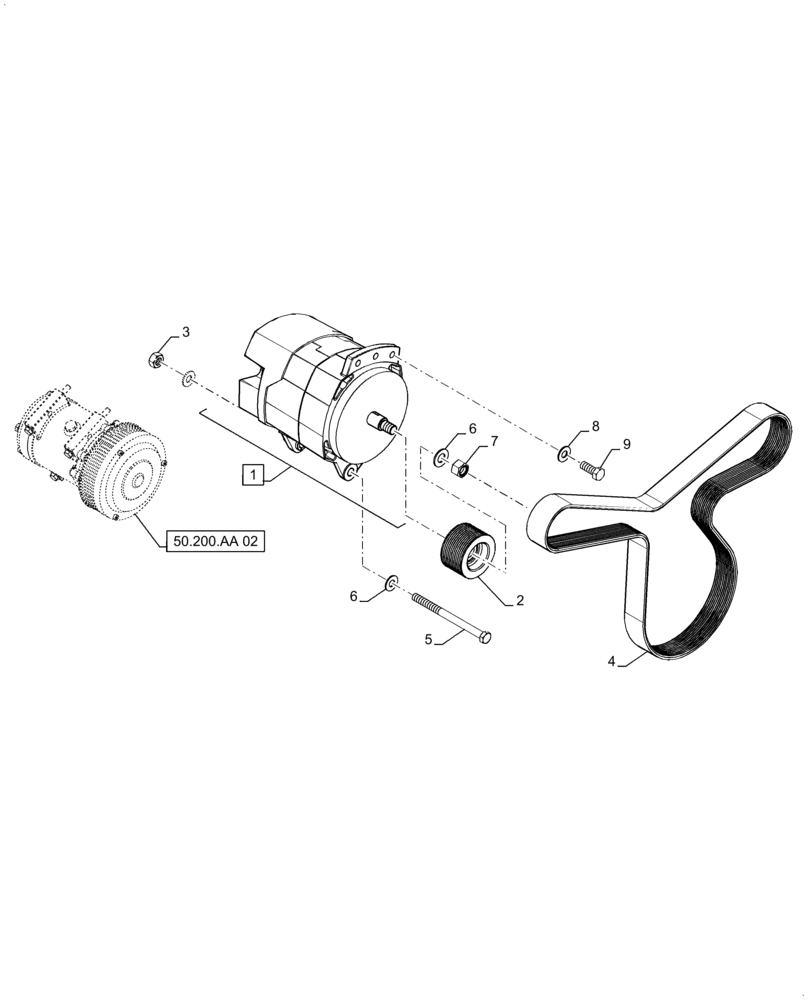

Запчасти Case IH 9230 (55.301.AD[02]) - ALTERNATOR, BELT (55) - ELECTRICAL SYSTEMS

1

87592254

ALTERNATOR,12V, 185A

12V, 185 Amp, Incl 8, 9

1шт.

2

84247658

PULLEY

Alternator, 22.25mm ID x 61.4mm OD x 50mm W

1шт.

3

9706685

NUT,M12 x 1.75, Cl 8

1шт.

4

84247607

BELT

Multi - V, Alternator, 1818mm Nominal Length

1шт.

5

397393

BOLT,M12 x 1.75 x 167.68mm OAL, Cl 8.8

1шт.

6

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

3шт.

7

280853

BOLT,1/2"-13 x 1.563" OAL, Cl 8, Full Thd

1шт.

8

NSS

NOT SOLD SEPARAT

Washer, 5/8" ID, Flat, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Nut, 5/8" - 18, Incl in 1

1шт.
