Запчасти Case IH 9230 (50.200.AB[02]) - HVAC HOSES, 8230/9230 T4 (50) - CAB CLIMATE CONTROL

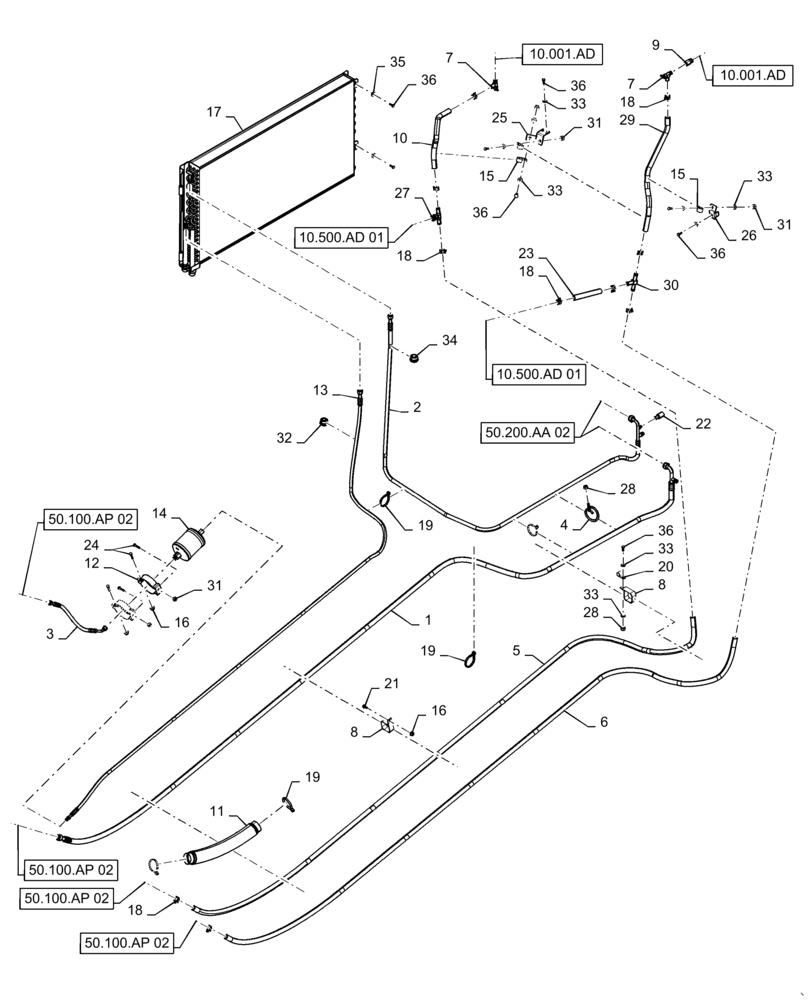

Схема запчастей Case IH 9230 - (50.200.AB[02]) - HVAC HOSES, 8230/9230 T4 (50) - CAB CLIMATE CONTROL
34
10.001.ad
18
6
33
35
28
19
2
10.001.ad
5
36
50.200.aa 02
16
4
50.100.ap 02
8
28
27
33
20
36
9
36
13
50.100.ap 02
18
8
25
11
21
15
16
32
31
19
19
18
7
3
22
12
17
10
14
23
26
29
7
1
33
33
50.100.ap 02
10.500.ad 01
31
18
15
10.500.ad 01
30
36
36
31
24
50.100.ap 02
33

Артикул

Название

Примечание

Количество

1

84397842

A/C HOSE

Suction, 15.9mm ID x 24.5mm OD x 4594mm OAL

1шт.

2

87684281

A/C HOSE

Discharge, 10.5mm ID x 18.4mm OD x 3075mm OAL

1шт.

3

84397843

A/C HOSE

Receiver Drier To Cab, 7.9mm ID x 15.3mm OD x 429mm OAL

1шт.

4

84062500

HOLDER

HVAC Line

1шт.

5

86997298

HEATER HOSE,15.5mm ID x 6200mm OAL

Return, Cut From Bulk, 3.8M OAL

1шт.

6

86997298

HEATER HOSE,15.5mm ID x 6200mm OAL

Supply, Cut From Bulk, 3.82M OAL

1шт.

7

301803R1

SHUT-OFF VALVE

90°, Return/ Supply Line

2шт.

8

87000226

HOSE CLAMP

A/ C Line, 26mm W

7шт.

9

84334474

FITTING,1/2"-14 M x 3/8"-18 Fem

1шт.

10

86997298

HEATER HOSE,15.5mm ID x 6200mm OAL

Return, Cut From Bulk, 370mm OAL

1шт.

11

84607268

SLEEVE

Protective, 105.4mm OD x 400mm OAL

1шт.

12

87105841

BRACKET

Mounting, Receiver Drier

2шт.

13

84399431

A/C HOSE

Receiver Drier To Condenser, 8mm ID x 15.7mm OD x 3326mm OAL

1шт.

14

87105840

RECEIVER-DRYER

1шт.

15

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

16

86981461

FLANGE NUT,M8 x 1.25, Cl 8

7шт.

17

47475783

COOLER ASSY.

A/C / Oil Cooler Combo

1шт.

18

87000223

HOSE CLAMP,22mm ID Static x 15mm W, Spring Type

4шт.

19

529070

CABLE TIE,368.3mm L

5шт.

20

86637999

CLAMP,19mm, Coat, 11.9mm Bolt Hole, P Type

1шт.

21

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

5шт.

22

87000227

SWITCH, A/C HIGH PRE

1шт.

23

86997298

HEATER HOSE,15.5mm ID x 6200mm OAL

Return, Cut From Bulk, 180mm OAL

1шт.

24

300381

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

4шт.

25

87703182

BRACKET

Heater Hose Support, Return

1шт.

26

87703161

BRACKET

Heater Hose Support, Supply

1шт.

27

84283392

UNION TEE

18mm OD x 18mm OD x 26mm OD

1шт.

28

86629542

NUT,M8 x 1.25, Cl 8.8

3шт.

29

86997298

HEATER HOSE,15.5mm ID x 6200mm OAL

Supply, 710mm OAL

1шт.

30

84367016

TEE

Beaded Tube, 5/8"

1шт.

31

9706690

NUT,M8 x 1.25, Cl 8

5шт.

32

87107420

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

15.88mm ID x 41.1mm OD x 26.9mm Thk

1шт.

33

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

13шт.

34

86976974

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

19.05mm ID x 41.1mm OD x 26.9mm Thk

1шт.

35

412650

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.4mm Thk

2шт.

36

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

10шт.

Выбрано товаров: 36
