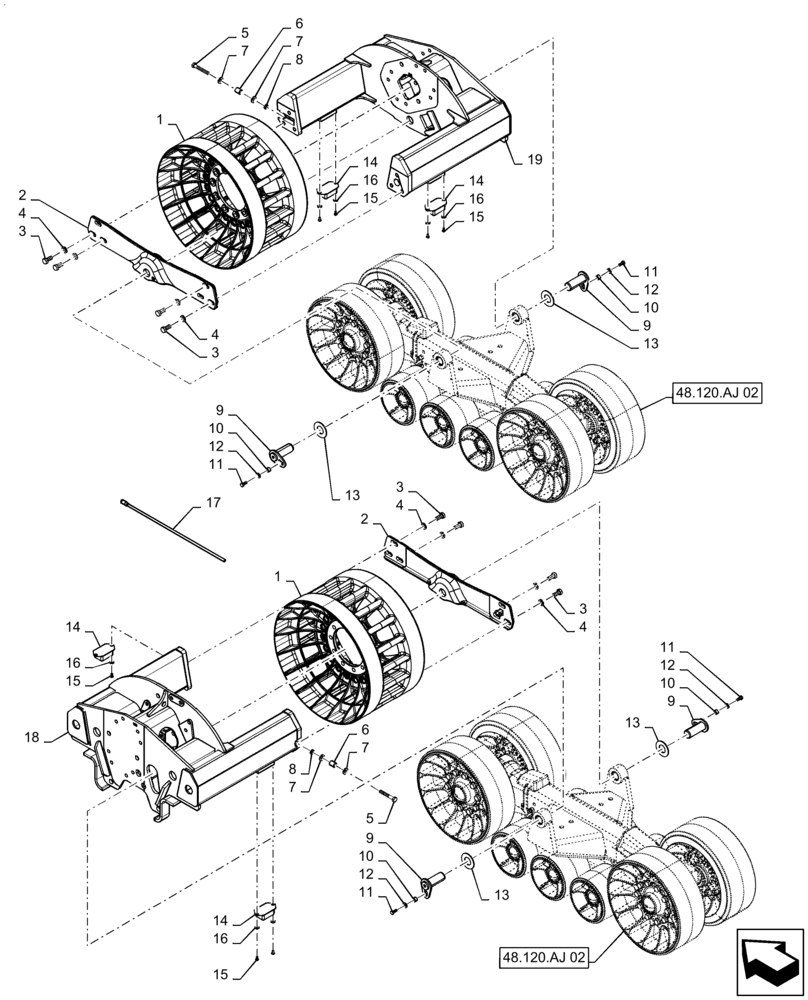

Запчасти Case IH 9230 (48.138.AB[02]) - VAR - 415332 - TRACK ASSY, ROLLER, ATTACHMENT (48) - TRACKS & TRACK SUSPENSION

1

87498856

WHEEL,281.2mm ID x 910mm OD x 523mm W

Track Drive

2шт.

2

87451761

END PLATE

Track Frame

2шт.

3

9780129

BOLT,Hex, M24 x 50mm, Cl 10.9

12шт.

4

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

12шт.

5

87439071

BOLT,Hex, M20 x 2.5 x 130mm, Cl 10.9

2шт.

6

87439070

SPACER

Alignment, 22mm ID x 32mm OD x 39mm Thk

2шт.

7

896-15020

WASHER,22mm ID x 44mm OD x 5mm Thk

4шт.

8

829-4420

THIN NUT,M20 x 2.5, Cl 05

2шт.

9

87423822

PIN,57.06mm OD x 167mm L

Frame, 57.11mm OD

4шт.

10

87423819

SPACER

16.7mm ID x 22.2mm OD x 15mm Thk

4шт.

11

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

4шт.

12

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

13

87423202

THRUST BEARING,58mm ID x 115mm OD x 5mm Thk

4шт.

14

87428948

BUMPER,58mm ID x 115mm OD x 5mm Thk

Rubber, 85mm W

4шт.

15

86836488

HEX SOC SCREW,M12 x 25mm, Cl 12.9

8шт.

16

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

17

31-3183

HOSE

Greasing, 3/8" OD x 36" OAL

1шт.

18

84352064

FRAME

Track, LH

1шт.

19

84352069

FRAME

Track, RH

1шт.
