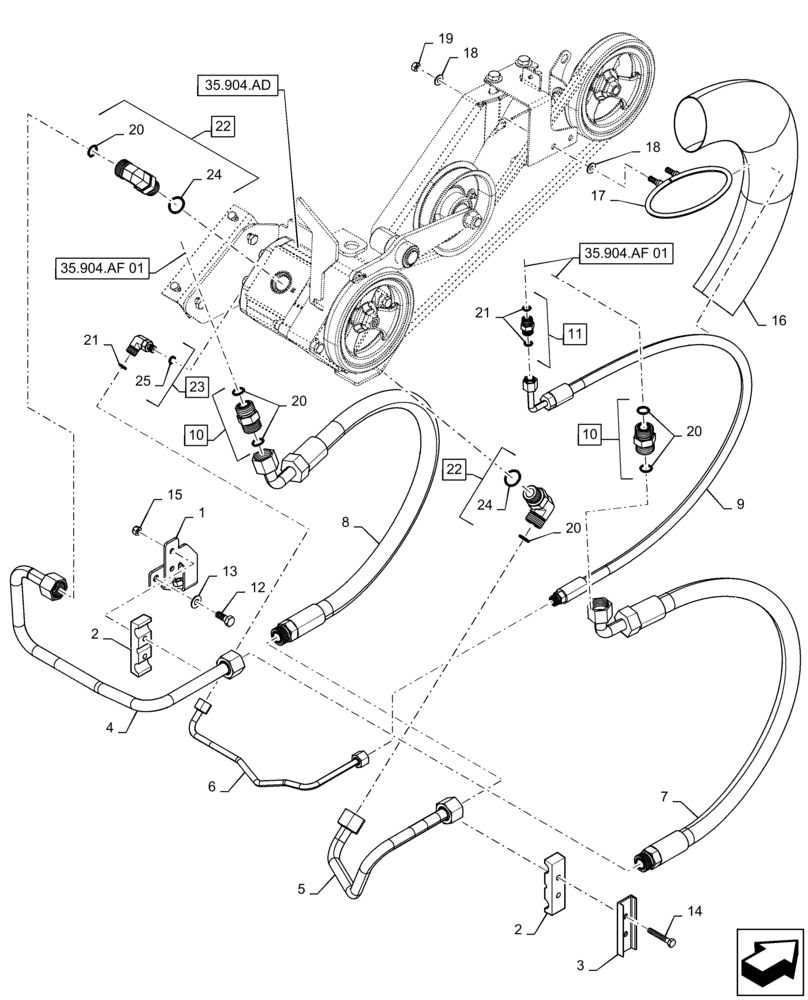

Запчасти Case IH 9230 (35.904.AF[04]) - VAR - 425528 - DRIVE, FAN (35) - HYDRAULIC SYSTEMS

1

84160216

BRACKET

Hose Retainer

1шт.

2

86998883

CLAMP

Hydraulic Tube, 3 Hole

1шт.

3

87000242

CHANNEL

Clamp Backup

1шт.

4

84194810

HYD TUBE,15mm ID x 20mm OD x 330mm OAL

Cleaning Fan Belt Drive Supply

1шт.

5

84194812

HYD TUBE,20.00 mm OD

Cleaning Fan Belt Drive Return

1шт.

6

84251798

HYD TUBE,10 mm OD

Cleaning Fan Belt Drive Drain

1шт.

7

84420289

HYDRAULIC HOSE,19.05mm ID x 1130mm L, SAE 100R17

Cleaning Fan Supply

1шт.

8

84420290

HYDRAULIC HOSE,19.05mm ID x 1080mm L, SAE 100R16

Cleaning Fan Return

1шт.

9

84420291

HYDRAULIC HOSE,9.53mm ID x 1200mm L, SAE 100R16

Cleaning Fan Drain

1шт.

10

84100407

UNION,1-3/16"-12 ORFS

Incl 20

2шт.

11

84431546

UNION,11/16"-16 ORFS

Incl 21

1шт.

12

2975077

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

13

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

14

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

15

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

16

84393760

PROTECTIVE SLEEVE

Hydraulic Hose, Cleaning Fan

1шт.

17

84391654

HOLDER

Cleaning Fan Hoses

1шт.

18

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

19

9706690

NUT,M8 x 1.25, Cl 8

2шт.

20

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

6шт.

21

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

22

86579697

ELBOW,90 Degree, 1-3/16"-12 ORFS x M27 x 2.0 ORB

Incl 20, 24

2шт.

23

86580178

ELBOW,90 Deg, 11/16-16 ORFS x M12 x 1.5 ORB

Incl 21, 25

1шт.

24

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

25

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.
