Запчасти Case IH 9230 (35.220.AA[02]) - VAR - 425464, 425362 - HYDRAULIC PUMP, FEEDER (35) - HYDRAULIC SYSTEMS

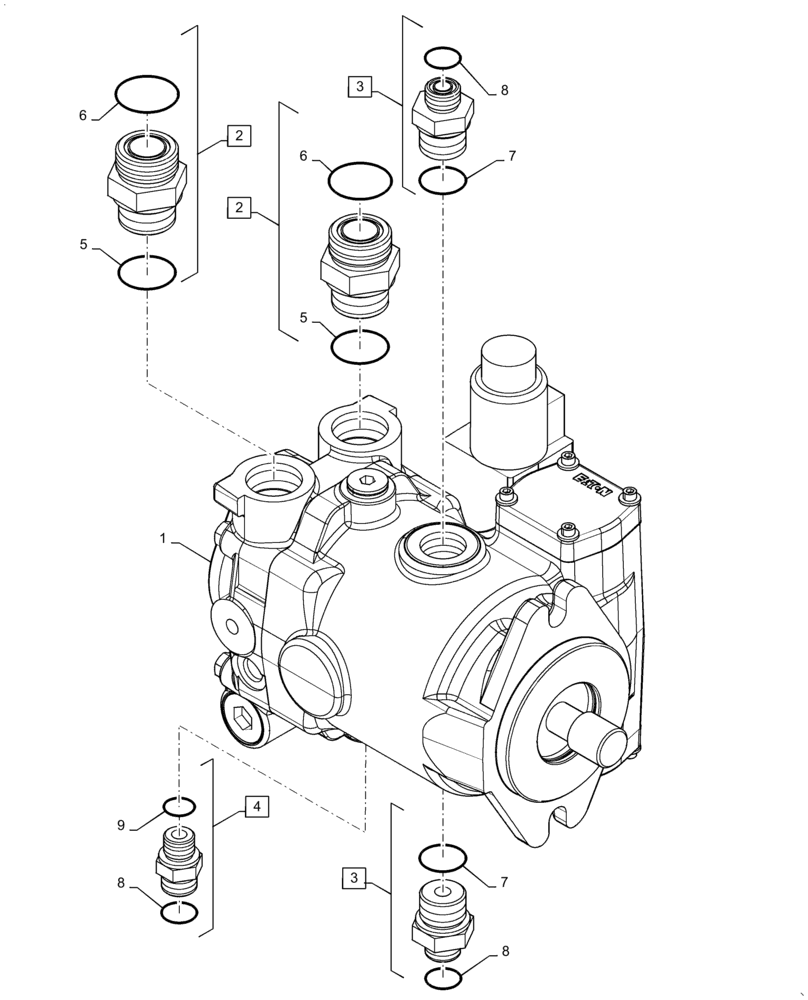

Схема запчастей Case IH 9230 - (35.220.AA[02]) - VAR - 425464, 425362 - HYDRAULIC PUMP, FEEDER (35) - HYDRAULIC SYSTEMS
1
2
5
8
6
7
3
4
6
8
8
3
2
9
5
7

Артикул

Название

Примечание

Количество

1

86638314

HYDRAULIC PUMP,40.6 CC

Variable, Feeder

1шт.

1

86638314R

REMAN-HYD PUMP

Variable, Feeder

1шт.

1

86638314C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

86580179

HYD CONNECTOR,1-7/16" - 12 ORFS x M33 x 2 ORB

Incl 5 - 6

2шт.

3

86597761

HYD CONNECTOR,13/16"-16 ORFS x M27 x 2.0 ORB

Incl 7 - 8

2шт.

4

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

Incl 8 - 9

1шт.

5

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

6

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

7

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

8

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

9

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

Выбрано товаров: 11
