Запчасти Case IH 9230 (35.106.AO[03]) - HYDRAULIC SYSTEM, PTO, 3 (35) - HYDRAULIC SYSTEMS

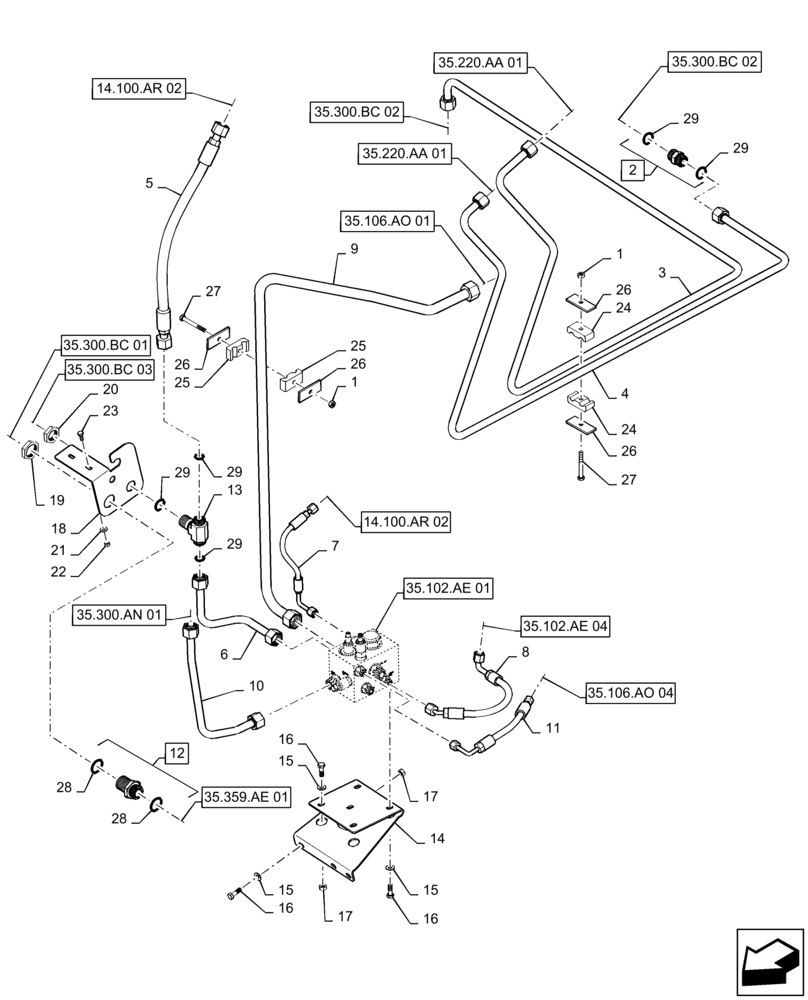

Схема запчастей Case IH 9230 - (35.106.AO[03]) - HYDRAULIC SYSTEM, PTO, 3 (35) - HYDRAULIC SYSTEMS
3
16
14
26
35.106.ao 01
15
35.106.ao 04
10
35.300.bc 03
14.100.ar 02
12
16
5
24
19
35.102.ae 04
15
1
35.220.aa 01
15
35.300.an 01
8
4
26
29
27
28
35.220.aa 01
2
29
23
17
35.102.ae 01
26
21
22
13
16
9
29
1
35.300.bc 02
35.359.ae 01
14.100.ar 02
17
35.300.bc 01
27
7
24
18
20
26
35.300.bc 02
29
28
11
29
6
25
25

Артикул

Название

Примечание

Количество

1

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

2

84100407

UNION,1-3/16"-12 ORFS

Incl 29

1шт.

3

84423512

HYD TUBE

Spreader Pressure

1шт.

4

84423515

HYD TUBE

Cleaning Fan Press, 15mm ID x 20mm OD x 584mm OAL

1шт.

5

84158714

HOSE ASSY.,15.88mm ID x 630mm L, SAE 100R17

Unload Auger Clutch Valve, 15mm ID x 20mm OD x 659mm OAL

1шт.

6

87281692

HYD TUBE,0.75" OD

Lube Regulator, Supply to Valve

1шт.

7

84158715

HOSE ASSY.

PTO Gearbox, 6.3mm ID x 350mm OAL

1шт.

8

84176035

HOSE ASSY.

Lube Supply to Rotor Clutch, 10mm ID x 380mm OAL

1шт.

9

84317288

HYD TUBE

PTO Regulator Valve Bypass

1шт.

10

87663046

HYD TUBE,.75" OD

Lube RV To Filter

1шт.

11

84218078

HYDRAULIC HOSE

Hyd A Regulator Valve To Clutches

1шт.

12

86639060

UNION,1-7/16"-12 ORFS, Bulkhead

Incl 28

1шт.

13

86900241

TEE,1-7/16"-12 ORFS, Bulkhead

1шт.

14

87284344

BRACKET

Mounting, Hydraulic Valve

1шт.

15

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

16

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

8шт.

17

100016

NUT,M10 x 1.5, Cl 8

5шт.

18

87001274

BRACKET

Mounting, Bulkhead

1шт.

19

86639084

BHD LOCK NUT,1-7/16"-12, ORFS, Bulkhead

1шт.

20

86639062

BHD LOCK NUT,1-3/16"-12 ORFS, Bulkhead

1шт.

21

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

22

9706690

NUT,M8 x 1.25, Cl 8

2шт.

23

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

24

87000140

CLAMP,Tube, 19.05mm

Hydraulic Tube, 19.05mm ID x 19.05mm ID x 67mm OAL x 30mm Thk

1шт.

25

87000142

CLAMP,2 Hoses

Hydraulic Tube, 25.4mm ID x 9.52mm ID x 67mm OAL x 30mm Thk

1шт.

26

87000230

PLATE

Hose Clamp, 9mm ID x 65mm OAL x 30mm Thk

4шт.

27

300510

BOLT,Hex, M8 x 65mm, Cl 8.8

2шт.

28

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

29

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

Выбрано товаров: 29
