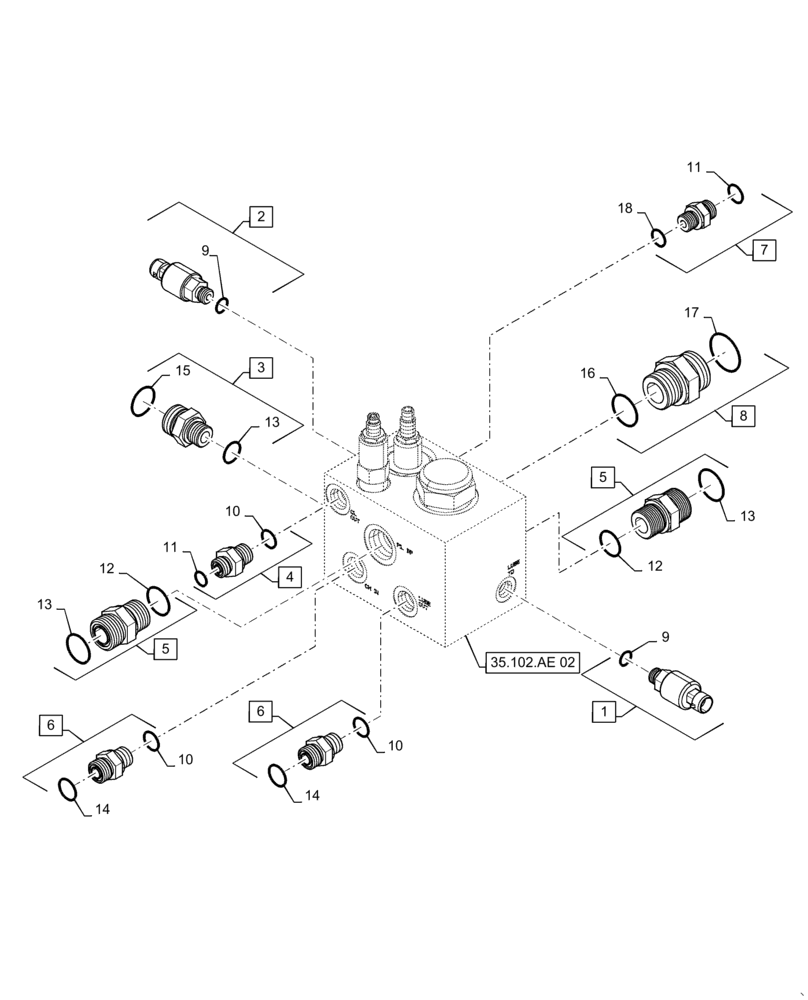

Запчасти Case IH 9230 (35.102.AE[01]) - MANIFOLD, PRESSURE CONTROL VALVE (35) - HYDRAULIC SYSTEMS

1

87280944

PRESSURE SWITCH

Lube, Incl 9

1шт.

2

87693034

SENSOR

Clutch Pressure, M14 x 1.5, Incl 9

1шт.

3

86579681

HYD CONNECTOR,1-3/16"-12 ORFS x M22 x 1.5 ORB

Incl 13, 15

1шт.

4

86579673

HYD CONNECTOR,11/16" - 16 ORFS x M18 x 1.5 ORB

Incl 10 - 11

1шт.

5

86579682

HYD CONNECTOR,1-3/16" - 12 ORFS x M27 x 2 ORB

Incl 12 - 13

2шт.

6

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

Incl 10, 14

2шт.

7

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

Incl 11, 18

1шт.

8

86580179

HYD CONNECTOR,1-7/16" - 12 ORFS x M33 x 2 ORB

Incl 16 - 17

1шт.

9

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

10

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

3шт.

11

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

12

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

13

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

14

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

15

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

16

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

17

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

18

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.
