Запчасти Case IH 9230 (33.202.BT) - HYDRAULICS BRAKE CONTROL LINES (33) - BRAKES & CONTROLS

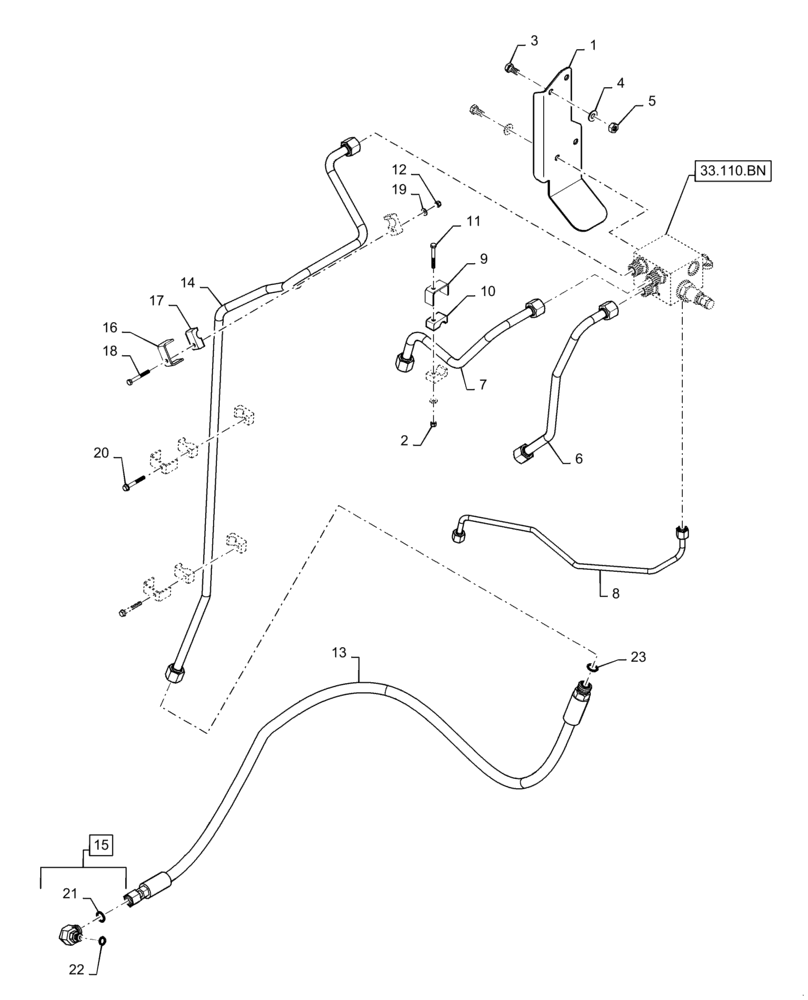

Схема запчастей Case IH 9230 - (33.202.BT) - HYDRAULICS BRAKE CONTROL LINES (33) - BRAKES & CONTROLS
11
12
22
18
9
33.110.bn
19
21
15
3
1
10
20
14
6
7
4
23
2
5
16
17
13
8

Артикул

Название

Примечание

Количество

1

84346086

BRACKET

Brake Valve Mount

1шт.

2

353308

NUT,M6 x 1.0, Cl 8

1шт.

3

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

4шт.

4

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

5

100016

NUT,M10 x 1.5, Cl 8

2шт.

6

84325017

HYD TUBE

Park/Reg Valve Supply

1шт.

7

84325015

HYD TUBE

Park/Reg Drain

1шт.

8

84325013

HYD TUBE

Regulated Pressure

1шт.

9

87000159

CLAMP

Tube Retention

1шт.

10

72180326

PLATE

Tube Isolator

2шт.

11

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

1шт.

12

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

13

87280111

HOSE

Park Brake Supply

1шт.

14

84325011

HYD TUBE

Park Brake Work, Incl 21, 22

1шт.

15

86579689

ELBOW,90 Degree, 13/16" - 16 ORFS x M14 x 1.5 ORB

1шт.

16

430356

CLAMP

Tube Retention

6шт.

17

84814948

SUPPORT

Tube Isolator

3шт.

18

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

1шт.

19

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

20

87028761

SELF-TAP SCREW,6.3mm OD x 1.8 x 50mm

2шт.

21

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

22

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

23

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

Выбрано товаров: 23
