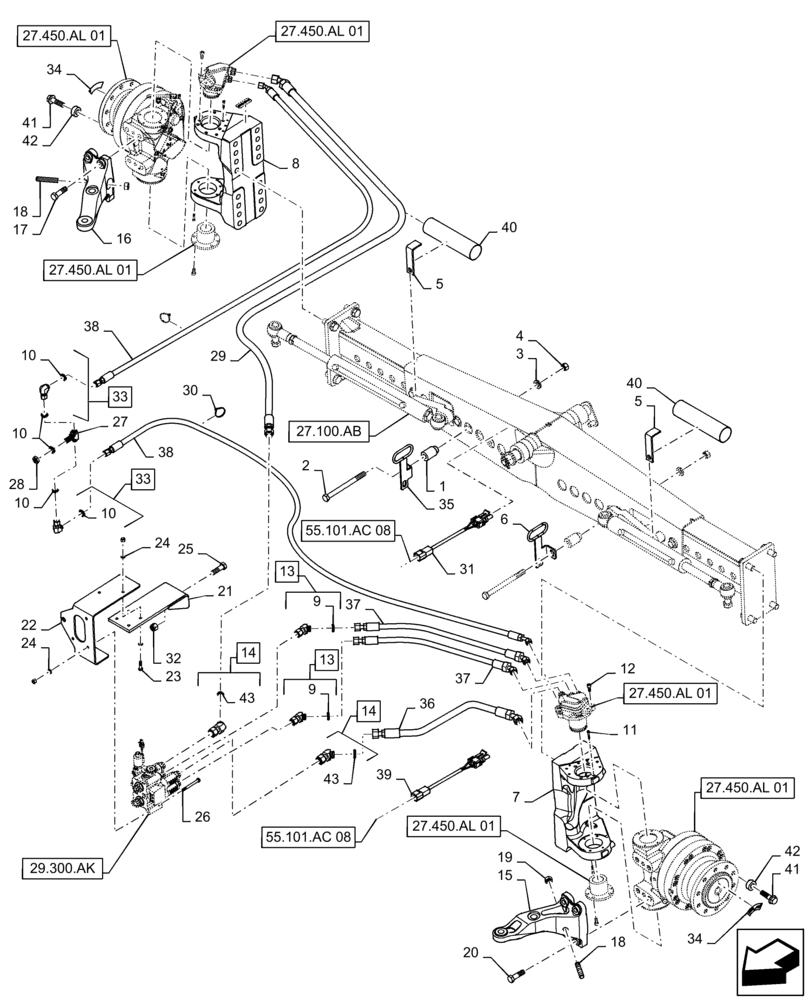

Запчасти Case IH 9230 (29.300.AP[01]) - VAR - 425163, 425164 - HYDRAULIC SYSTEM, REAR AXLE PGA (29) - HYDROSTATIC DRIVE

1

84334527

BUSHING

Reducer, 21mm ID x 45mm OD to 32.3mm OD x 74mm L

2шт.

2

86509730

BOLT,Hex, M20 x 240mm, Cl 8.8

2шт.

3

9850384

WASHER,23mm ID x 40mm OD x 6mm Thk

12шт.

4

84100564

LOCK NUT,M20

12шт.

5

87281646

BRACKET

PRA Hose Guide

2шт.

6

87281645

GUIDE

PRA Hoses

1шт.

7

87281647

FRAME

LH, PRA Motor

1шт.

8

87281648

FRAME

RH, PRA Motor

1шт.

9

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

10

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

6шт.

11

9515561

HEX SOC SCREW,M6 x 35mm, Cl 12.9

16шт.

12

86508097

HEX SOC SCREW,M10 x 25mm, Cl 12.9, Full Thd

18шт.

13

84214050

45 ELBOW,1" - 14 Male ORFS x 1" - 14 Female ORFS

Hydraulic, 16mm, Incl 9

2шт.

14

84214051

45 ELBOW,1-3/16"-12 ORFS x 14mm

Hydraulic, 20mm, Incl 10

2шт.

15

47524675

BRACKET

LH, PRA Steer

1шт.

16

47524676

BRACKET

RH, PRA Steer

1шт.

17

412641

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

8шт.

18

47527641

SET SCREW

2шт.

19

9848973

NUT,M24 x 3.0, Cl 10

2шт.

20

412641

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

5шт.

21

9512254

BRACKET

Valve Support

1шт.

22

87281651

BRACKET

Valve Mount

1шт.

23

43248

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9

2шт.

24

140017

WASHER,M10 x 20mm OD x 2mm Thk

7шт.

25

281074

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

2шт.

26

43253

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

3шт.

27

86639082

TEE,13/16"-16 ORFS, Blkhd Br

1шт.

28

86639083

BHD LOCK NUT,13/16"-16 ORFS, Bulkhead

1шт.

29

84474966

HYDRAULIC HOSE,19.05mm ID x 1676.4mm L, SAE 100R15

RH, PRA Forward

1шт.

30

86566989

CABLE TIE,208mm L

6шт.

31

87283382

WIRE HARNESS

2 - Speed PRA to Main Harness Cab, 25.5' L

1шт.

32

280375

NUT,3/4"-10, GC

2шт.

33

84989383

90 ELBOW,90 Degree, 13/16"-16 ORFS x 13/16"-16 Fem Sw

Incl 10

2шт.

34

87108689

DEFLECTOR

PRA Wheel Bolt Torque

2шт.

35

87283481

GUIDE

PRA Hose Routing

1шт.

36

84474965

HYDRAULIC HOSE,19.05mm ID x 1562.1mm L, SAE 100R15

LH, PRA Forward

1шт.

37

84474967

HYDRAULIC HOSE,15.88mm ID x 1651mm L, SAE 100R15

PRA Reverse

2шт.

38

87281009

HYDRAULIC HOSE,7.92mm ID x 1955.8mm L

PRA Case Drain

2шт.

39

84807867

WIRE HARNESS

Valve to Lower Frame Harness, 32" L

1шт.

40

84474963

TUBE

Cordura Shield

2шт.

41

87035472

FLANGE BOLT,Hex Flg, M20 x 1.5 x 70, Cl 10.9

20шт.

42

87281709

SPACER,.81" ID x 1.75" OD x .79" L

Wheel Bolt, 0.81" ID x 1.75" OD x 0.79" L

20шт.

43

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.
