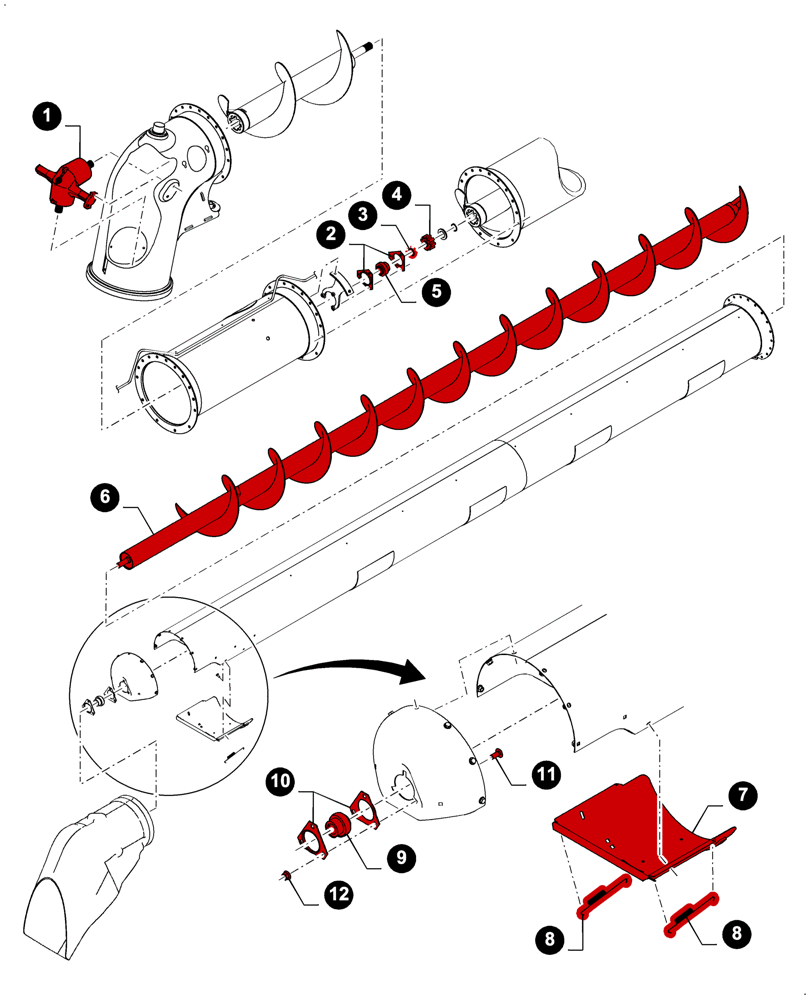

Запчасти Case IH 9230 (05.100.04[J18]) - 7230 8230 9230 - MAINTENANCE PARTS, UNLOADING AUGER (05) - SERVICE & MAINTENANCE

1

87331084

GEARBOX

1шт.

2

86620026

FLANGED BEARING

2шт.

3

370004

SNAP RING,M35 x 1.5mm Thk, External

2шт.

4

87011705

HUB,21T

1шт.

5

87605590

BEARING ASSY,35mm ID x 72mm OD x 19mm W

1шт.

6

84447941

AUGER,5400.5mm L

1шт.

STANDARD WEAR AND PERFORATED

1шт.

6

87280339

AUGER,5400.5mm L

1шт.

EXTENDED WEAR

1шт.

7

84552506

DOOR

1шт.

8

1338869C2

SPRING,162mm Free Length

2шт.

9

87044350

BEARING ASSY,30mm ID x 62mm OD x 18mm W

1шт.

10

86548970

FLANGED BEARING

2шт.

11

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

2шт.

12

86050279

FLANGE NUT,M10 x 1.5, Cl 10

2шт.
