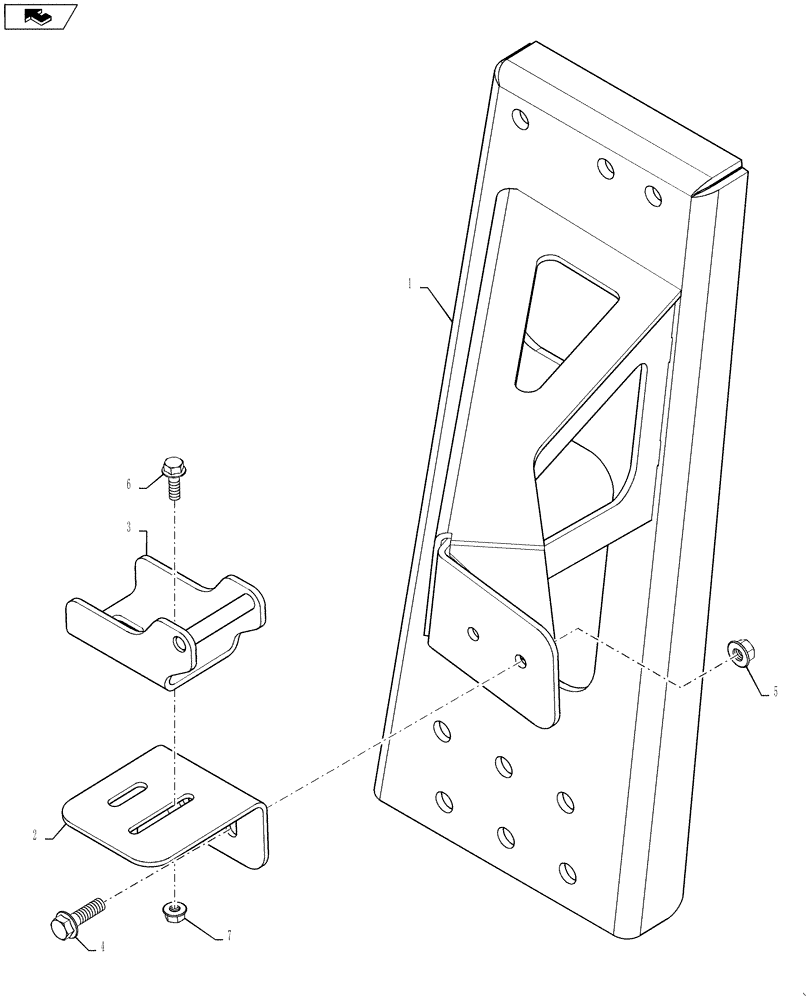

Запчасти Case IH 9230 (90.404.15[01]) - SUPPORT, LH REAR SHIELD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84381725

CRADLE

1шт.

2

84386382

SUPPORT

1шт.

3

87475017

BRACKET

1шт.

4

87698838

FLANGE BOLT,M10 x 35mm, Full Thd, Cl 10.9

2шт.

5

86050276

BOLT,Hex, M5 x 16mm, Cl 8.8, Full Thd

2шт.

6

87698833

BOLT,M8 x 33.1mm, Cl 10.9

3шт.

7

86507066

FLANGE NUT,M8 x 1.25, Cl 10

3шт.
