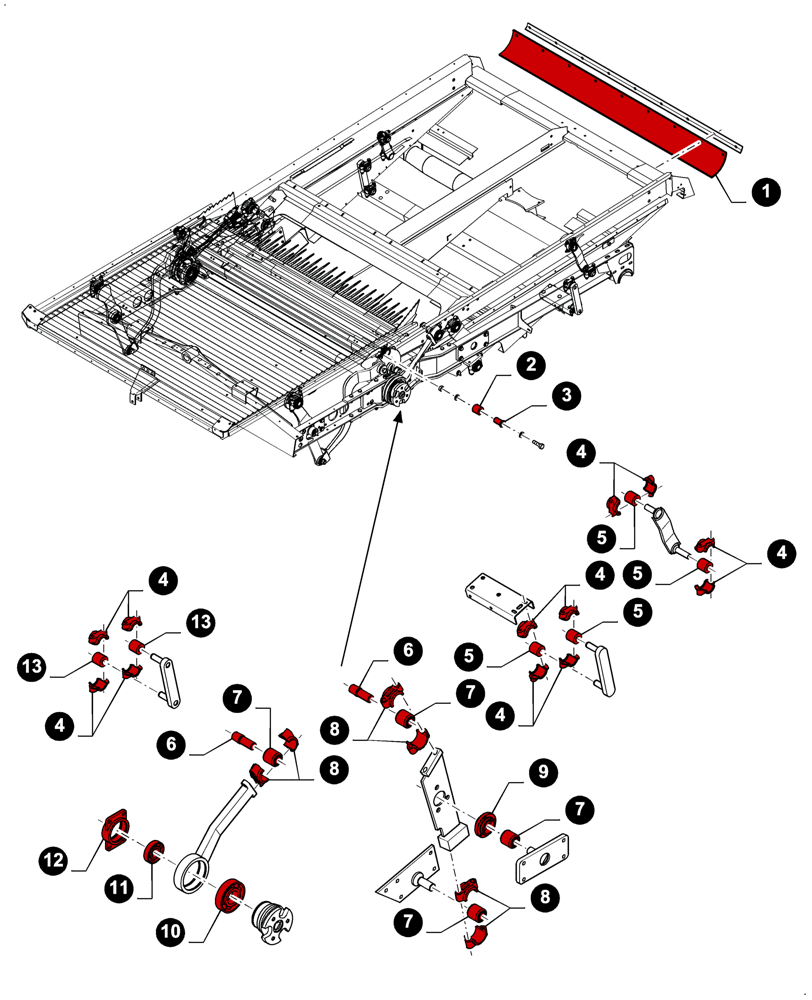

Запчасти Case IH 9230 (05.100.04[J14]) - 7230 8230 9230 - MAINTENANCE PARTS, SHAKER SHOE (05) - SERVICE & MAINTENANCE

1

87325651

SEAL,125mm W x 1310mm L

1шт.

FOR 7230 ONLY

1шт.

1

87318656

SEAL,135mm W x 1570mm OAL

1шт.

FOR 8230 AND 9230 ONLY

1шт.

2

338222

RUBBER BUSHING,21mm ID x 40mm OD x 38mm L

2шт.

3

84052651

BUSHING,16.2mm ID x 35mm OD x 52mm L

2шт.

4

320033

BEARING HALF

1шт.

5

84000052

RUBBER BUSHING,14mm ID x 40mm OD x 38mm L

1шт.

6

84037184

SHAFT,33mm OD x 96mm L

1шт.

7

84459072

RUBBER BUSHING,28mm ID x 52mm OD x 54mm L

1шт.

8

84446877

BEARING HOUSING

1шт.

9

9811082

BUSHING,52mm ID

1шт.

10

87315721

BALL BEARING,100mm ID x 150mm OD x 24mm W

2шт.

11

913716

BALL BEARING,40mm ID x 90mm OD x 23mm W

2шт.

12

84320474

BEARING HOUSING

2шт.

13

87391745

RUBBER BUSHING,19mm ID x 42.7mm OD x 40mm L

4шт.
