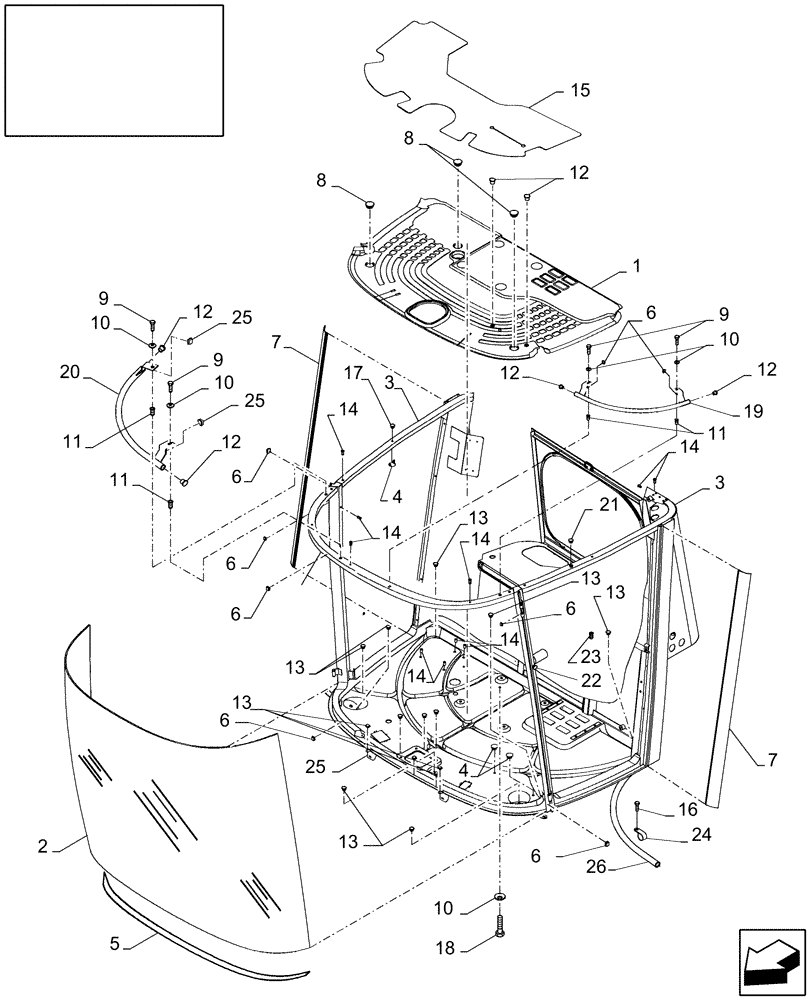

Запчасти Case IH 9230 (90.150.01) - CAB FRAME (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87373334

FLOOR MAT

1шт.

2

84059822

WINDSHIELD

1шт.

3

NS

NOT SERVICED

Frame

1шт.

3

84523990

CAB

Complete; Incl Refs 1 Thru 27, Plus Seat, A/C Unit, Steering Column, Std Lights, Mirrors, Windshield Washer, Air Filter, CCM Electronic Units, Touch Screen Display, CD Radio, ETC

1шт.

4

84440697

PLUG,M16

4шт.

5

87012018

RUBBER WEATHERSTRIP

1шт.

6

87012019

RUBBER STRIP

19шт.

7

87019749

RUBBER SEAL,1520mm L

2шт.

8

84067943

PLUG,M52

3шт.

9

412479

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

4шт.

10

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

11

87282347

THREADED INSERT,M8

6шт.

12

87280507

PLUG,M21

6шт.

13

87283846

TAPE

24шт.

14

87106208

THREADED INSERT,M6

24шт.

15

NS

NOT SERVICED

Cardboard Covering From Manufacturing

2шт.

16

87016553

SELF-TAP SCREW,Hex Hd, M4.8 x 19

2шт.

17

87284526

RIVET

Insert, Threaded - M10

2шт.

18

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

19

87001000

HANDRAIL

L.H.

1шт.

20

87000998

HANDRAIL

R.H.

1шт.

21

87106212

GROMMET,M10 x 16

1шт.

22

87399150

GROMMET

Inserted Into Frame Tab For Safety Chain

2шт.

23

84438912

THREADED INSERT,M4 x 0.7

15шт.

24

237910

WIRE CLAMP,7.9mm, Coat, 7.1mm Bolt Hole, P Type

2шт.

25

9818501

PLUG,Sq, Plastic

6шт.

26

84037518

HOSE

Cab Molding

5шт.

27

87280886

FITTING

1шт.
