(90.124.02) - SEAT, OPERATOR

Запчасти Case IH 9230 (90.124.02) - SEAT, OPERATOR (90) - PLATFORM, CAB, BODYWORK AND DECALS

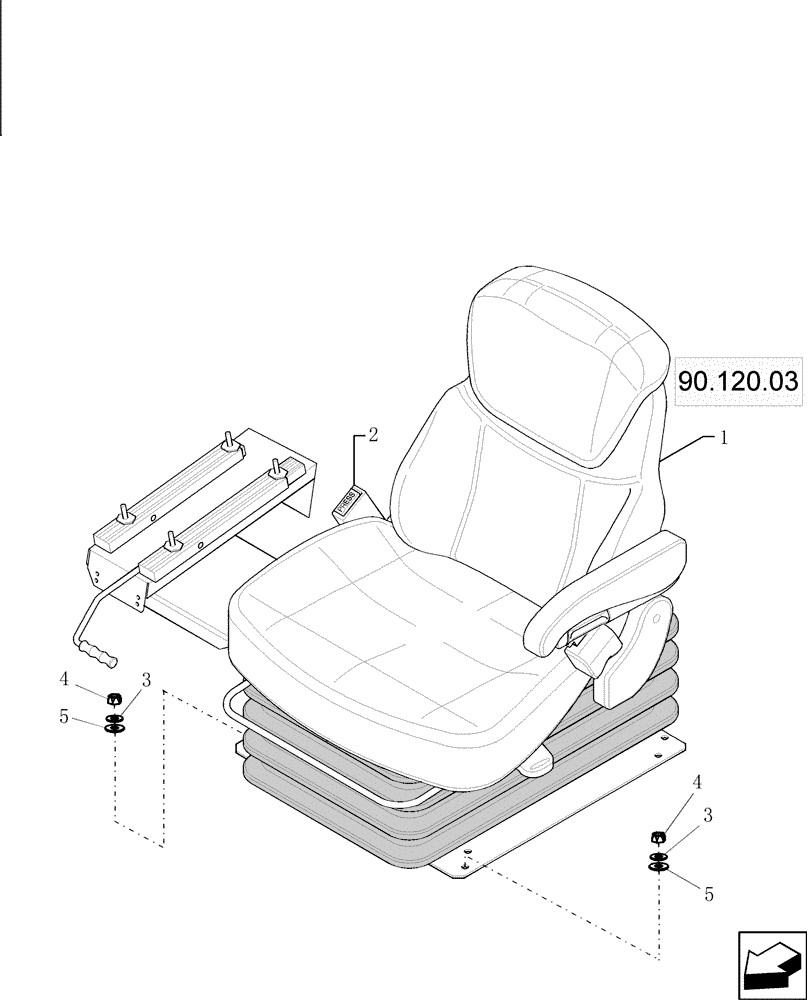

Схема запчастей Case IH 9230 - (90.124.02) - SEAT, OPERATOR (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
2
5
4
90.120.03
3
4
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87724614

SEAT ASSY.

Complete, Wheat

1шт.

1

87724615

SEAT

Complete, Heated Red Leather

1шт.

2

84120502

KIT

Seat Belt

1шт.

3

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

4

832-46408

NUT,M8 x 1.25, Cl 8

4шт.

5

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

4шт.

Выбрано товаров: 6
