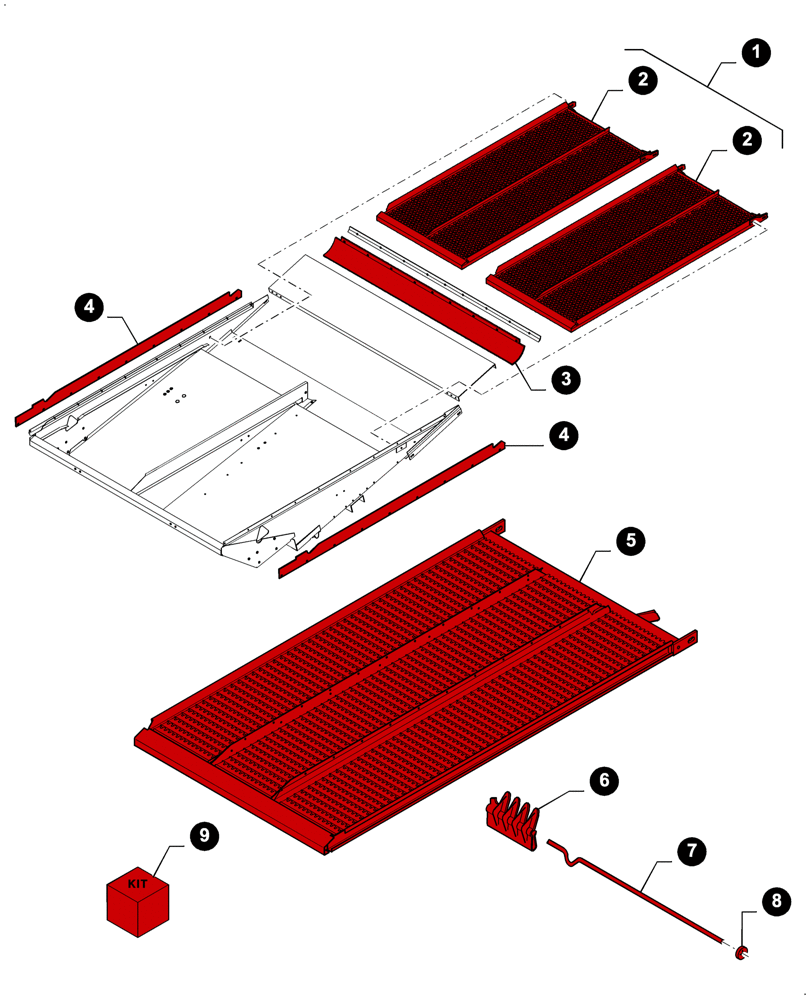

Запчасти Case IH 9230 (05.100.04[J12]) - 7230 8230 9230 - MAINTENANCE PARTS, LOWER SIEVES (05) - SERVICE & MAINTENANCE

1

742135

DIA KIT, HARVESTER

Frame - Blank

1шт.

1

9560147

ROUNDHOLE SIEVE

D= 16 mm

1шт.

1

9560148

ROUNDHOLE SIEVE

D= 18 mm

1шт.

1

84084507

SIEVE

D= 2.5 mm

1шт.

1

84084511

SIEVE

D= 10 mm

1шт.

2

740819

FRAME

2шт.

2

9500737

SIEVE

2шт.

2

9500738

SIEVE

2шт.

2

86975821

SIEVE

Kit - Round Hole - D= 2.5 mm

2шт.

2

86975827

SIEVE

Kit - Round Hole - D= 10 mm

2шт.

3

87105832

CANVAS,250mm W x 1585mm OAL

Seal

1шт.

4

87585352

CANVAS,90mm W x 1985mm OAL

Seal

2шт.

5

84320021

SIEVE

Part is Not Remote Ready, Incl. 6 - 8

2шт.

GRAIN - 1-1/8" - PAINTED

1шт.

5

84400473

SIEVE

Part is Not Remote Ready

2шт.

CLOSZ - 1-5/8" - PAINTED

1шт.

5

87109850

SIEVE

Part is Not Remote Ready

2шт.

CLOSZ - 1-5/8" - GALVANIZED

1шт.

6

445571

BAR

L= 240 mm

47шт.

CLOSZ - 1-1/8"

1шт.

6

481730

BAR

L= 230 mm

94шт.

CLOSZ - 1-1/8"

1шт.

6

445571

BAR

L= 240 mm

235шт.

CLOSZ - 1-1/8"

1шт.

7

453189

WIRE

L= 766 mm

47шт.

7

428728

RETAINING WIRE

L= 1298 mm

47шт.

8

398561

CLIP

1шт.

9

84084326

DIA KIT, HARVESTER

Sieve Kit

1шт.

9

84084328

DIA KIT, HARVESTER

Sieve Kit

1шт.
