Запчасти Case IH 9230 (90.120.03) - SEAT COMPONENTS, OPERATOR (90) - PLATFORM, CAB, BODYWORK AND DECALS

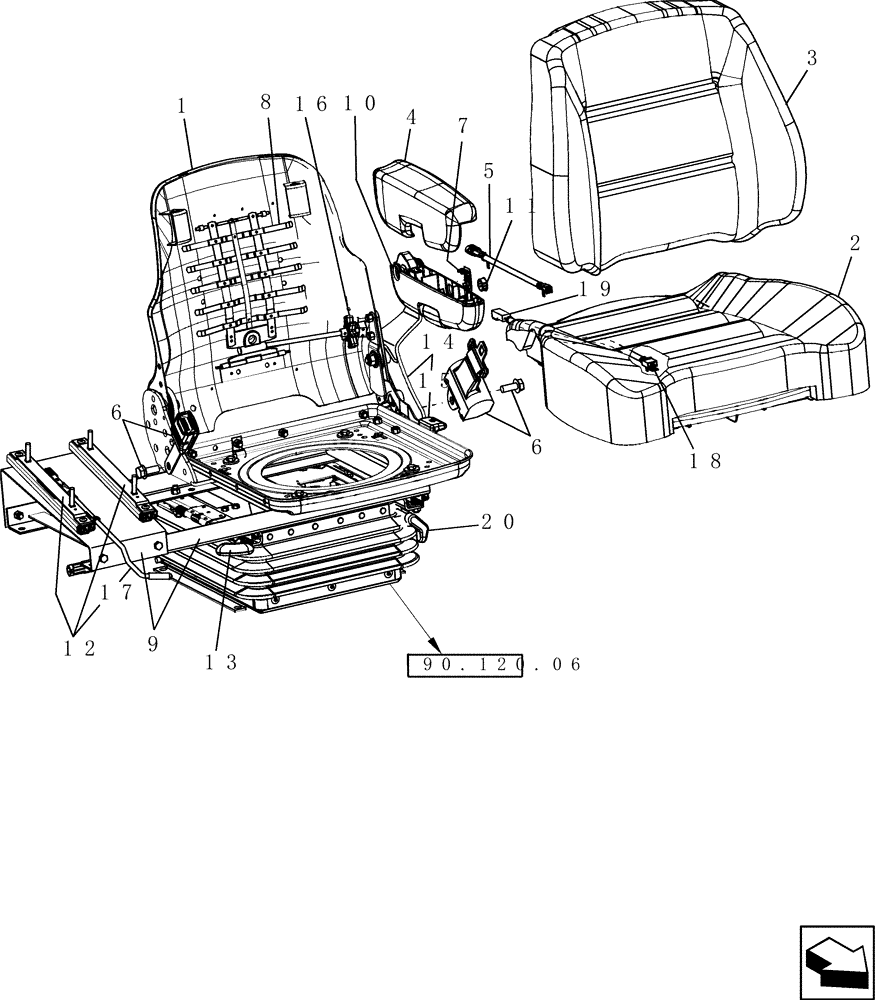

Схема запчастей Case IH 9230 - (90.120.03) - SEAT COMPONENTS, OPERATOR (90) - PLATFORM, CAB, BODYWORK AND DECALS
14
13
6
10
5
11
15
3
8
18
90.120.06
1
12
17
16
19
7
20
6
2
4
9

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Shell, Seat

1шт.

2

84120473

SEAT CUSHION

Bottom, Wheat; Incl Harness

1шт.

2

87749241

SEAT CUSHION

Bottom, Red Leather, Heated, Incl Harness

1шт.

3

84120474

CUSHION

Seat, Back, Wheat

1шт.

3

87397614

SEAT CUSHION

Seat, Back, Rear Leather

1шт.

4

NSS

NOT SOLD SEPARAT

Pad, L.H. Armrest

1шт.

5

84203621

WIRE HARNESS

Operator Presence Jumper

1шт.

6

84120502

KIT

Seat Belt; Incl Belt, Receiver, & Hardware

1шт.

7

NSS

NOT SOLD SEPARAT

Plug

1шт.

8

87308130

SEAT BACK ADJUST DEV

Kit, Lumbar Support

1шт.

9

84120503

KIT

Frame, R.H. Console; Incl Plate, Support, & Hardware

1шт.

10

84120494

ARMREST

Kit, L.H.; Incl Armrest Bottom, Adjusting Knob/Shaft, & Hardware

1шт.

11

NSS

NOT SOLD SEPARAT

Plug

1шт.

12

84120504

KIT

R.H. Console Slide; Incl Slides, Handle, & Mounting Hardware

1шт.

13

84120499

KIT

Seat Slide; Incl Slides, Handle, & Mounting Hardware

1шт.

14

86994165

SEAT ACCESSORY

Kit, Recliner; Incl Lever, Latch, Knob, & Hardware

1шт.

15

87416475

KNOB

1шт.

16

87037462

SEAT BACK ADJUST DEV

1шт.

17

84120505

KIT

Console Lever; Incl Lever, Cap, & Hardware

1шт.

18

86400227

SWITCH,Two Connectors, 90° Terminals

Operator Presence

1шт.

19

87568463

WIRE HARNESS

OP

1шт.

20

84244765

SERVICE KIT

Isolator Latch

1шт.

Выбрано товаров: 22
