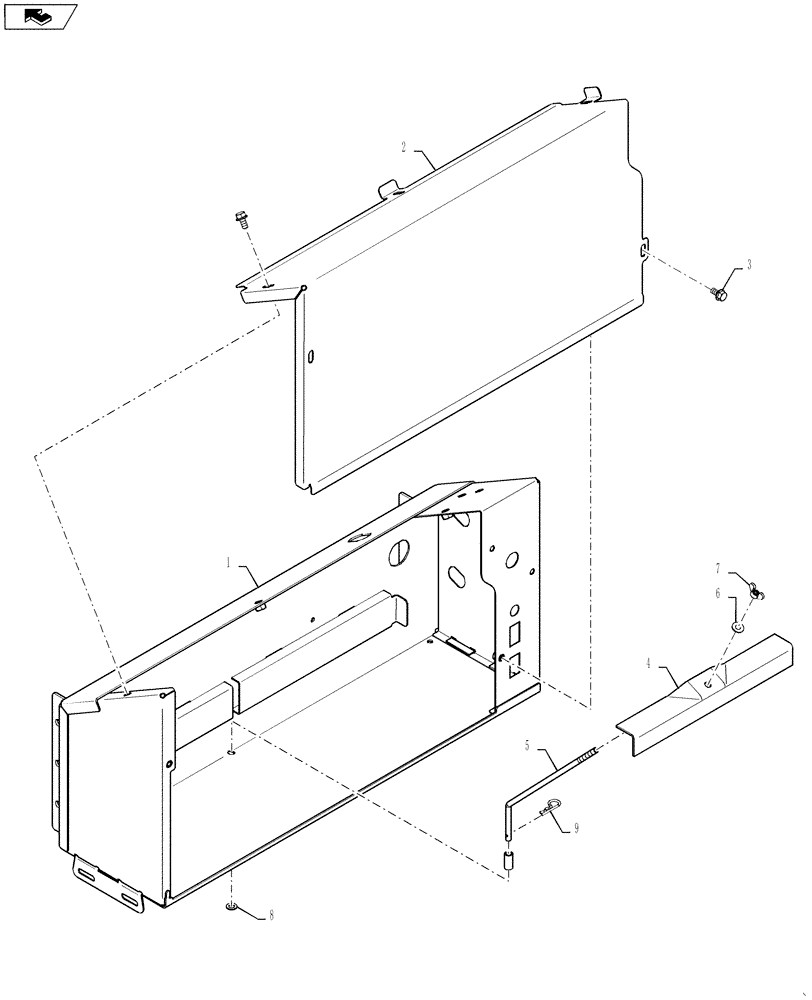

Запчасти Case IH 9230 (90.119.02) - BATTERY BOX, COMPONENTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84264230

BATTERY TRAY

1шт.

2

84267553

DOOR PANEL

1шт.

3

87681207

BOLT,M8 x 24.1mm, Cl 10.9

5шт.

4

87109059

BRACKET

1шт.

5

84319485

ROD

1шт.

6

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

7

100005

WING NUT,M8

1шт.

8

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

9

216698

COTTER PIN,0.125" OD x 1.75" L

1шт.
