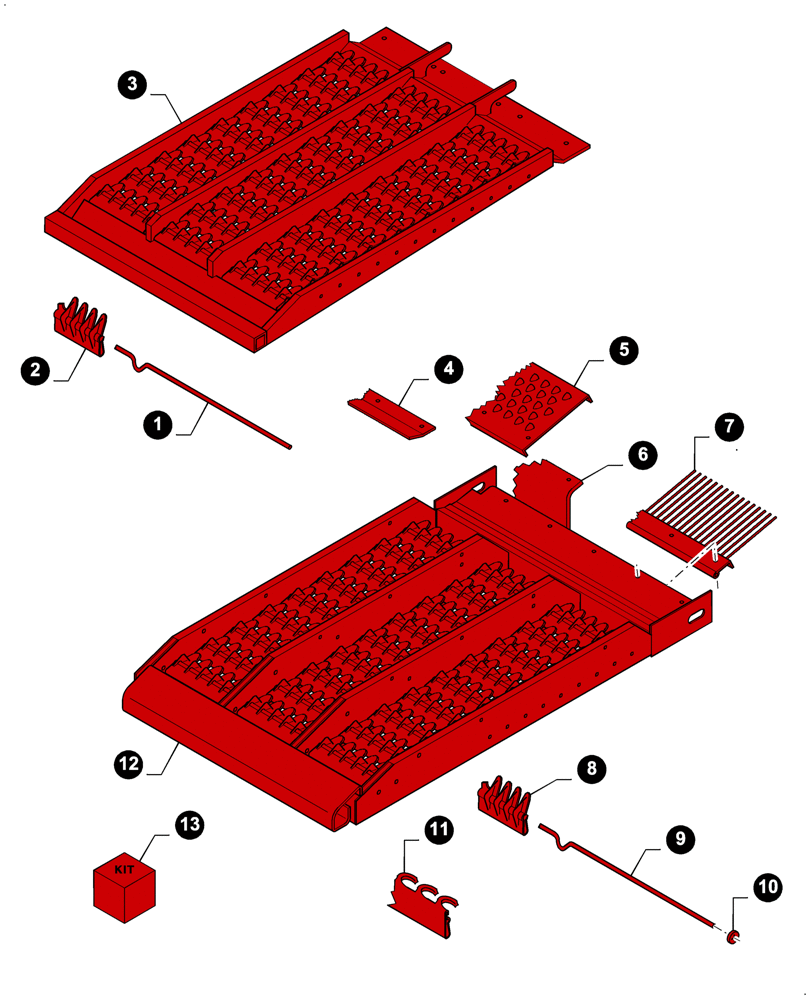

Запчасти Case IH 9230 (05.100.04[J11]) - 7230 8230 9230 - MAINTENANCE PARTS, PRE-SIEVES & UPPER SIEVES (05) - SERVICE & MAINTENANCE

1

452791

RETAINING WIRE

20шт.

2

481730

BAR

L= 230 mm

40шт.

2

445571

BAR

L= 240 mm

80шт.

2

87281019

BAR

L= 233 mm

28шт.

FOR GALVANIZED CORN SLATS ONLY

1шт.

2

87281020

BAR

L= 240.5 mm

56шт.

FOR GALVANIZED CORN SLATS ONLY

1шт.

3

87109817

GRAIN SIEVE

Incl. 1, 2

1шт.

1-1/8" - GALVANIZED

1шт.

3

84076561

SIEVE

Incl. 1, 2

1шт.

1-1/8" - PAINTED

1шт.

3

87105820

SIEVE

Incl. 1, 2

1шт.

CLOSZ 1-5/8"

1шт.

3

87109826

SIEVE

Incl. 1, 2

1шт.

CLOSZ 1-5/8" - GALVANIZED

1шт.

3

87109821

SIEVE,1-5/8"

Incl. 1, 2

1шт.

CORN - GALVANIZED SLATS

1шт.

3

84432132

SIEVE

Incl. 1, 2

1шт.

CORN - HC 1-5/8", PAINTED, EU ONLY

1шт.

3

84050436

DIA KIT, HARVESTER

Incl. 1, 2

1шт.

HC 1-5/8", GALVANIZED, EU ONLY

1шт.

4

84100993

PLATE

2шт.

5

453266

SIEVE EXTENSION

Optional Graepel Sieve Extension - 784 mm Long

2шт.

5

430384

PLATE

Optional Graepel Sieve Extension - 1316 mm Long

1шт.

6

84320875

SEAL,300mm W x 764mm OAL

1шт.

7

84100961

RAKE,151mm L

2шт.

8

445569

BAR,HC 1-1/8" X 240mm overall length

L= 240 mm

47шт.

HC 1-1/8"

1шт.

8

324715

BAR,HC 1-1/8" x 230mm overall length

L= 230 mm

94шт.

HC 1-1/8"

1шт.

8

445569

BAR,HC 1-1/8" X 240mm overall length

L= 240 mm

235шт.

HC 1-1/8"

1шт.

8

80445568

BAR,HC 1-5/8" X 240mm overall length

L= 240 mm

33шт.

HC 1-5/8"

1шт.

8

80396505

BAR,HC 1-5/8" X 230mm overall length

L= 230 mm

66шт.

HC 1-5/8"

1шт.

8

80445568

BAR,HC 1-5/8" X 240mm overall length

L= 230 mm

165шт.

HC 1-5/8"

1шт.

9

453189

WIRE

1шт.

10

398561

CLIP

6шт.

11

9832566

BAR

L= 240 mm

47шт.

HC 1-1/8"

1шт.

11

9832565

BAR

L= 230 mm

94шт.

HC 1-1/8"

1шт.

11

9832565

BAR

L= 230 mm

235шт.

HC 1-1/8"

1шт.

12

84100965

SIEVE

Part is Not Remote Ready, Incl. 8 - 10

2шт.

HC SLAT - 1-1/8" - PAINTED

1шт.

12

47389898

SIEVE

Part is Not Remote Ready, Incl. 8 - 10

2шт.

CLOSZ SLAT - 1-1/8" - GALVANIZED

1шт.

12

84320037

SIEVE

Part is Not Remote Ready, Incl. 8 - 10

2шт.

CLOSZ SLAT - 1-5/8" - PAINTED

1шт.

12

87109834

SIEVE

Part is Not Remote Ready, Incl. 8 - 10

2шт.

CORN - 1-5/8" - GALVANIZED

1шт.

12

87109838

SIEVE

Part is Not Remote Ready, Incl. 8 - 10

2шт.

CLOSZ SLAT - 1-5/8" - GALVANIZED

1шт.

12

84100990

SIEVE

Part is Not Remote Ready, Incl. 8 - 10

2шт.

PETERSON - 1-1/8" - PAINTED

1шт.

12

87109842

SIEVE

Part is Not Remote Ready, Incl. 8 - 10

2шт.

PETERSON - 1-1/8" - GALVANIZED

1шт.

12

84437315

SIEVE

Part is Not Remote Ready, Incl. 8 - 10

2шт.

CLOSZ SLAT - 1-1/8" - PAINTED

1шт.

13

84084984

SIEVE,Kit, UPPER HC 1-1/8"

Incl. 8 - 10

1шт.

KIT - HC 1-1/8"

1шт.

13

84084981

DIA KIT, HARVESTER

Incl. 8 - 10

1шт.

KIT - PETERSON - 1-1/8"

1шт.

13

84084324

DIA KIT, HARVESTER

1шт.

KIT - CLOSZ 1-5/8"

1шт.

13

84084664

DIA KIT, HARVESTER

Chaffer Adjustment - 1-5/8"

1шт.
