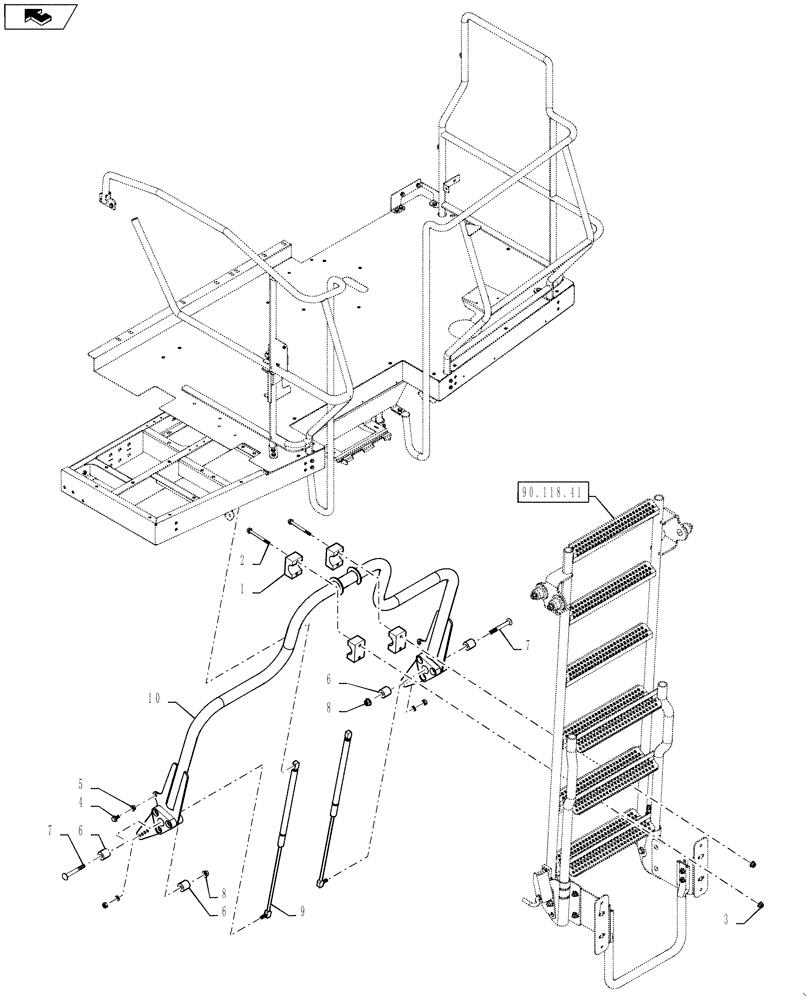

Запчасти Case IH 9230 (90.118.41[01]) - DECK, REAR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87630671

BLOCK ASSY.

2шт.

2

87670762

BOLT,Hex, M8 x 90mm, Cl 10.9

4шт.

3

87681210

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

4

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

1шт.

5

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

1шт.

6

87000413

BUSHING,12.7mm ID x 31.75mm OD x 32mm L

4шт.

7

87497917

CARRIAGE BOLT,Short Sq Nk, M12 x 1.75 x 100mm, Cl 10.9

2шт.

8

86512497

FLANGE NUT,M12 x 1.75, Cl 10

2шт.

9

47360439

GAS STRUT

2шт.

10

87746846

ARM ASSY.

1шт.
