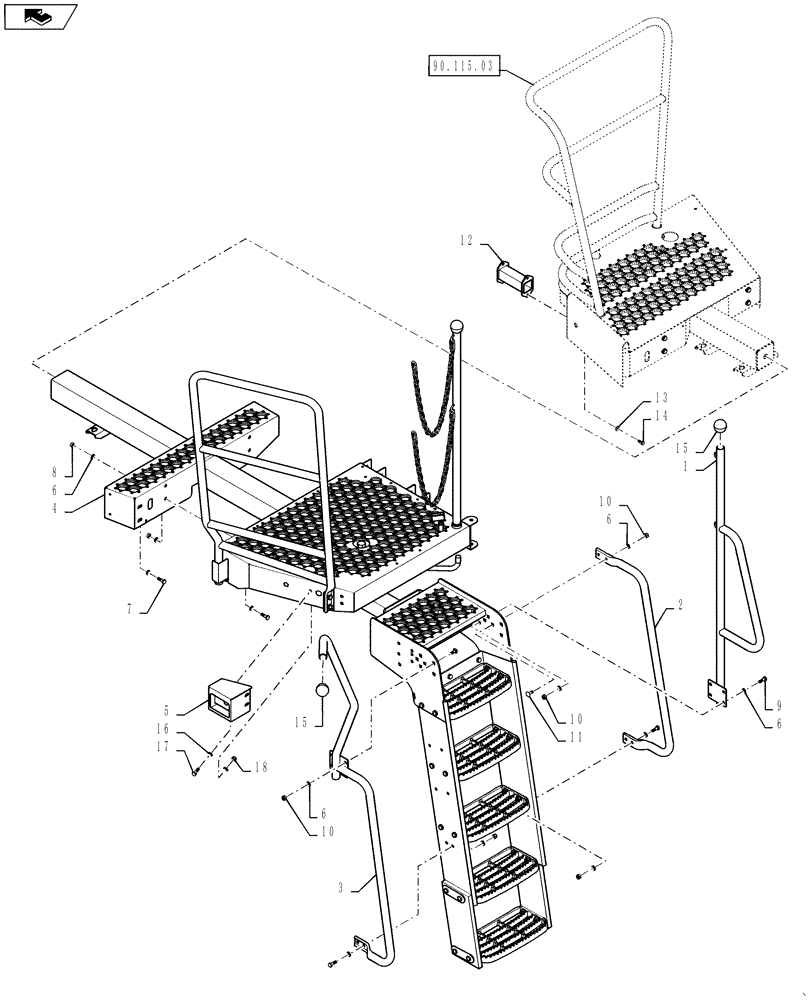

Запчасти Case IH 9230 (90.118.39[02]) - RAILING, PLATFORM, EU 7230 & 8230 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87280936

GRAB RAIL

1шт.

2

87109584

HANDRAIL

1шт.

3

87284947

HANDRAIL

1шт.

4

87548617

PLATFORM

1шт.

5

84147467

BRACKET

1шт.

6

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

38шт.

7

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

8шт.

8

100016

NUT,M10 x 1.5, Cl 8

8шт.

9

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

8шт.

10

100037

LOCK NUT,M10 x 1.5, Cl 8

14шт.

11

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

6шт.

12

87280542

EXTENSION

1шт.

13

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

14

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

15

87109879

KNOB

2шт.

16

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

17

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

18

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

1шт.
