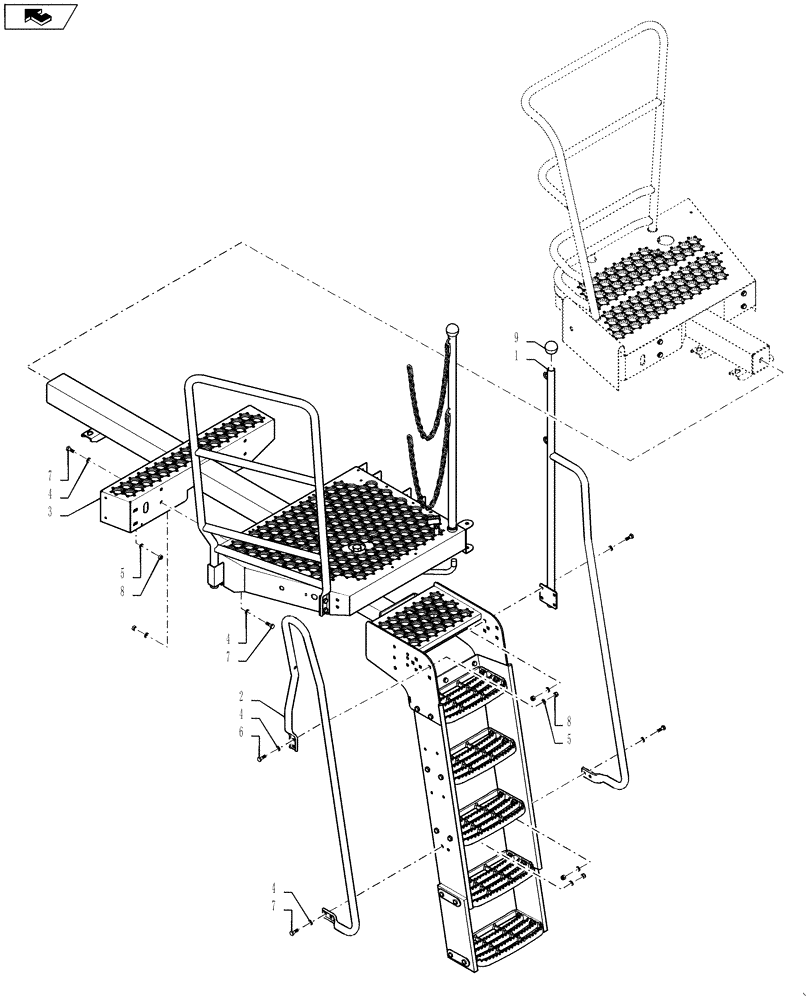

Запчасти Case IH 9230 (90.118.39[01]) - RAILING, PLATFORM, NA 72/82/9230 & EU 9230 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87109386

HANDRAIL

1шт.

2

87284635

HANDRAIL

1шт.

3

87548617

PLATFORM

1шт.

4

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

18шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

18шт.

6

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

8шт.

7

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

10шт.

8

100016

NUT,M10 x 1.5, Cl 8

18шт.

9

87109879

KNOB

1шт.
