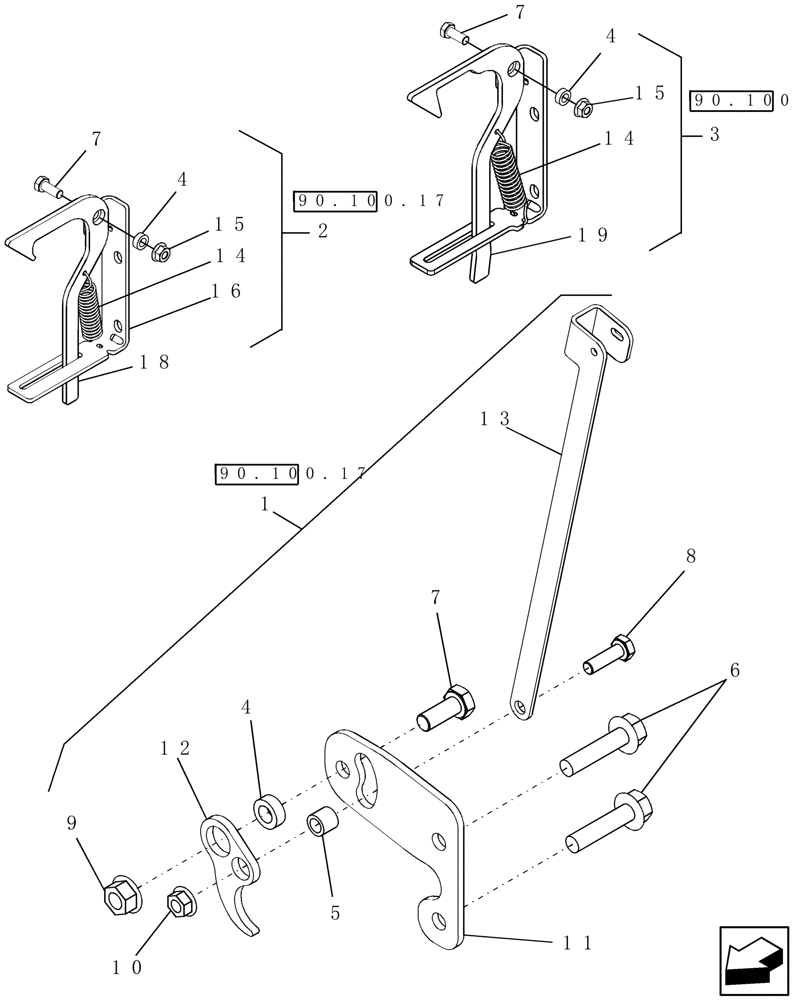

Запчасти Case IH 9230 (90.118.36) - LATCHES, SECONDARY PANEL - EU ONLY - 72/82/9230 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

0C

ORDER COMPONENTS

Latch, Secondary; R.H. Rear Panel

1шт.

2

0C

ORDER COMPONENTS

Latch, Secondary; L.H. Panels

1шт.

3

0C

ORDER COMPONENTS

Latch, Secondary; R.H. Front Panel

1шт.

4

224089A1

SPACER

3шт.

5

87682401

SPACER,6.83mm ID x 10.29mm OD x 9mm L

1шт.

6

87695419

FLANGE BOLT,M8 x 43.1mm, Cl 10.9

2шт.

7

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

8

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

9

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

10

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

1шт.

11

84161978

PLATE

Latch Mounting

1шт.

12

84161984

LATCH

1шт.

13

84161981

STRAP

1шт.

14

87109697

SPRING

2шт.

15

86619801

FLANGE NUT,M8 x 1.25, Cl 8

2шт.

16

84157810

BRACKET

L.H. Latch

1шт.

17

84161322

BRACKET

R.H. Latch

1шт.

18

84161324

HOOK

L.H. Latch

1шт.

19

84161323

HOOK

R.H. Latch

1шт.
