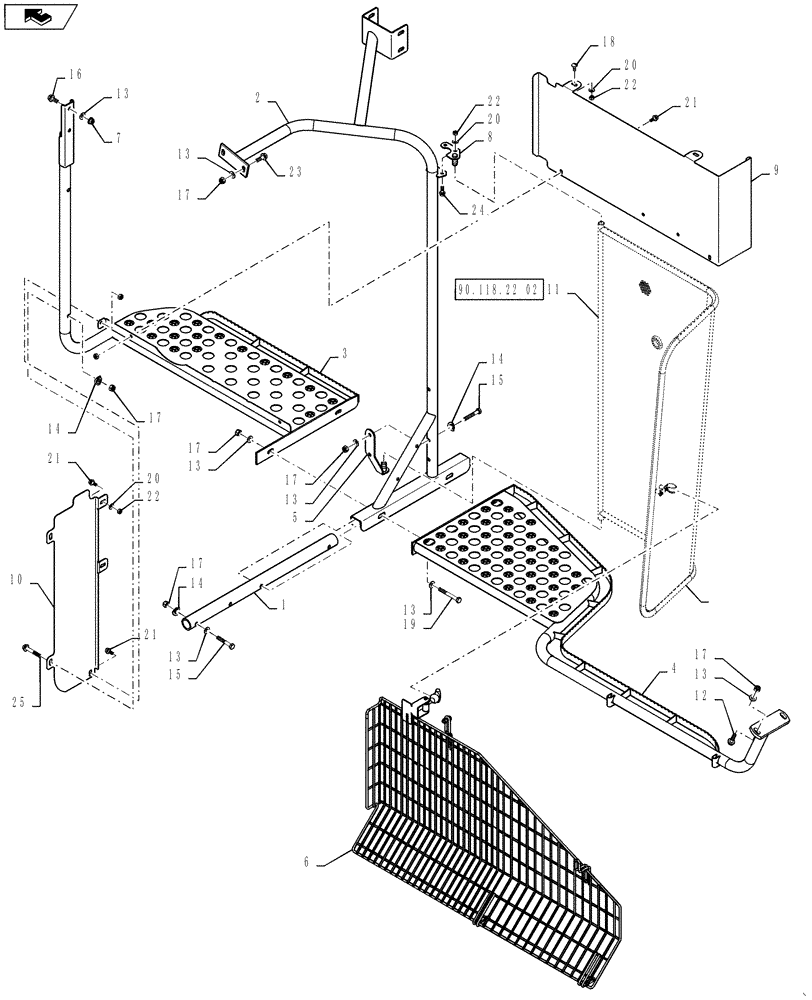

Запчасти Case IH 9230 (90.118.22[01]) - SHIELD, PLATFORM, LOWER LH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

86976334

TUBE,39.69 mm OD x 650 mm L

1шт.

2

84295409

SUPPORT

1шт.

3

84518899

PLATFORM

1шт.

4

84295406

SHIELD

1шт.

5

84295403

BRACKET

1шт.

6

87489338

GUARD ASSY.

1шт.

7

86050279

FLANGE NUT,M10 x 1.5, Cl 10

2шт.

8

84295400

BRACKET

1шт.

9

84518905

SHIELD

1шт.

10

84518909

SHIELD

1шт.

11

84330967

SHIELD

Used W Tracks

1шт.

12

87698838

FLANGE BOLT,M10 x 35mm, Full Thd, Cl 10.9

2шт.

13

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

14шт.

14

379401

WASHER,11mm ID x 30mm OD

6шт.

15

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

4шт.

16

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

2шт.

17

100037

LOCK NUT,M10 x 1.5, Cl 8

12шт.

18

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

19

120073

BOLT,Hex, M10 x 86.58mm, Cl 8.8

2шт.

20

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

21

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

5шт.

22

9706690

NUT,M8 x 1.25, Cl 8

6шт.

23

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

2шт.

24

87698833

BOLT,M8 x 33.1mm, Cl 10.9

2шт.

25

87656139

BOLT,M10 x 70.4mm, Cl 10.9

2шт.
