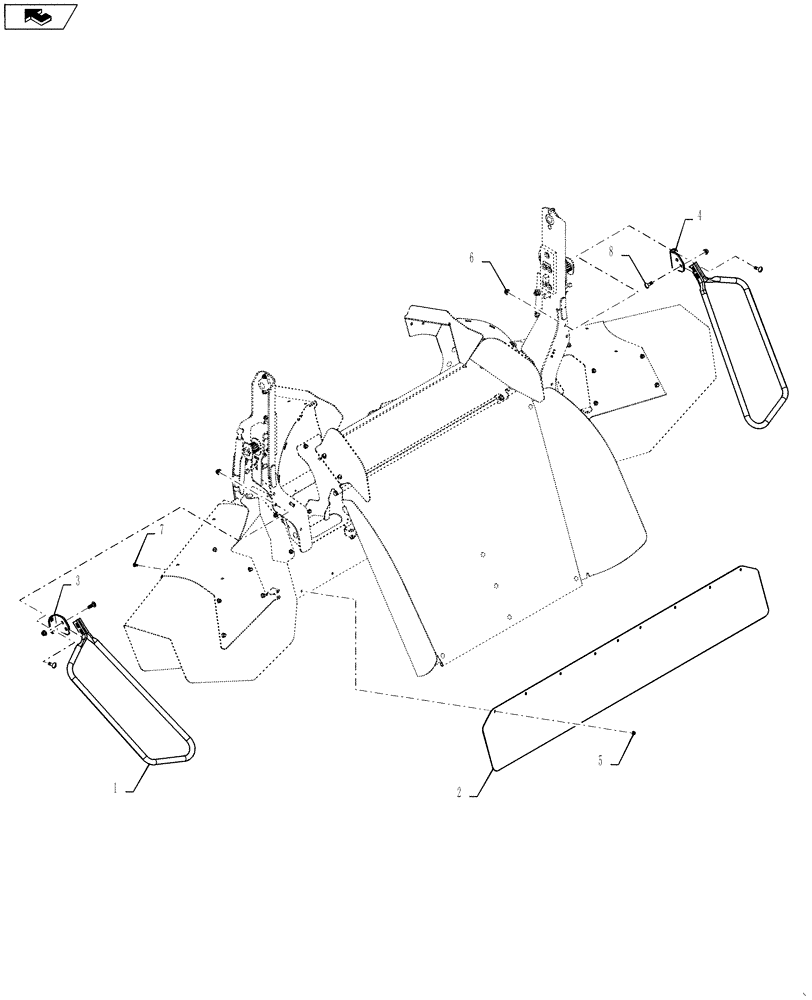

Запчасти Case IH 9230 (90.118.03) - SPREADER SHIELDS EURO ONLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84359373

PROTECTION PLATE

2шт.

2

84384419

CURTAIN

Plastic

1шт.

3

84401709

SUPPORT

LH

1шт.

4

84401713

SUPPORT

RH

1шт.

5

87301498

FLANGE NUT,Hex, M6 x 1.0, Cl 10

9шт.

6

86050279

FLANGE NUT,M10 x 1.5, Cl 10

8шт.

7

87752072

CARRIAGE BOLT,M6 x 1.0 x 26.6mm, Cl 10.9

9шт.

8

87682392

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 10.9

8шт.
