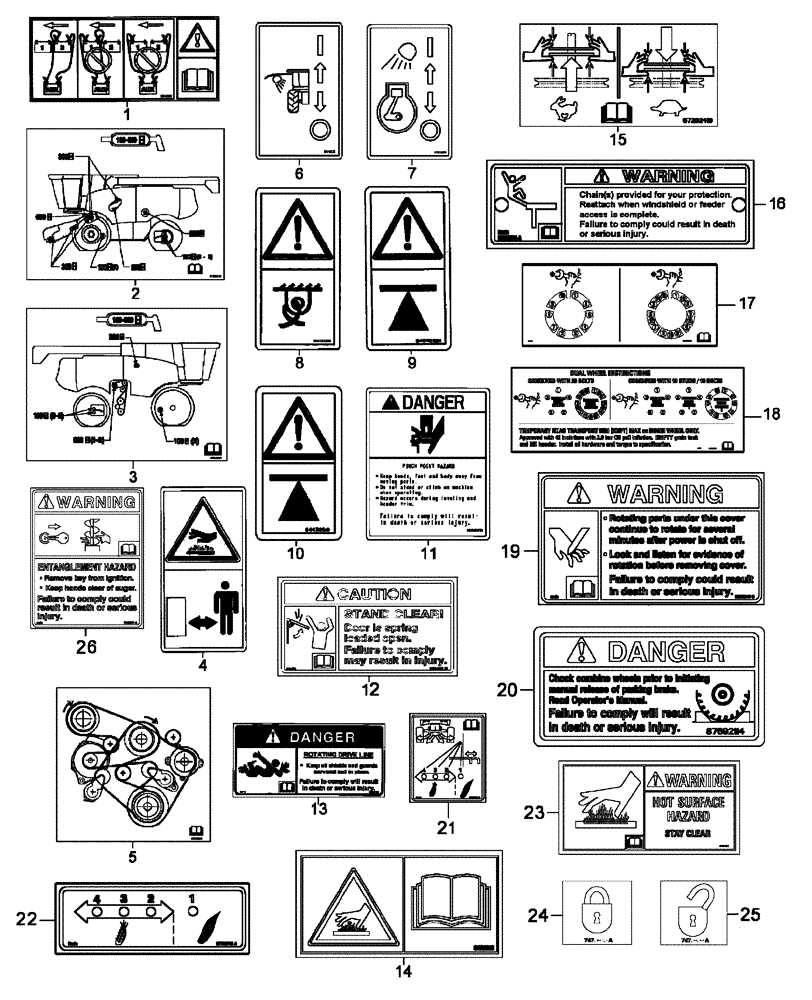

Запчасти Case IH 9230 (90.108.01[02]) - DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

86640426

DECAL

Safety, For English, French, and Spanish

1шт.

2

87645433

DECAL

Lubrication, L.H., For English, French, and Spanish

1шт.

3

87335441

DECAL

Lubrication, R.H., For English, French, and Spanish

1шт.

4

84004742

DECAL

For English, French, and Spanish

1шт.

5

87282434

DECAL

Engine Belt Routing, For English, French, and Spanish

1шт.

8120 Only

1шт.

6

87623370

DECAL

Light Switch, For English, French, and Spanish

1шт.

7

87623371

DECAL

Light Switch, For English, French, and Spanish

1шт.

8

84100296

DECAL

For English, French, and Spanish

8шт.

9

84078384

DECAL

For English, French, and Spanish

2шт.

10

84439510

DECAL

For English, French, and Spanish

2шт.

11

84128537

DECAL

Pinch Point, For English

2шт.

11

84146171

DECAL

Pinch Point, French

2шт.

11

84146173

DECAL

Pinch Point, Spanish

2шт.

11

84146176

DECAL

Pinch Point, Portuguese (Brazil)

2шт.

12

688443

DECAL

Caution, STAND CLEAR; English

1шт.

13

9826789

DANGER DECAL,180mm x 90mm H

Rotating Driveline, English

1шт.

13

9827448

DANGER DECAL

French

1шт.

13

87013474

DECAL

Danger, Spanish

1шт.

13

87707623

DECAL

Danger, Portuguese (Brazil)

1шт.

14

87282352

DECAL

HOT, For English, French, and Spanish

2шт.

15

87282418

DECAL

High/Low, For English, French, and Spanish

2шт.

16

87385554

WARNING DECAL

Safety Chain, English

1шт.

16

87390899

WARNING DECAL

Safety Chain

1шт.

16

87390900

WARNING DECAL

Safety Chain

1шт.

16

87707635

DECAL

Safety Chain, Portuguese (Brazil)

1шт.

17

87570139

DECAL

Bolt Torquing Sequence, Single Drive Wheels

2шт.

NA

1шт.

18

87563205

DECAL

Bolt Torquing Sequence, Dual Drive Wheels

2шт.

NA

1шт.

19

87498470

DECAL

WARNING - Rotating Parts Continue To Rotate, English

2шт.

19

87498471

DECAL

WARNING - Rotating Parts Continue To Rotate, French

2шт.

19

87498472

DECAL

WARNING - Rotating Parts Continue To Rotate, Spanish

2шт.

19

87498473

DECAL

WARNING - Rotating Parts Continue To Rotate, Portuguese (Brazil)

2шт.

20

87692114

DECAL

DANGER - Chock Combine Wheels, English

1шт.

20

87707638

DECAL

DANGER - Chock Combine Wheels, French

1шт.

20

87707639

DECAL

DANGER - Chock Combine Wheels, Spanish

1шт.

20

87707637

DECAL

DANGER - Chock Combine Wheels, Portuguese

1шт.

21

87728707

DECAL

Chopper Discharge Deflector Plate

1шт.

22

87728708

DECAL

Chopper Discharge Deflector Handle

1шт.

23

418242A3

WARNING DECAL,168mm x 88mm H

Hot Surface Hazard, English

1шт.

23

87415863

WARNING DECAL

Hot Surface Hazard, Spanish

1шт.

23

87415862

WARNING DECAL

Hot Surface Hazard, French

1шт.

23

87415864

WARNING DECAL

Hot Surface Hazard, Portuguese (Brazil)

1шт.

23

87415865

WARNING DECAL

Hot Surface Hazard, EU

1шт.

24

87479089

DECAL

Lock

1шт.

25

87479090

DECAL

Unlock

1шт.

26

84128541

DECAL

ENTANGLEMENT HAZARD

1шт.

26

84131410

DECAL

ENTANGLEMENT HAZARD, French

1шт.

26

84128542

DECAL

ENTANGLEMENT HAZARD, Spanish

1шт.

26

84131893

DECAL

ENTANGLEMENT HAZARD, Portuguese (Brazil)

1шт.
