Запчасти Case IH 9230 (90.105.06) - ENGINE COVERS AND LADDER, MID, 82/9230 T2/T4 (90) - PLATFORM, CAB, BODYWORK AND DECALS

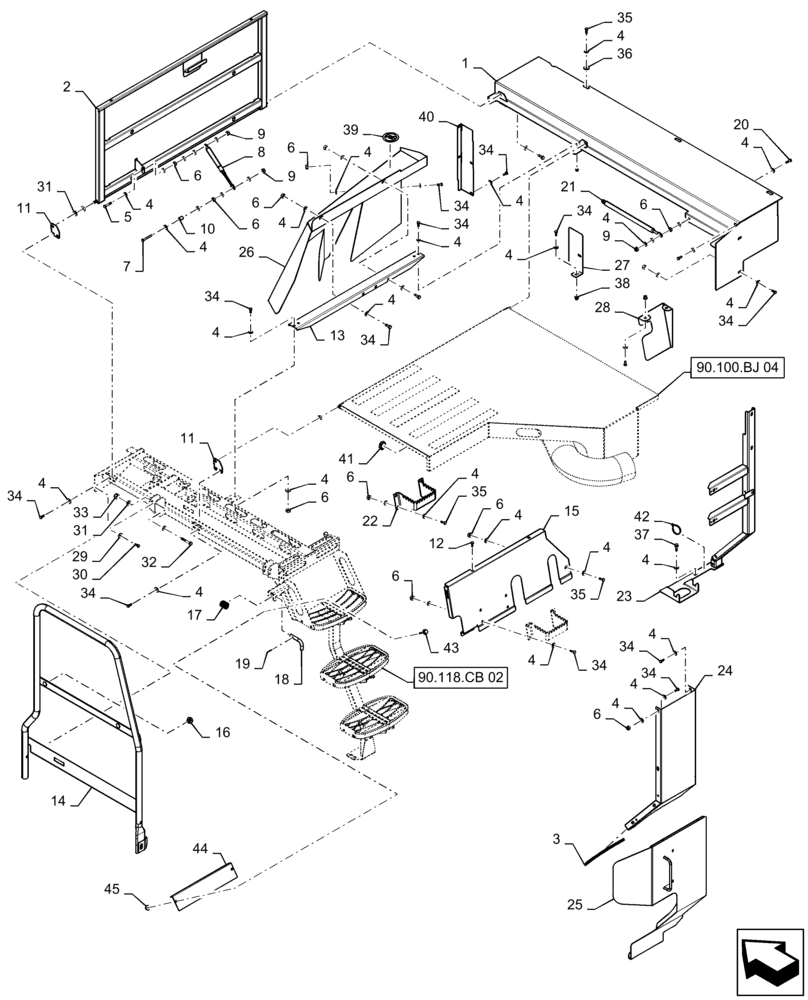

Схема запчастей Case IH 9230 - (90.105.06) - ENGINE COVERS AND LADDER, MID, 82/9230 T2/T4 (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
26
40
6
9
34
6
42
9
34
17
34
34
15
22
34
3
4
19
34
6
5
4
4
4
30
8
24
6
18
11
44
2
12
6
38
34
90.100.bj 04
4
41
35
11
4
35
6
16
4
1
4
31
4
36
4
4
20
4
4
27
6
35
34
4
21
32
6
4
34
6
13
45
28
33
31
25
34
7
4
4
4
34
4
4
10
39
4
34
14
6
9
4
29
4
90.118.cb 02
43
37
23

Артикул

Название

Примечание

Количество

1

84419658

FRAME

Cooler Box Cover

1шт.

2

87485663

COVER

Rotor Gearbox

1шт.

3

87029779

SEAL

Trim Edge, 287mm OAL

1шт.

4

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

80шт.

5

300381

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

1шт.

6

9706690

NUT,M8 x 1.25, Cl 8

24шт.

7

86977784

BOLT,Hex, M8 x 60mm, Cl 8.8, Full Thd

1шт.

8

84121818

GAS STRUT

Rotor Gearbox Cover

1шт.

9

86629542

NUT,M8 x 1.25, Cl 8.8

4шт.

10

86580795

SPACER

8mm ID x 15.9mm OD x 21.8mm OAL

1шт.

11

87653826

HINGE

Rotor Gearbox Cover

2шт.

12

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

2шт.

13

87555590

CHANNEL

Engine Cover, Front

1шт.

14

84187234

HANDRAIL

Engine Deck

1шт.

15

84523254

BAFFLE

Engine Bay, Lower

1шт.

16

86975394

BUMPER

Rubber

2шт.

17

86611329

SPRING

363.5mm Free Length

1шт.

18

86611330

PIN,16.56mm OD

Jack

1шт.

19

87913

LOCK PIN,3.17mm OD x 31.75mm L, Slotted

1шт.

20

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

2шт.

21

84334242

GAS STRUT

Engine Cover

1шт.

22

87105622

STEP

Engine Bay

2шт.

23

84499759

SUPPORT

Engine Cover, Bottom

1шт.

24

84499764

PLATE

Cooler Box, Rear

1шт.

25

84518554

COVER

Air Cleaner Access

1шт.

26

84338953

DEFLECTOR

Engine Bay, Front

1шт.

27

84489689

DEFLECTOR

Cooler Box, Front, Middle

1шт.

28

84488628

DEFLECTOR

Cooler Box, Front, Lower

1шт.

29

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

30

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

6шт.

31

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

7шт.

32

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

33

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

34

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

32шт.

35

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

8шт.

36

140041

WASHER,M8 x 28mm OD x 3mm Thk

3шт.

37

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

3шт.

38

87284531

NUT,Rivnut, M8 x 1.25, 0.5mm - 3mm Grip Range

5шт.

39

84432904

DECAL

No Step

1шт.

40

84490642

DEFLECTOR

Cooler Box, Front, Upper

1шт.

41

158188

PLUG,19mm Hole, 28.6mm OD

1шт.

42

86566989

CABLE TIE,208mm L

2шт.

43

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

2шт.

44

84423483

STEP

Kick Plate

1шт.

45

86050300

FLANGE NUT,M6 x 1.0, Cl 10

2шт.

Выбрано товаров: 45
