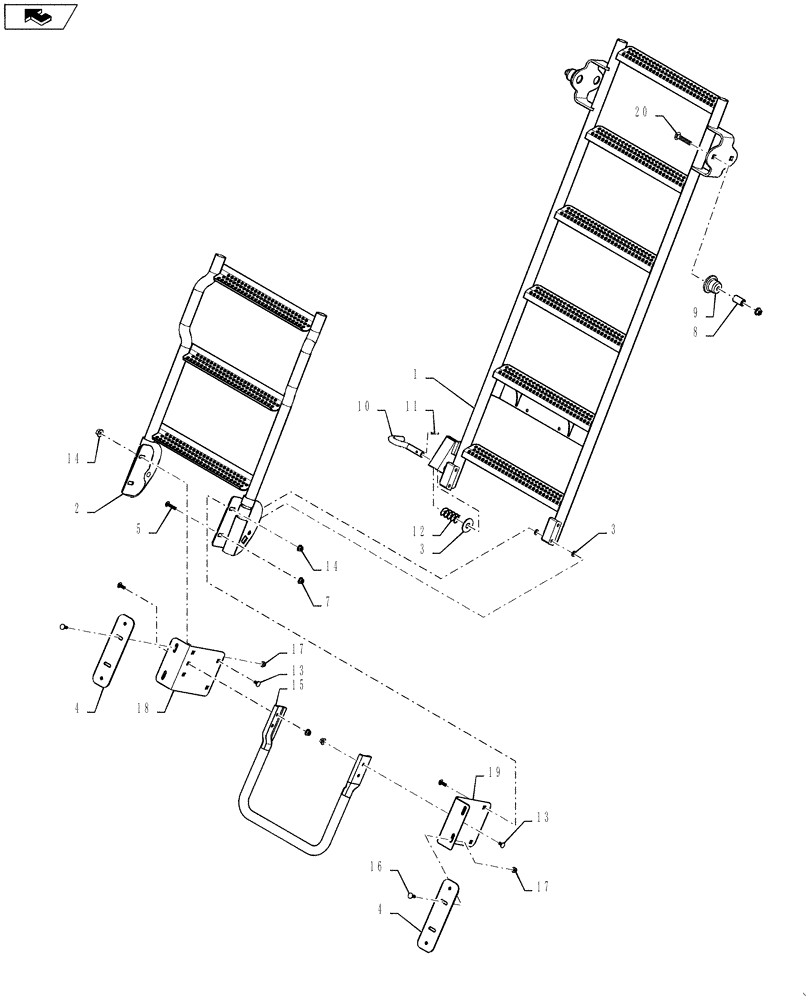

Запчасти Case IH 9230 (90.105.03) - LADDER ASSY, REAR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84349088

LADDER

1шт.

2

84349087

LADDER

1шт.

3

87528989

WASHER,12.2mm ID x 30mm OD x 2.5mm Thk

5шт.

4

87672123

PLATE

2шт.

5

338263

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 70mm, Cl 8.8

2шт.

6

86619803

FLANGE NUT

6шт.

7

436353

BUSHING,12.5mm ID x 22mm OD x 39mm OAL

4шт.

8

424230

BUSHING,Tapered Hat, 22.6mm ID x 40mm OD x 60mm OD x 38mm OAL

4шт.

9

84335923

PIN,12.75mm OD

1шт.

10

300865

LOCK PIN,M3 x 20mm OAL, Slotted

1шт.

11

596127

SPRING,38.1mm Free Length

1шт.

12

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

8шт.

13

86619802

FLANGE NUT,M10 x 1.5, Cl 8

8шт.

14

87746671

HANDLE

1шт.

15

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

4шт.

16

86619801

FLANGE NUT,M8 x 1.25, Cl 8

4шт.

17

87498873

BRACKET

1шт.

18

87498875

BRACKET

1шт.

19

412097

CARRIAGE BOLT,Short Sq Nk, M12 x 1.75 x 60mm, Cl 8.8

4шт.
