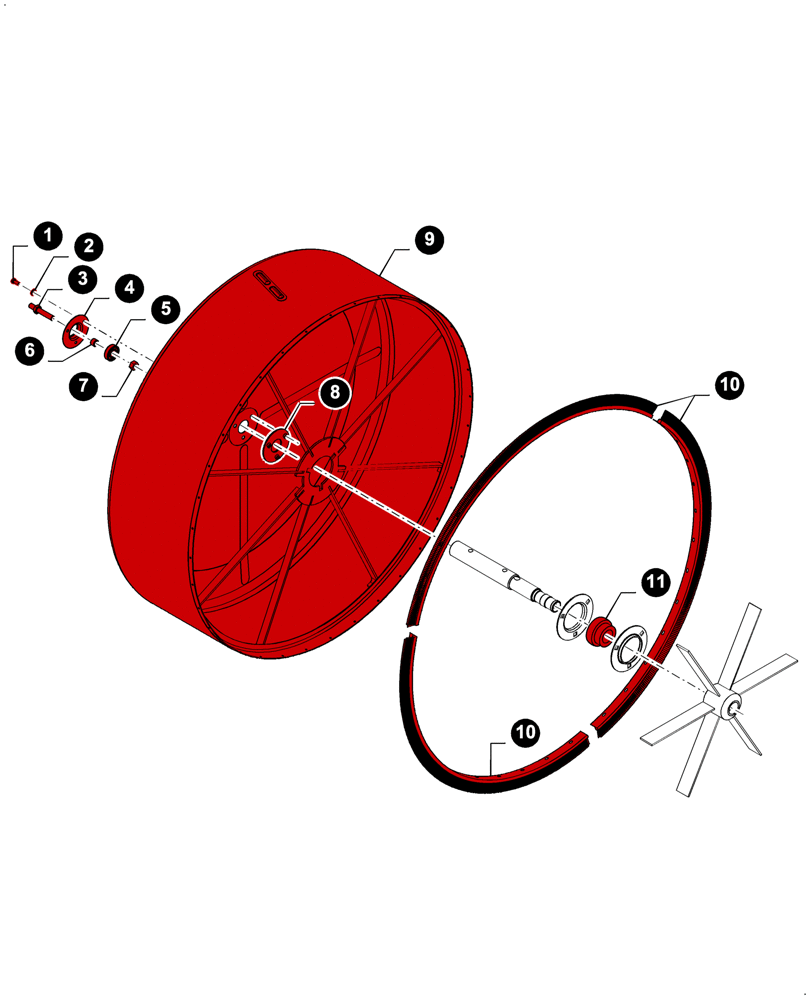

Запчасти Case IH 9230 (05.100.04[J07]) - 7230 8230 9230 - MAINTENANCE PARTS, DUST SCREEN (05) - SERVICE & MAINTENANCE

1

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

3шт.

2

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

3шт.

3

84032079

BOLT,M12 x 77.50mm, Cl 8.8

1шт.

4

365018

BEARING HOUSING

1шт.

5

362804

BALL BEARING,17mm ID x 40mm OD x 12mm W

1шт.

6

434182

BUSHING,12mm ID x 17mm OD x 12.1mm L

1шт.

7

9706685

NUT,M12 x 1.75, Cl 8

1шт.

8

84071581

PLATE

1шт.

9

84454696

SCREEN

1шт.

10

84057430

BRUSH

3шт.

11

322360

BALL BEARING,35mm ID x 72mm OD x 19mm W

1шт.
