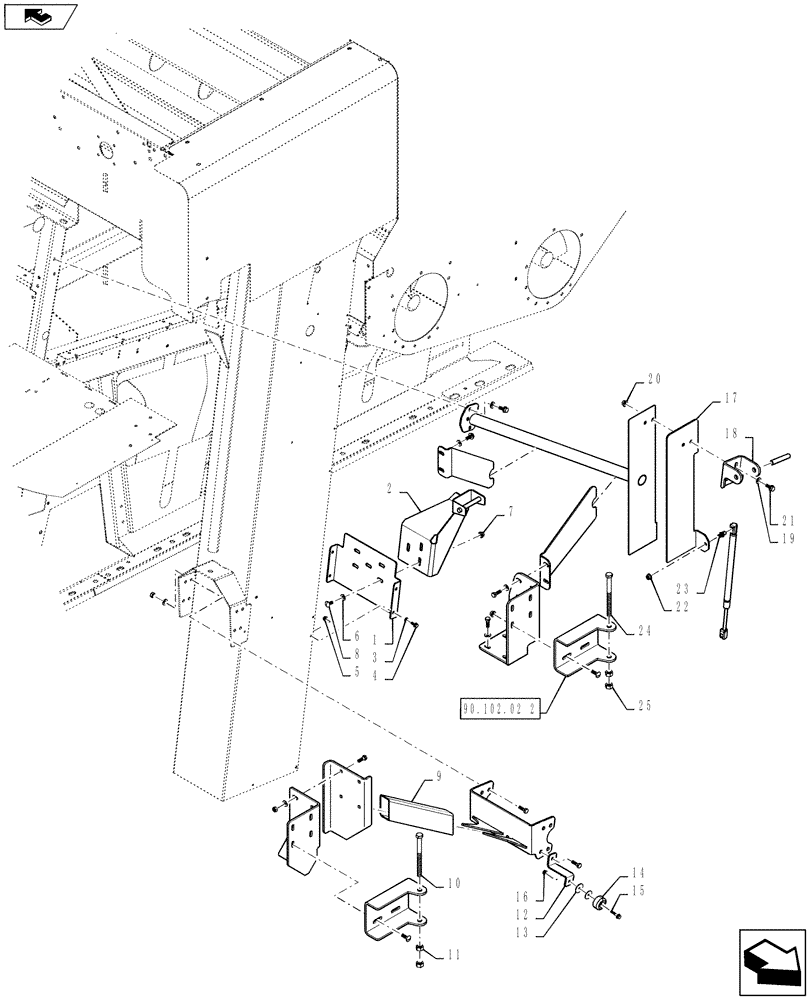

Запчасти Case IH 9230 (90.102.02) - PANEL LATCHES/SUPPORTS, R.H. PANELS. MID (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87475013

BRACKET

1шт.

2

87494170

BRACKET

1шт.

3

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

8шт.

4

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

5

9706755

NUT,M6, Cl 8

4шт.

6

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

7

9706690

NUT,M8 x 1.25, Cl 8

3шт.

8

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

3шт.

9

87693876

SUPPORT ASSY.

1шт.

10

328048

BOLT,M12 x 1.75 x 147.68mm OAL, Cl 8.8

1шт.

11

9706685

NUT,M12 x 1.75, Cl 8

2шт.

12

84135081

BRACKET

1шт.

13

87542959

WASHER,6.15mm ID x 30mm OD x 1.5mm Thk

1шт.

14

87602893

BUMPER,6.4mm ID x 38mm OD x 19mm Thk

1шт.

15

87698760

FLANGE BOLT,M6 x 36.6mm, Cl 10.9

1шт.

16

86619800

FLANGE NUT,M6 x 1, Cl 8

1шт.

17

84132587

BRACKET

1шт.

18

87728296

BRACKET

1шт.

19

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

10шт.

20

9706690

NUT,M8 x 1.25, Cl 8

4шт.

21

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

6шт.

22

86619801

FLANGE NUT,M8 x 1.25, Cl 8

1шт.

23

83952214

BALL STUD,M8 x 29.5mm OAL

BALL PIN

1шт.

24

328048

BOLT,M12 x 1.75 x 147.68mm OAL, Cl 8.8

1шт.

25

9706685

NUT,M12 x 1.75, Cl 8

2шт.
