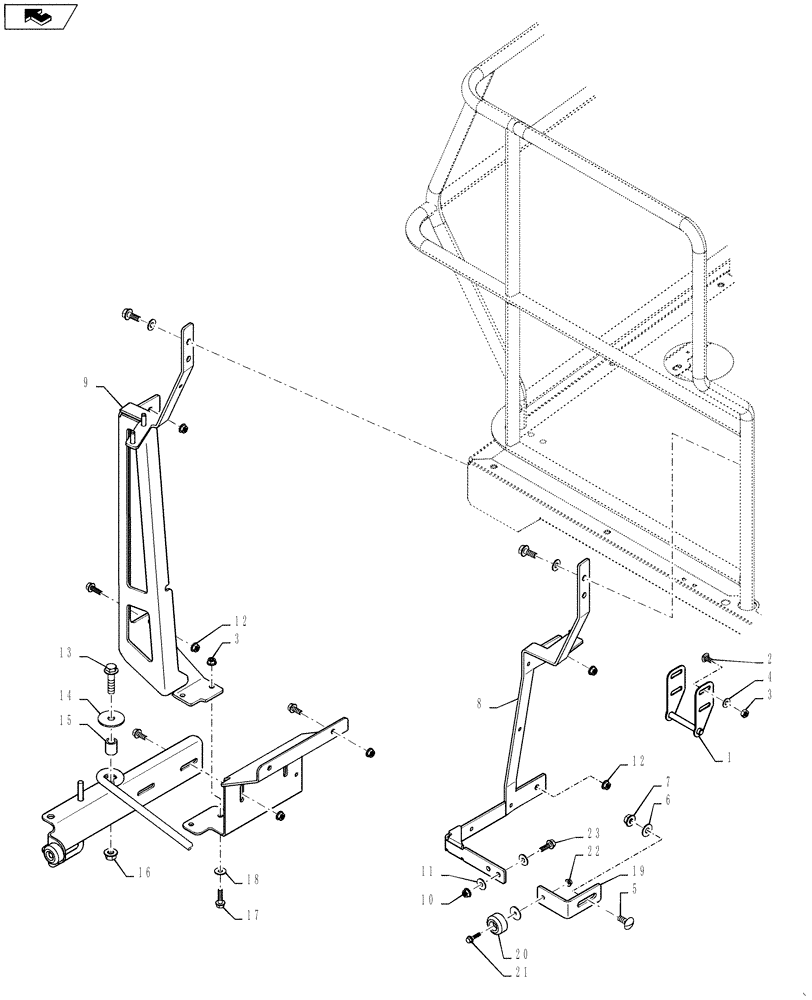

Запчасти Case IH 9230 (90.102.01) - PANEL LATCHES/SUPPORTS,R.H REAR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87734815

LATCH ASSY.

1шт.

2

86619060

CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8

4шт.

3

87681210

FLANGE NUT,M8 x 1.25, Cl 10

6шт.

4

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

5

338949

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8

1шт.

6

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

5шт.

7

100016

NUT,M10 x 1.5, Cl 8

1шт.

8

84183857

BRACKET

1шт.

9

84211645

BRACKET

1шт.

10

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

11

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

12

86619801

FLANGE NUT,M8 x 1.25, Cl 8

4шт.

13

87670764

BOLT,M12 x 61.8mm, Cl 10.9

1шт.

14

87026355

WASHER,12.8mm ID x 50mm OD x 3mm Thk

1шт.

15

224368A1

SPACER,0.546" ID x 0.840" OD x 0.984" OAL

1шт.

16

86512497

FLANGE NUT,M12 x 1.75, Cl 10

1шт.

17

87030775

BOLT,M8 x 38.1mm, Cl 10.9

2шт.

18

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

19

84135076

BRACKET

1шт.

20

87602893

BUMPER,6.4mm ID x 38mm OD x 19mm Thk

1шт.

21

87670758

FLANGE BOLT,M6 x 31.6mm, Cl 10.9

1шт.

22

86619800

FLANGE NUT,M6 x 1, Cl 8

1шт.

23

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.
