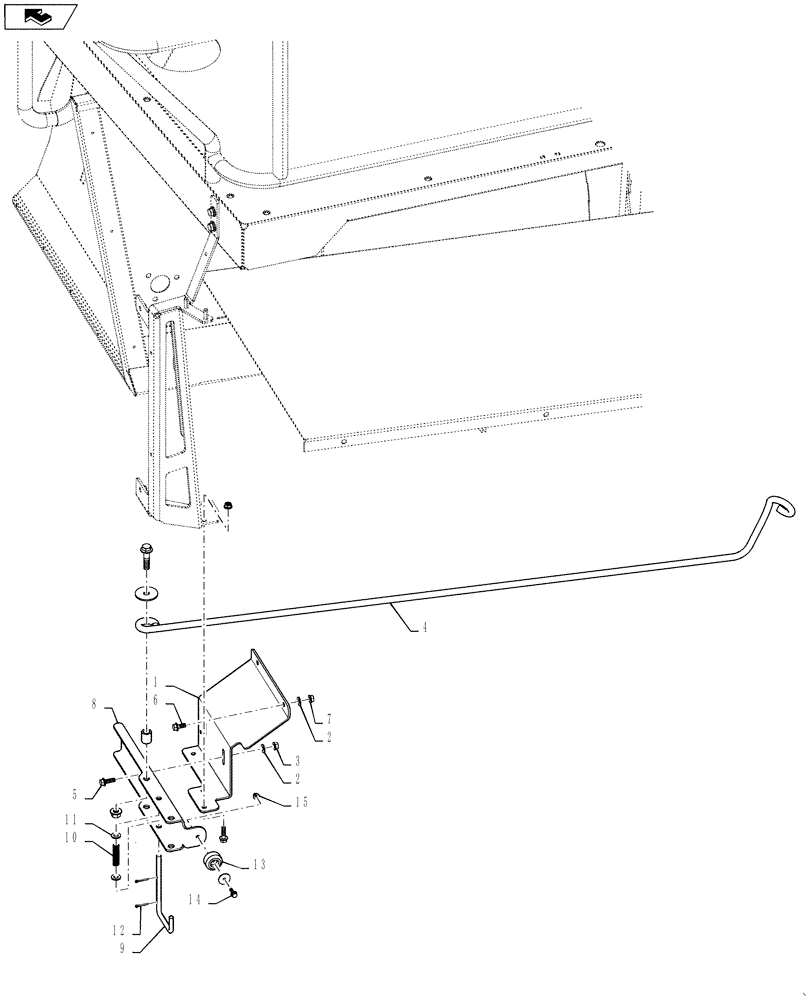

Запчасти Case IH 9230 (90.102.01[2]) - PANEL LATCHES/SUPPORTS, R.H CONTINUED (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84183848

BRACKET

1шт.

2

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

3

9706690

NUT,M8 x 1.25, Cl 8

2шт.

4

84130952

ROD

1шт.

5

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

6

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

2шт.

7

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

8

87497819

BRACKET

1шт.

9

87728300

PIN

1шт.

10

192216A1

SPRING

1шт.

11

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

2шт.

12

432-812

COTTER PIN,3/4" OAL x 1/8" W

2шт.

13

87602893

BUMPER,6.4mm ID x 38mm OD x 19mm Thk

1шт.

14

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

1шт.

15

86050300

FLANGE NUT,M6 x 1.0, Cl 10

1шт.
