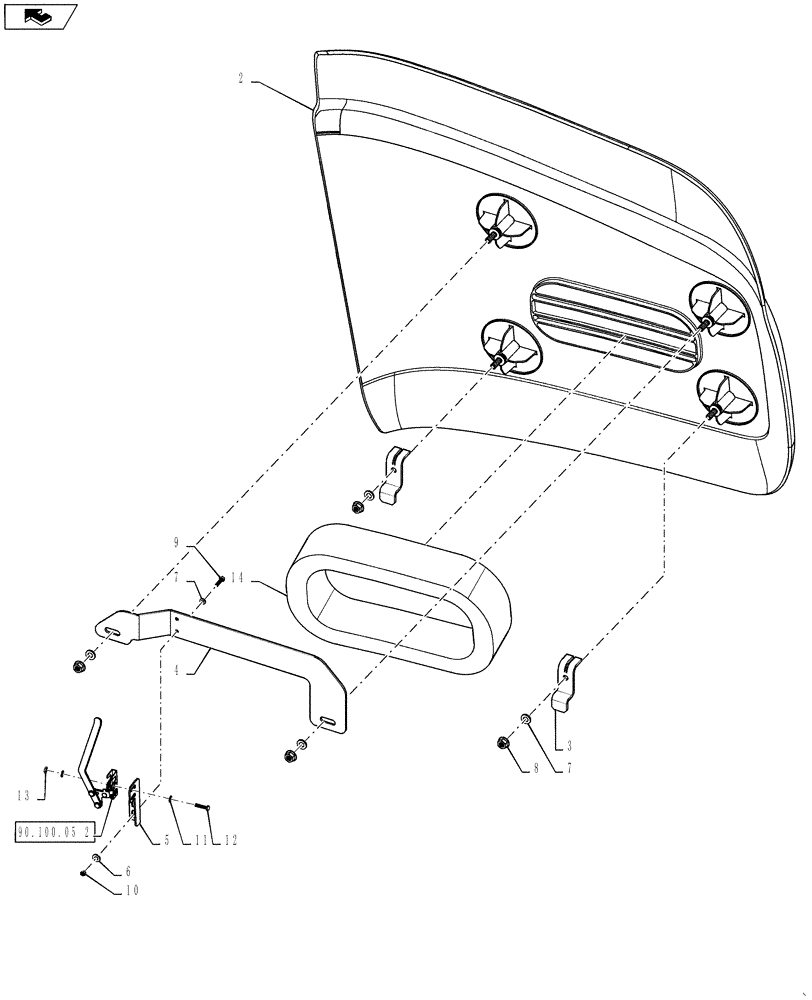

Запчасти Case IH 9230 (90.100.05) - PANELS, FRONT, R.H (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87628196

TRIM PANEL

Front Panel, RH

1шт.

2

84308164

TRIM PANEL

1шт.

3

84307694

BRACKET

2шт.

4

84335855

SUPPORT

1шт.

5

84335857

SUPPORT

1шт.

6

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

7

87681210

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

8

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

9

9706690

NUT,M8 x 1.25, Cl 8

2шт.

10

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

11

43117

SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8

2шт.

13

353308

NUT,M6 x 1.0, Cl 8

2шт.

14

84307697

SEAL

1шт.
