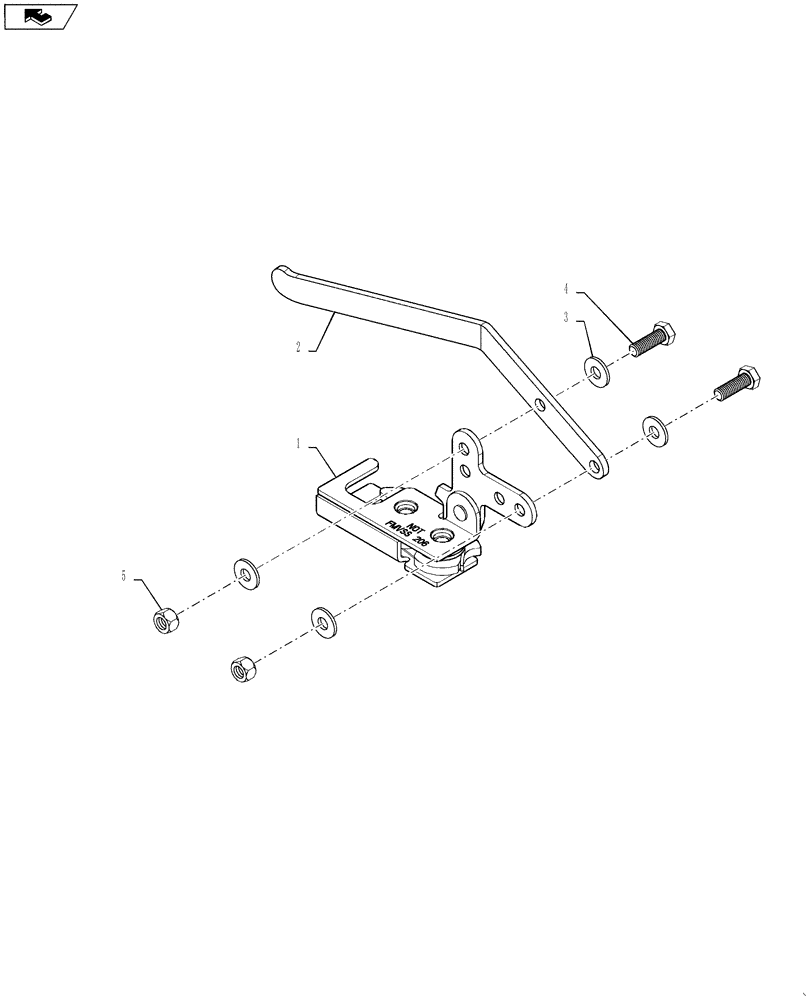

Запчасти Case IH 9230 (90.100.05[2]) - LEFT FRONT PANEL LATCH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84335906

LATCH

1шт.

2

84335902

HANDLE

1шт.

3

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

4

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

5

353308

NUT,M6 x 1.0, Cl 8

2шт.
