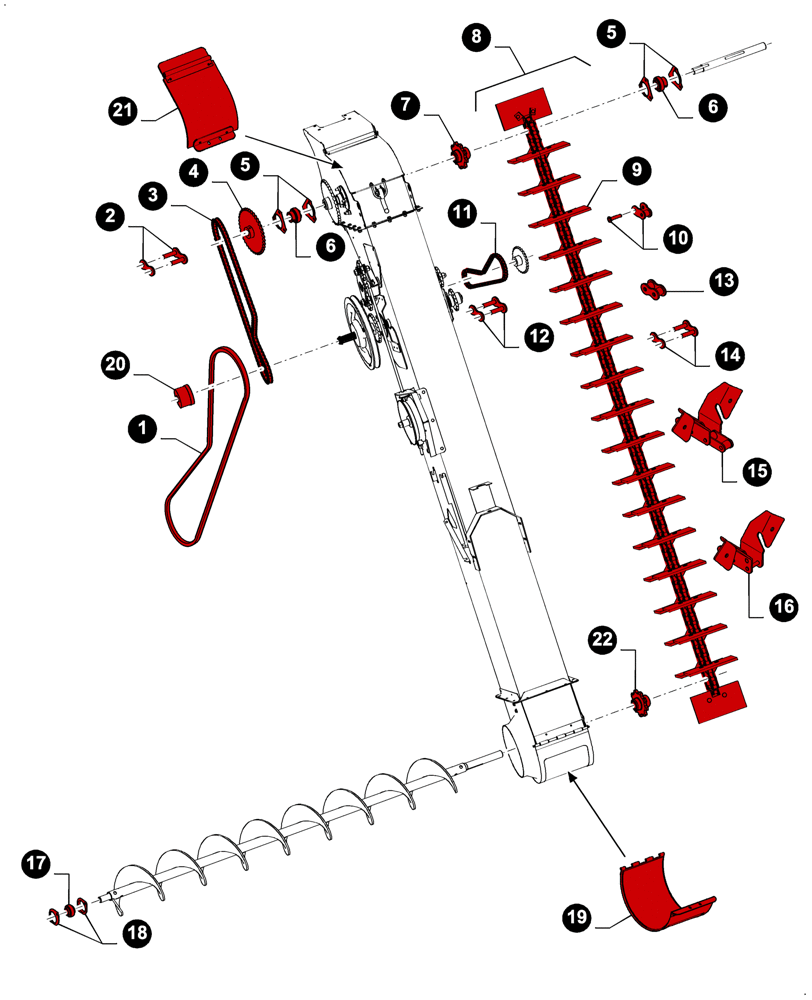

Запчасти Case IH 9230 (05.100.04[J03]) - 7230 8230 9230 - MAINTENANCE PARTS, GRAIN ELEVATOR (05) - SERVICE & MAINTENANCE

1

86975809

V-BELT,0.88" W x 1844.04mm Nominal Length

Bubble-up auger drive

1шт.

2

87470738

LINK,19.05mm Pitch

1шт.

3

87470737

CHAIN,RC60, 104 Links x 19.05mm = 1981.08mm

Incl. 2

1шт.

4

87748377

SPROCKET ASSY.

1шт.

5

86620026

FLANGED BEARING

4шт.

6

87605590

BEARING ASSY,35mm ID x 72mm OD x 19mm W

2шт.

7

87283438

SPROCKET

1шт.

8

87281911

ELEVATOR CHAIN,CA550HD, 145 Links x 41.4mm = 6003mm

1шт.

9

87282471

BLADE

35шт.

10

86995345

LINK,Chain

6шт.

11

87470736

CHAIN,RC60, 65 Links x 19.05mm = 1238.3mm

Incl. 12

1шт.

12

87470738

LINK,19.05mm Pitch

1шт.

13

86575773

LINK CHAIN

1шт.

14

87282356

CONNECTING LINK

1шт.

15

87281918

LINK,550 HD, 3 Links x 41.4mm = 124.2mm

1шт.

16

87281909

LINK CHAIN

1шт.

17

87044350

BEARING ASSY,30mm ID x 62mm OD x 18mm W

1шт.

18

86548970

FLANGED BEARING

2шт.

19

84084680

COVER

Perforated

1шт.

19

87282183

DOOR

Non-perforated

1шт.

20

87527860

CLUTCH ASSEMBLY

1шт.

21

87109213

COVER

1шт.

21

87733829

COVER ASSY

1шт.

EXTENDED WEAR

1шт.

22

87283436

SPROCKET

1шт.
