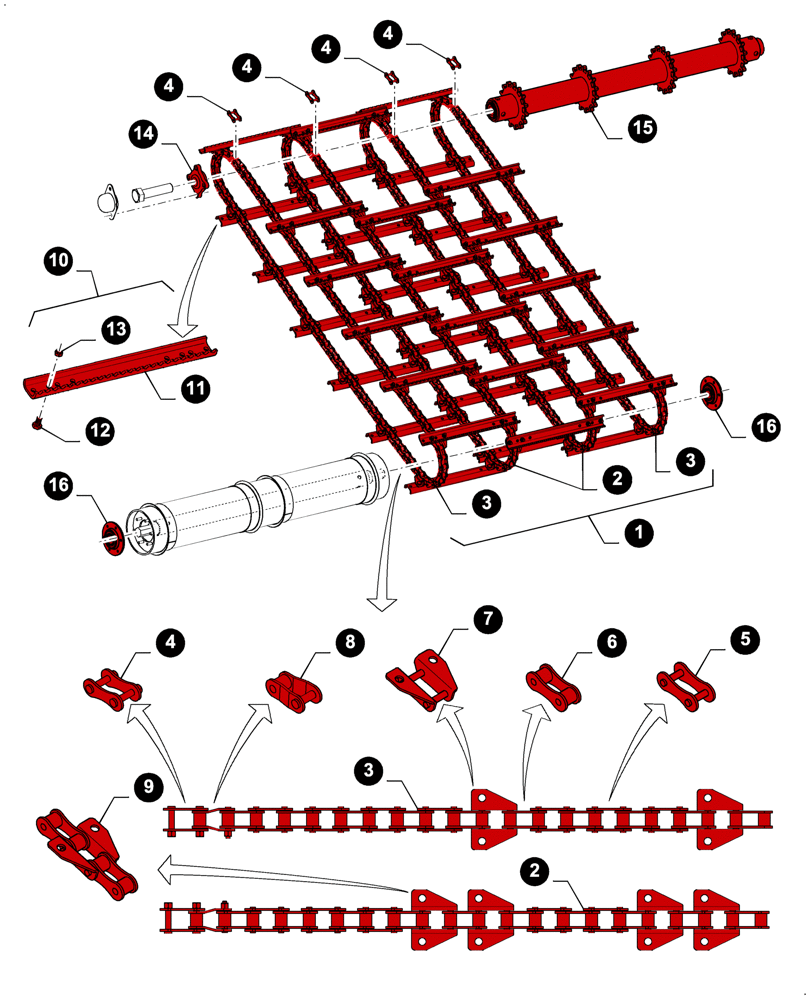

Запчасти Case IH 9230 (05.100.04[J02]) - 7230 8230 9230 - MAINTENANCE PARTS, FEEDER CHAINS, U-SHAPED SLATS (05) - SERVICE & MAINTENANCE

1

84179639

CHAIN,Feeder, 100 Links x 41.4mm = 4140mm

1шт.

WITH ROCK TRAP

1шт.

1

84179642

CHAIN,Feeder, 113 Links x 41.4mm = 4678.2mm

1шт.

WITHOUT ROCK TRAP

1шт.

2

84217941

CHAIN (AG),CA557, 100 Links x 41.4mm = 4140mm

Inner

2шт.

WITH ROCK TRAP

1шт.

2

84217945

CHAIN (AG),CA557, 113 Links x 41.4mm = 4678.2mm

Inner

2шт.

WITHOUT ROCK TRAP

1шт.

3

84217950

CHAIN (AG),CA557, 100 Links x 41.4mm = 4140mm

Outer

2шт.

WITH ROCK TRAP

1шт.

3

84217947

CHAIN (AG),CA557, 113 Links x 41.4mm = 4678.2mm

Outer

2шт.

WITHOUT ROCK TRAP

1шт.

4

87625526

LINK,41.4mm Pitch

4шт.

WITHOUT ROCK TRAP

1шт.

4

84257096

LINK,41.4mm Pitch, Threaded Pin

4шт.

WITH ROCK TRAP

1шт.

5

87283349

LINK,41.4mm Pitch

1шт.

6

87283351

LINK,Chain, 41.4mm Pitch

1шт.

7

87283352

CONNECTING LINK

1шт.

8

1324835C1

OFFSET LINK

2шт.

WITH ROCK TRAP

1шт.

8

1324294C1

LINK,40.893mm Pitch

4шт.

9

87283373

LINK,Chain, 3 Links x 41.4mm = 124.2mm

1шт.

10

84222922

KIT

Incl. 11 - 13

1шт.

11

84179662

SLAT

U-shaped

1шт.

12

9846677

BOLT,M10 x 1.5 x 25mm, Cl 10.9

4шт.

13

84207195

NUT,M10 x 1.5

4шт.

14

86995212

BEARING ASSY

Feeder idler roller

2шт.

15

84414915

SPROCKET

1шт.

16

84195972

FLANGED BEARING

2шт.
