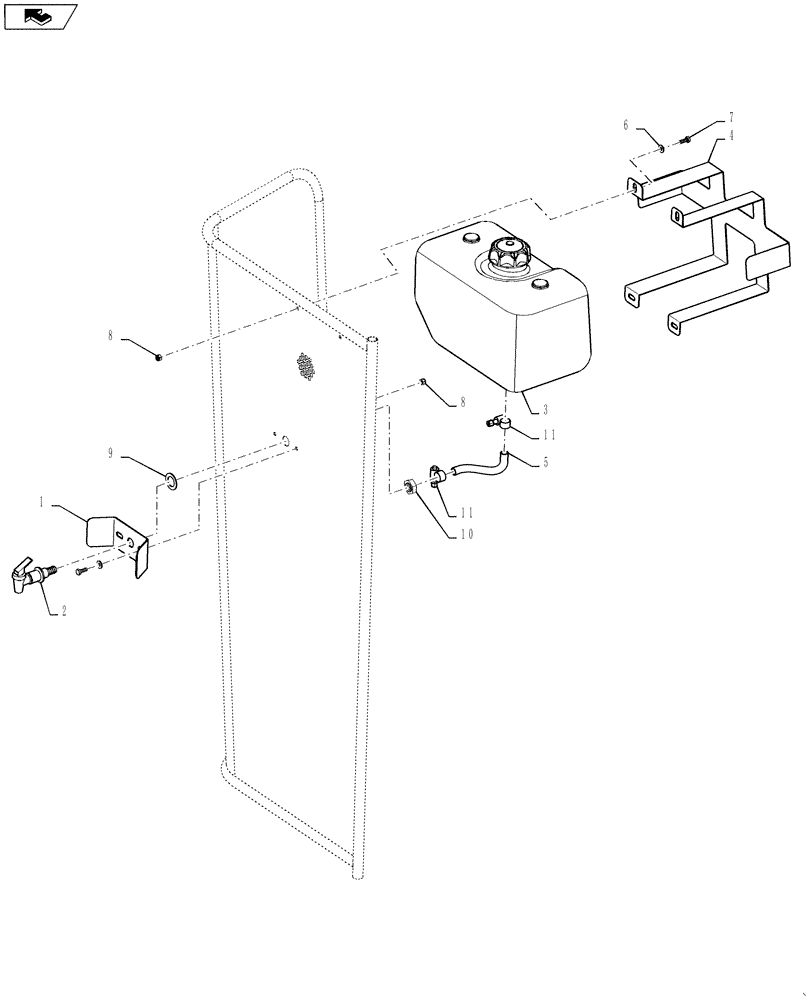

Запчасти Case IH 9230 (88.100.01) - DIA KIT: TANK, HAND WASH ASSY (88) - ACCESSORIES

1

84530781

SERVICE KIT

DIA, Hand Wash, Includes Ref 1-11

1шт.

2

84322843

VALVE,3/8" - 18

1шт.

3

84325430

TANK

1шт.

4

84286978

HOLDER

1шт.

5

84322844

HOSE

1шт.

6

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

6шт.

7

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

6шт.

8

353308

NUT,M6 x 1.0, Cl 8

6шт.

9

249100

WASHER,0.78" ID x 1.25" OD x 0.06" Thk

1шт.

10

84379157

NUT

1шт.

11

86625041

HOSE CLAMP,11.2mm - 19.8mm

2шт.
