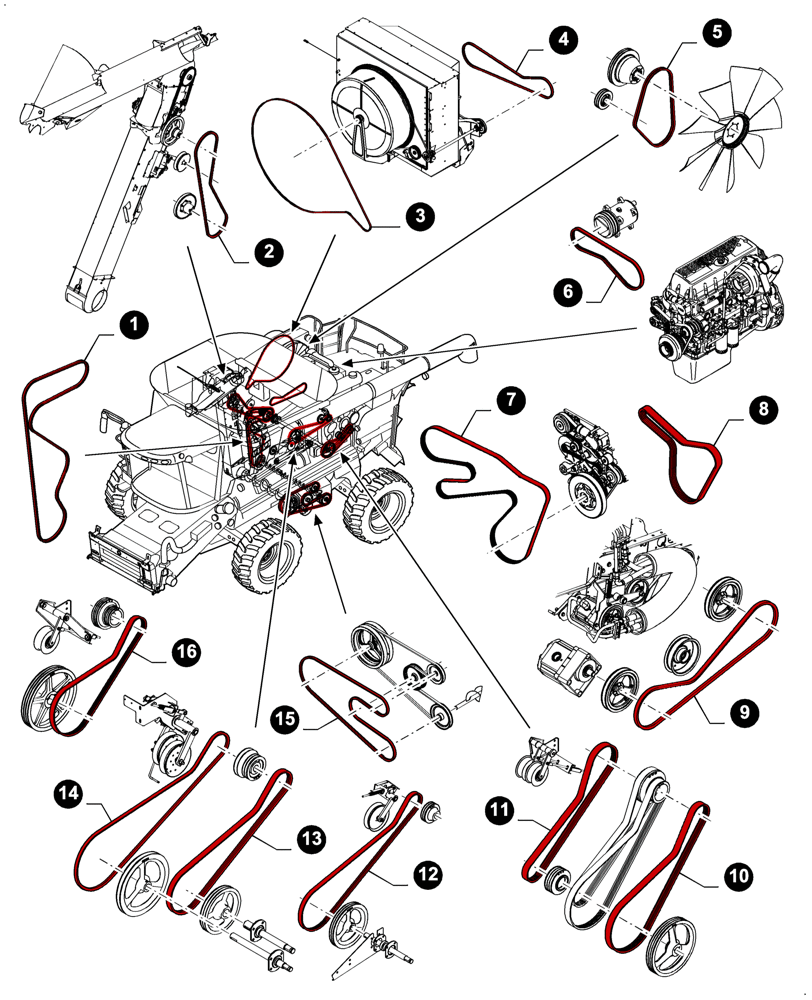

Запчасти Case IH 9230 (05.100.04[J01]) - 7230 8230 9230 - MAINTENANCE PARTS, BELTS (05) - SERVICE & MAINTENANCE

1

87283139

V-BELT,4622.8mm Nominal Length

Tailings auger drive

1шт.

2

86975809

V-BELT,0.88" W x 1844.04mm Nominal Length

Bubble-up auger drive

1шт.

3

86514512

V-BELT,0.49" W x 142.50" L

Rotary screen drive T2/T4

1шт.

FOR 7230 ONLY

1шт.

3

9842161

V-BELT,0.49" W x 146.10" L

Rotary screen drive T2/T4

1шт.

FOR 8230 AND 9230 ONLY

1шт.

4

87607871

V-BELT,12.45 mm W x 2190.00 mm L

Rotary screen drive T2/T4

1шт.

FOR 7230 ONLY

1шт.

4

87733431

V-BELT,12.45 mm W x 2203.87 L

Rotary screen drive T2/T4

1шт.

FOR 8230 AND 9230 ONLY

1шт.

5

87526140

SET OF BELTS,12.70 mm W x 1595.00 mm L

Fan drive T2/T4

1шт.

FOR 7230 ONLY

1шт.

5

87671291

SET OF BELTS,12.70 mm W x 1697.40 mm L

Fan drive T2/T4

1шт.

FOR 8230 AND 9230 ONLY

1шт.

6

84223612

BELT

AC compressor drive

1шт.

FOR 8230 AND 9230 ONLY

1шт.

7

84292639

BELT

Engine front components drive T2/T4

1шт.

FOR 7230 ONLY

1шт.

8

84247607

BELT

Engine front components drive T2/T4

1шт.

FOR 8230 AND 9230 ONLY

1шт.

9

87484708

V-BELT,1805mm Nominal Length

Cleaning fan drive, Narrow tire option

1шт.

10

86517680

V-BELT,3 Rib, 3045mm Nominal Length

Strawchopper drive

1шт.

11

86976208

V-BELT,3 Rib, 2720mm Nominal Length

Strawchopper drive

1шт.

12

84376860

BELT

Unloading drive, Standard

1шт.

13

84345674

BELT

Unloading drive, Dual

1шт.

14

84345673

BELT

Unloading drive, Dual

1шт.

15

87317063

V-BELT,3651mm Nominal Length x 22.33mm W

Shaker shoe drive

1шт.

16

86517680

V-BELT,3 Rib, 3045mm Nominal Length

Beater drive

1шт.
