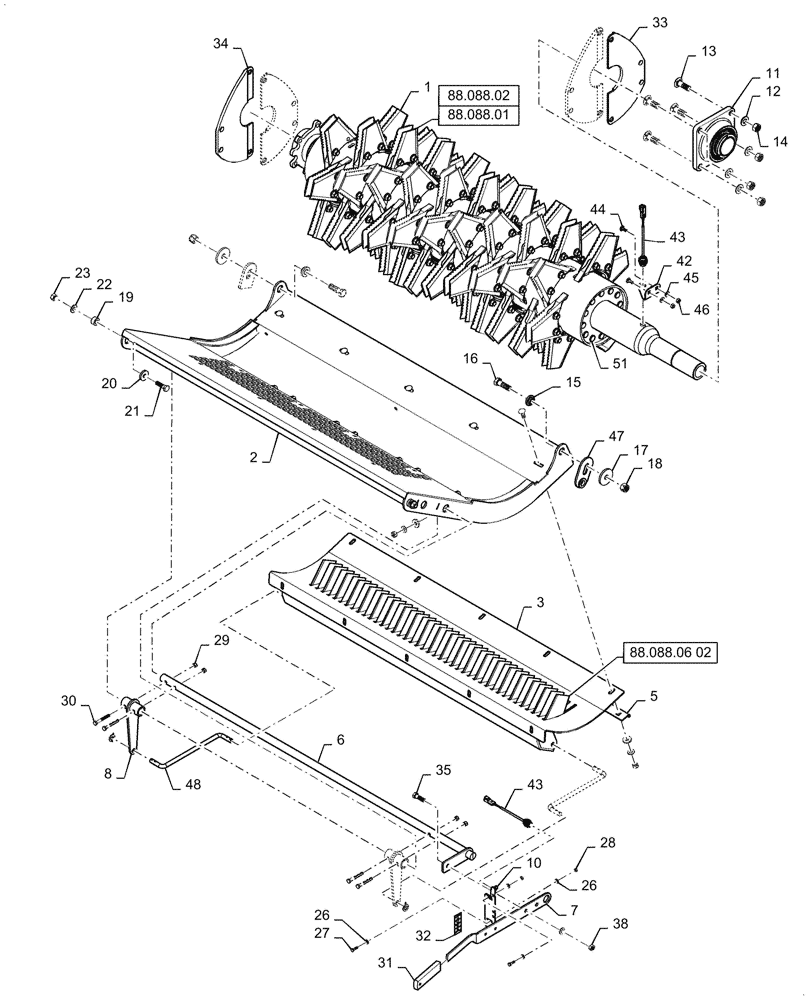

Запчасти Case IH 9230 (88.088.03) - DIA KITS: STRAWCHOPPER,STANDARD AND FINE (88) - ACCESSORIES

1

84203959

CHOPPER BODY ASSY,120 Knives

Assembly 120 Knives

1шт.

1

84276086

CHOPPER BODY ASSY

Assembly, 40 knives

1шт.

1

84217070

ROLLER,219.08mm OD x 1843mm L

Assy, 28 Knives

1шт.

2

84187500

PAN ASSY.

1шт.

3

84349269

KNIFE GUIDE

40 Knives Assembly

1шт.

3

87565653

GUARD ASSY.

Guide Only, No Knife Block

1шт.

4

87585836

KNIFE ASSY

DIA, Knife Bar W/ 21 Knives

1шт.

*

87670026

SERVICE KIT

DIA Kit, Standard Knife Bar W/O Knives

1шт.

4

87565661

BAR ASSY.

Knife Bare Fine Cut W/ 40 Knives

1шт.

*

87670027

SERVICE KIT

Kit, Knife Bar W/O Knives

1шт.

5

87687121

SLAT

1шт.

6

87670411

BAR

Pivot Bar

1шт.

7

87670413

HANDLE

1шт.

8

87670419

ARM ASSY.

2шт.

10

87670416

PLATE

Adjusting Plate

1шт.

11

87109088

BEARING ASSY

1шт.

12

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

4шт.

13

9845488

BOLT

M16 x 50

4шт.

14

392530

NUT,M16, Cl 10

4шт.

15

87000251

BUSHING,17mm ID x 34mm OD x 12mm L

2шт.

16

412398

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

2шт.

17

84007183

WASHER,16.5mm ID x 58mm OD x 6mm Thk

2шт.

18

86512555

NUT,M16 x 2, Cl 10

2шт.

19

699963

SPACER

2шт.

20

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

2шт.

21

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

2шт.

22

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

23

9706685

NUT,M12 x 1.75, Cl 8

2шт.

26

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

27

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

28

9706755

NUT,M6, Cl 8

2шт.

29

86629542

NUT,M8 x 1.25, Cl 8.8

4шт.

30

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

4шт.

31

357545

HANDLE GRIP

1шт.

32

87280049

DECAL

2шт.

33

87282748

SEAL

2шт.

34

87282748

SEAL

2шт.

35

87682392

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 10.9

M10 x 30

1шт.

38

86050279

FLANGE NUT,M10 x 1.5, Cl 10

1шт.

42

87651216

SUPPORT ASSY.

1шт.

43

87342073

SENSOR

Chopper Speed Housing

2шт.

44

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

45

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

46

9706690

NUT,M8 x 1.25, Cl 8

2шт.

47

84192820

GUIDE

2шт.

48

84191697

ROD,12.7mm OD x 277.7mm OAL

2шт.

49

84424433

SERVICE KIT

kit Incl. Ref. 3 & 48. Also Includes Knife Bar (40 Knives)

1шт.

50

87723223

DIA KIT, HARVESTER

Kit, Conversion From Beater To Chopper

1шт.

51

87284568

PLUG

12 Per Side

24шт.
