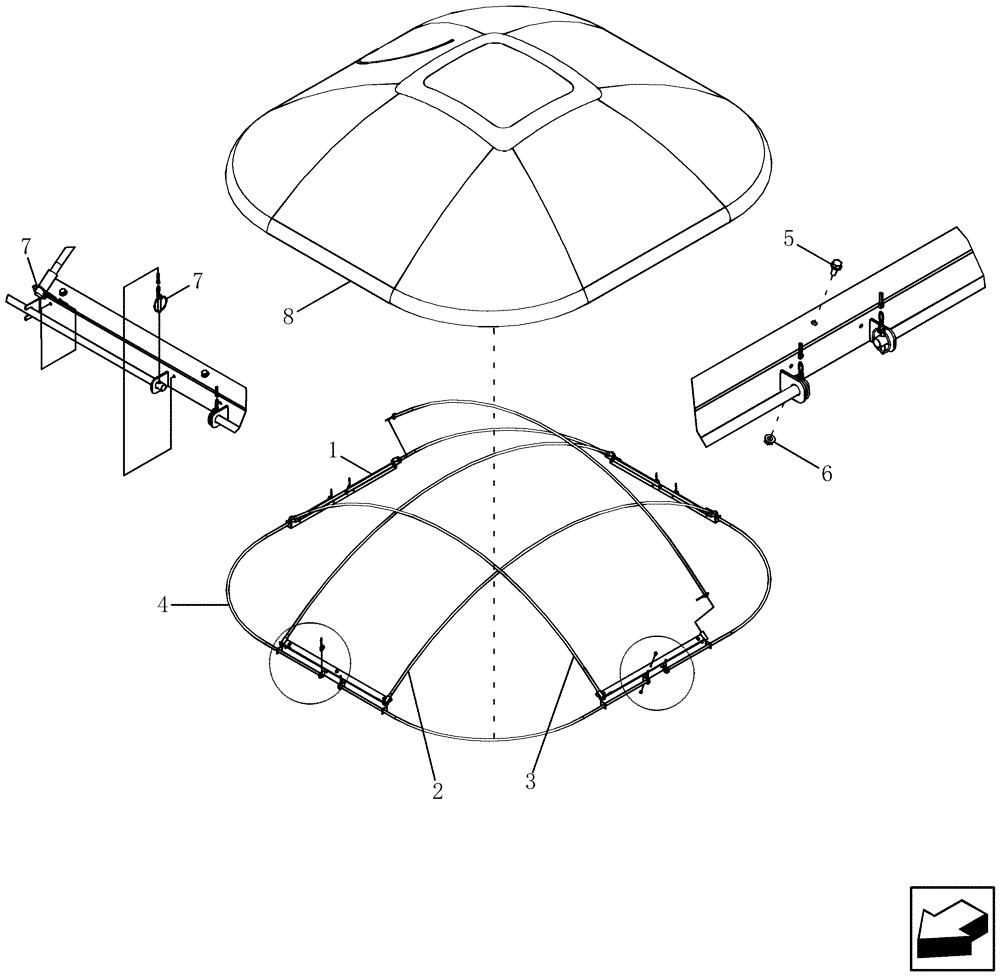

Запчасти Case IH 9230 (88.080.07) - DIA KIT: CANVAS ASSY, GRAINTANK EXT, 350 BUSHEL, NA/ANZ ONLY (88) - ACCESSORIES

84175803

SERVICE KIT

DIA, Includes Ref 1-9, 82/9230 NA/ANZ Only

1шт.

1

84154949

SUPPORT ASSY.

4шт.

2

84175795

PIPE

2шт.

3

84175799

PIPE

2шт.

4

84175801

PIPE

4шт.

5

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

12шт.

6

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

12шт.

7

87106279

PIN,6.4mm OD

16шт.

8

84187375

CANVAS

12330 L / 350 Bushel

1шт.

9

84201536

INSTRUCTION

1шт.
