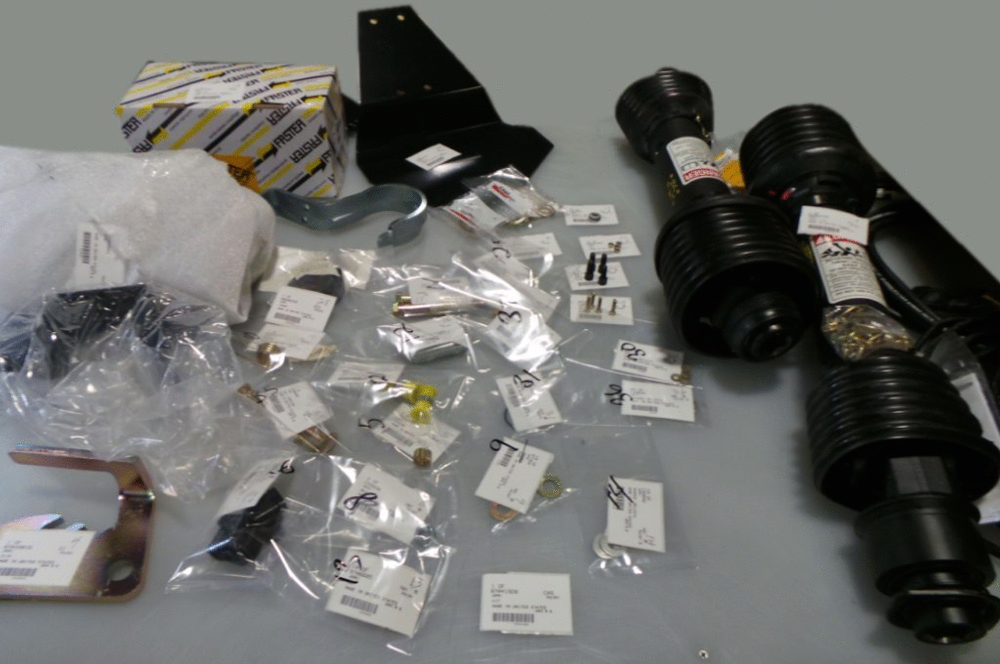

Запчасти Case IH 9230 (88.018.02) - DIA KIT: 2200-AF CONVERSION 8 ROW- NORTH AMERICA ONLY (88) - ACCESSORIES

1

87041928

KIT

2200 AF Coversion 8 Row-- North America Only Incl 2 - 38

1шт.

2

87041426

INSTRUCTION

1шт.

3

86980795

PTO SHAFT

2шт.

4

87024802

DRIVING SPROCKET

2шт.

5

87000841

BOLT

2шт.

6

87033816

CLIP

1шт.

7

86622548

SPACER,13.55mm ID x 19.01mm OD x 10.79mm L

1шт.

8

86553411

SPACER,13.49mm ID x 18.97mm OD x 23.88mm L

1шт.

9

9706693

BOLT,M12 x 60mm, Cl 8.8

1шт.

10

100038

NUT,M12 x 1.75, Cl 8

1шт.

11

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

12

87026147

SPRING

1шт.

13

86900194

BOLT,Hex, M12 x 115mm, Cl 10.9

2шт.

14

86837468

SPACER,13.5mm ID x 19mm OD x 68.3mm L

2шт.

15

9706685

NUT,M12 x 1.75, Cl 8

2шт.

16

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

17

143479

WASHER,15.08" ID x 31.75" OD x 3.5" Thk

4шт.

18

84435009

COUPLING

1шт.

19

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

20

9706690

NUT,M8 x 1.25, Cl 8

4шт.

21

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

22

86512138

HEX SOC SCREW,M8 x 20mm, Cl 12.9

4шт.

23

86596730

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

2шт.

24

86604445

HOSE,6.35mm ID x 2438.4mm L, SAE 100R1

2шт.

25

86632268

BRACKET

1шт.

26

86632270

BRACKET

1шт.

27

87030040

SELF-TAP SCREW,Hex Wash Hd, 3/8" x 3/4"

2шт.

28

86616339

SENSOR,CCW

2шт.

29

86978862

WIRE HARNESS

1шт.

30

86606228

COVER

1шт.

31

120098

BOLT,Hex, M5 x 20, 8.8, Full Thd

4шт.

32

322356

BELLEVILLE WASHER,M5 Bolt Size x 12mm OD x 1.85mm Thk

4шт.

33

84037188

O-RING,3mm Thk x 34.2mm ID, 70 Duro

1шт.

34

86508813

NUT,M5, Cl 8

4шт.

36

9780090

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 125mm, Cl 8.8

2шт.

37

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

38

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.
