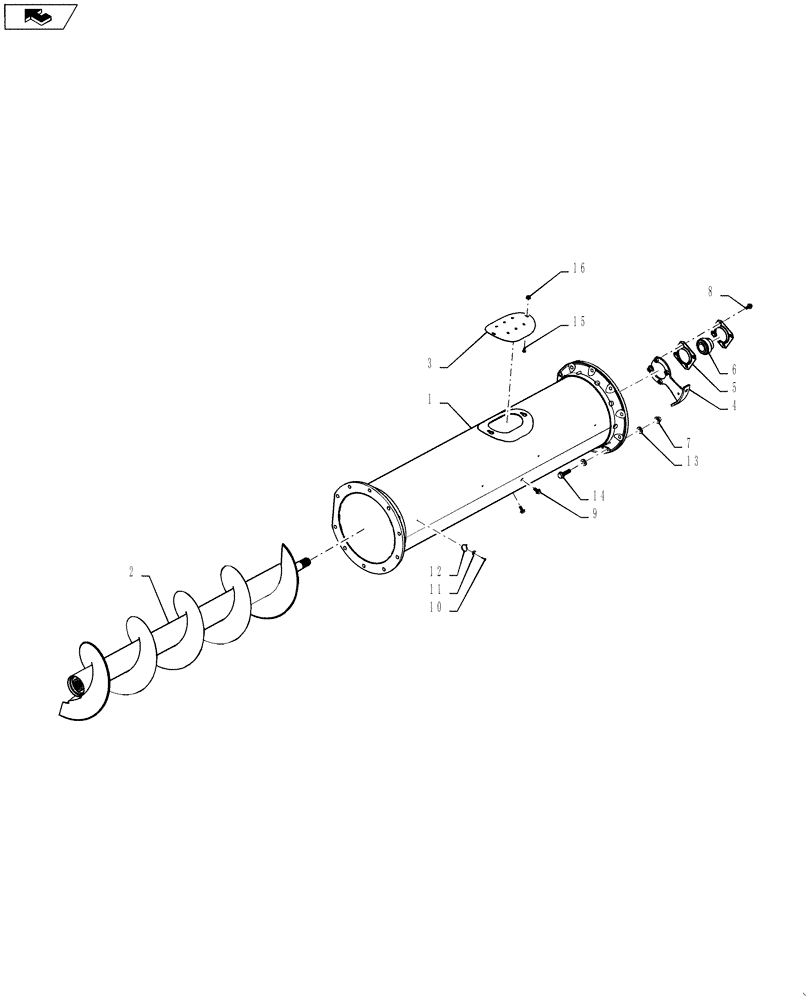

Запчасти Case IH 9230 (80.180.18) - AUGER UNLOAD ASSY - 56" (1700MM) STD WEAR HC VERSION (80) - CROP STORAGE/UNLOADING

84384623

SERVICE KIT

DIA, Standard, HC

1шт.

84362491

DIA KIT, HARVESTER

DIA,Abrassive, HC

1шт.

1

84361669

TUBE ASSY.

1шт.

2

84362490

AUGER

1шт.

3

84307048

CAP COVER

1шт.

4

84416629

BRACKET

1шт.

5

86979948

FLANGE

2шт.

6

84416910

BALL BEARING,41.27mm ID x 85mm OD x 22mm W

1шт.

7

86512498

FLANGE NUT,M16 x 2, Cl 10

10шт.

8

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

4шт.

9

87343550

FLANGE BOLT,Hex, M12 x 25mm

2шт.

10

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

4шт.

11

445394

RIVET,Pop, 3/16" x 1/2" OAL

4шт.

12

86566989

CABLE TIE,208mm L

4шт.

13

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

20шт.

14

87675533

BOLT,M16 x 75.4mm, Cl 10.9

10шт.

15

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

16

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.
