Запчасти Case IH 9230 (80.175.07) - UNLOADING AUGER, GEARBOX, LOWER (80) - CROP STORAGE/UNLOADING

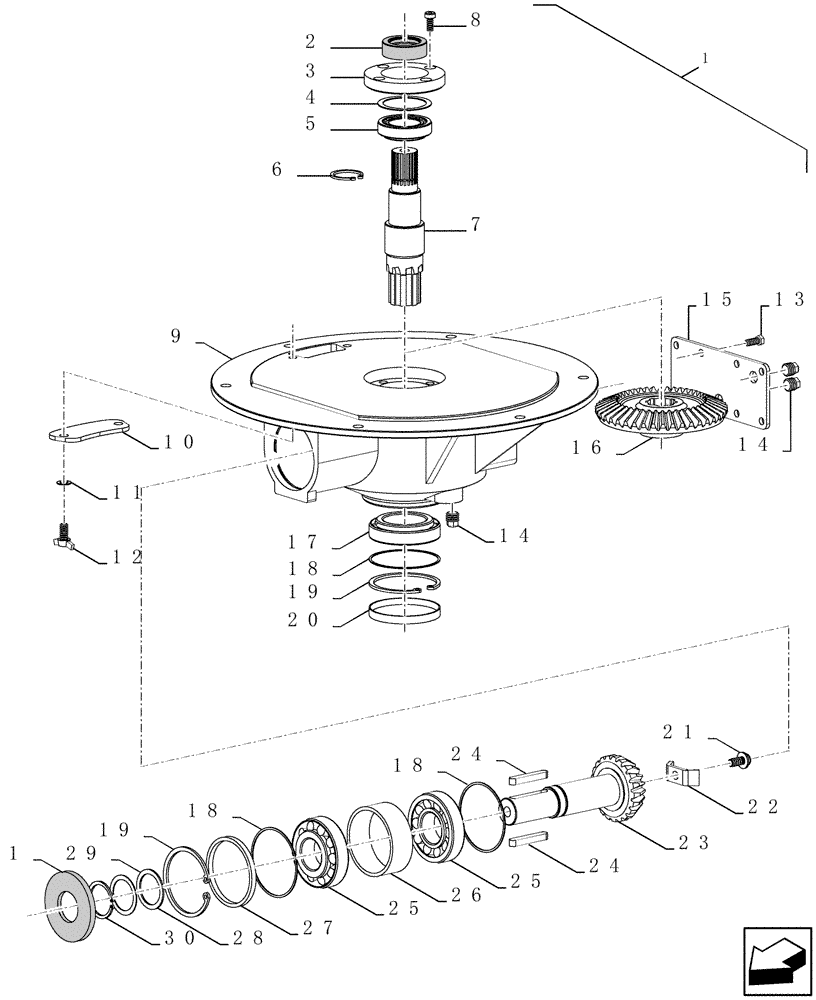

Схема запчастей Case IH 9230 - (80.175.07) - UNLOADING AUGER, GEARBOX, LOWER (80) - CROP STORAGE/UNLOADING
9
29
4
22
30
12
7
24
10
25
25
23
26
21
14
19
24
13
20
16
19
2
3
8
17
18
18
27
11
14
18
1
5
31
28
6
15

Артикул

Название

Примечание

Количество

1

84320052

GEARBOX

1шт.

1

84320052R

REMAN-GEARBOX

1шт.

1

84320052C

CORE-GEARBOX

Return Number

1шт.

2

86623221

RUBBER SEAL,38.9mm ID x 60mm OD x 18.5mm Thk

1шт.

3

86623222

FLANGE

Cover

1шт.

4

86623218

SHIM KIT

1шт.

5

86626475

BEARING ASSY,40mm ID x 68mm OD x 19mm W

1шт.

6

370004

SNAP RING,M35 x 1.5mm Thk, External

1шт.

7

86623219

SHAFT

1шт.

8

86566099

HEX SOC SCREW,M8 x 16mm, Cl 12.9

4шт.

9

86623223

HOUSING

1шт.

10

86623226

COVER

1шт.

11

9511037

SEAL

SEALRING

2шт.

12

412049

SCREW,M10 x 16mm

2шт.

13

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

14

9837623

PLUG

Drain, 3/8" Gas Cylinder W/Buna-N Seal

3шт.

15

86623224

COVER

1шт.

16

86623225

BEVEL PINION

1шт.

17

853116

TAPERED BEARING

1шт.

18

86623216

SHIM

3шт.

19

370013

SNAP RING,M90 x 3mm Thk, Internal

2шт.

20

86623227

COVER

1шт.

21

9804262

BOLT,M10 x 39.2mm, Cl 8.8

1шт.

22

86623220

PLATE

1шт.

23

86623217

SHAFT

Pinion

1шт.

24

170013

KEY

Round Corners, 8 x 10 x 56

2шт.

25

86613758

BEARING ASSY,40mm ID x 90mm OD x 25.25mm W

2шт.

26

86623228

SPACER,81mm ID x 89.8mm OD x 33mm OAL

1шт.

27

86623215

SPACER,81mm ID x 89.8mm OD x 7mm OAL

1шт.

28

86623231

SHIM,17.2mm ID x 24.9mm OD x 0.3mm Thk

1шт.

29

86623229

SHIM KIT

Also Incl (1) Ref 28

1шт.

30

440442

SNAP RING,M40 x 2.5mm Thk, External

2.5 x 40 mm

1шт.

31

86623230

RUBBER SEAL

1шт.

Выбрано товаров: 33
