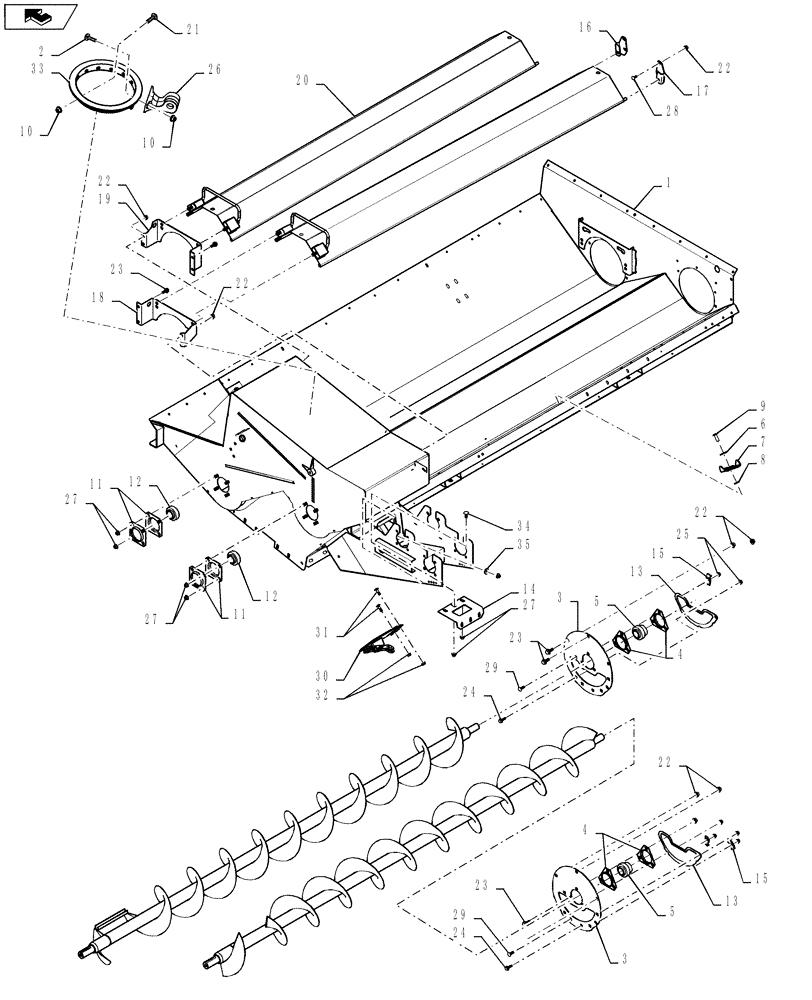

Запчасти Case IH 9230 (80.150.11[02]) - GRAIN TANK - BOTTOM AND AUGERS, HIGH CAPACITY (80) - CROP STORAGE/UNLOADING

1

NSS

NOT SOLD SEPARAT

Order 47410436 Sump And 84510311 Auger Trough

1шт.

2

84470496

CARRIAGE BOLT,Short Sq Nk, M16 x 2 x 60mm, Cl 10.9

2шт.

3

84524976

COVER

2шт.

4

84414985

FLANGED BEARING

4шт.

5

87605590

BEARING ASSY,35mm ID x 72mm OD x 19mm W

2шт.

6

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

2шт.

7

362786

FASTENER

2шт.

8

362785

BELLEVILLE WASHER,5.5mm ID x 15mm OD x 0.5mm Thk

2шт.

9

445394

RIVET,Pop, 3/16" x 1/2" OAL

2шт.

10

86512498

FLANGE NUT,M16 x 2, Cl 10

14шт.

11

1307583C1

FLANGED BEARING

4шт.

12

87605595

BEARING,40mm ID x 80mm OD x 22mm W

2шт.

13

84226493

INSPECTION DOOR

2шт.

14

84517688

ANGLE

1шт.

15

425093

CLAMP

6шт.

16

84376421

BRACKET

1шт.

17

84376423

BRACKET

1шт.

18

84524974

SUPPORT

1шт.

19

84524973

SUPPORT

1шт.

20

NS

NOT SERVICED

Order Components Below

2шт.

84524928

COVER

Grain Tank Auger

1шт.

84233663

HANDLE

1шт.

80025823

SPRING,63.5mm Free Length

Guard And Lock

2шт.

130004

COTTER PIN,2.9mm OD x 31.4mm OAL

2шт.

86624146

WASHER,0.53" ID x 1" OD x 0.12" Thk

2шт.

86976481

COVER

Cap

2шт.

21

84382750

CARRIAGE BOLT,Short Sq Nk, M16 x 2 x 40mm, Cl 10.9

12шт.

22

86050279

FLANGE NUT,M10 x 1.5, Cl 10

18шт.

23

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

18шт.

24

87698833

BOLT,M8 x 33.1mm, Cl 10.9

6шт.

25

86507066

FLANGE NUT,M8 x 1.25, Cl 10

14шт.

26

84403366

BRACKET

1шт.

27

86512497

FLANGE NUT,M12 x 1.75, Cl 10

14шт.

28

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

4шт.

29

87682384

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 10.9

8шт.

30

84529558

COVER ASSY

1шт.

31

87752072

CARRIAGE BOLT,M6 x 1.0 x 26.6mm, Cl 10.9

2шт.

32

86050300

FLANGE NUT,M6 x 1.0, Cl 10

2шт.

33

84376145

RING

1шт.

34

87695426

CARRIAGE BOLT,M12 x 30mm, Cl 0.9

6шт.

35

86585939

BELLEVILLE WASHER,M12 Bolt Size x 32mm OD x 3.5mm Thk

3шт.
