Запчасти Case IH 9230 (80.150.03[04]) - GRAIN TANK, HIGH CAPACITY, HARDWARE (80) - CROP STORAGE/UNLOADING

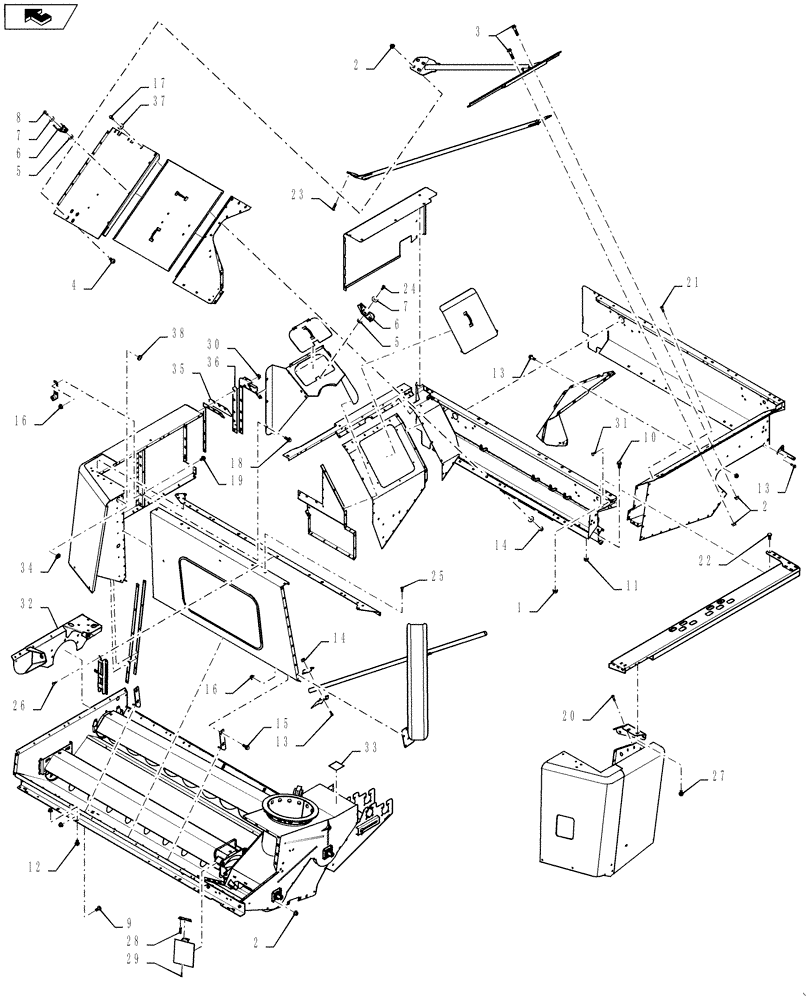

Схема запчастей Case IH 9230 - (80.150.03[04]) - GRAIN TANK, HIGH CAPACITY, HARDWARE (80) - CROP STORAGE/UNLOADING
16
14
21
13
32
15
8
37
20
6
34
36
19
27
9
30
26
35
7
24
2
13
11
33
3
14
2
home
31
22
13
5
25
1
5
28
6
10
18
23
16
17
2
29
12
4
7
38

Артикул

Название

Примечание

Количество

1

43436

FLANGE NUT,M12

3шт.

2

86512497

FLANGE NUT,M12 x 1.75, Cl 10

14шт.

3

87670764

BOLT,M12 x 61.8mm, Cl 10.9

6шт.

4

87695413

BOLT,M12 x 51.8mm, Cl 10.9

4шт.

5

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

13шт.

6

362786

FASTENER

13шт.

7

362785

BELLEVILLE WASHER,5.5mm ID x 15mm OD x 0.5mm Thk

13шт.

8

445394

RIVET,Pop, 3/16" x 1/2" OAL

7шт.

9

84382750

CARRIAGE BOLT,Short Sq Nk, M16 x 2 x 40mm, Cl 10.9

1шт.

10

87495304

FLANGE BOLT,M6 x 55.4mm, Cl 10.9

6шт.

11

87016581

FLANGE NUT,M16 x 2, CI 10

10шт.

12

87698766

FLANGE BOLT,M16 x 45.4mm, Cl 10.9

3шт.

13

87698833

BOLT,M8 x 33.1mm, Cl 10.9

43шт.

14

86507066

FLANGE NUT,M8 x 1.25, Cl 10

191шт.

15

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

8шт.

16

86050279

FLANGE NUT,M10 x 1.5, Cl 10

20шт.

17

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

160шт.

18

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

12шт.

19

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

2шт.

20

87030775

BOLT,M8 x 38.1mm, Cl 10.9

4шт.

21

87030775

BOLT,M8 x 38.1mm, Cl 10.9

2шт.

22

398792

SCREW,Hex, M12 x 25mm, Cl 10.9

3шт.

23

87495307

CARRIAGE BOLT,M12 x 45mm, Cl 10.9

4шт.

24

446453

RIVET,Pop, 4mm OD x 9.4mm L

7шт.

25

87682384

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 10.9

5шт.

26

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

3шт.

27

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

2шт.

28

66809

SPRING,Compression, 19.05mm OD x 63.5mm L

1шт.

29

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

2шт.

30

87681210

FLANGE NUT,M8 x 1.25, Cl 10

13шт.

31

87682390

CARRIAGE BOLT,M10 x 1.5 x 20mm, Cl 10.9

1шт.

32

84524970

SUPPORT

1шт.

33

84541747

DECAL

1шт.

34

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

1шт.

35

87634844

SEAL,63.5mm W x 318mm L x 3.3mm Thk

1шт.

36

87524453

SEAL,50mm W x 512mm L x 2.5mm Thk

2шт.

37

87013351

WASHER,0.34" ID x 1.25" OD x 0.12" Thk

8шт.

38

86625130

PLUG,Dome, 1.250" hole, Nylon

1шт.

Выбрано товаров: 38
