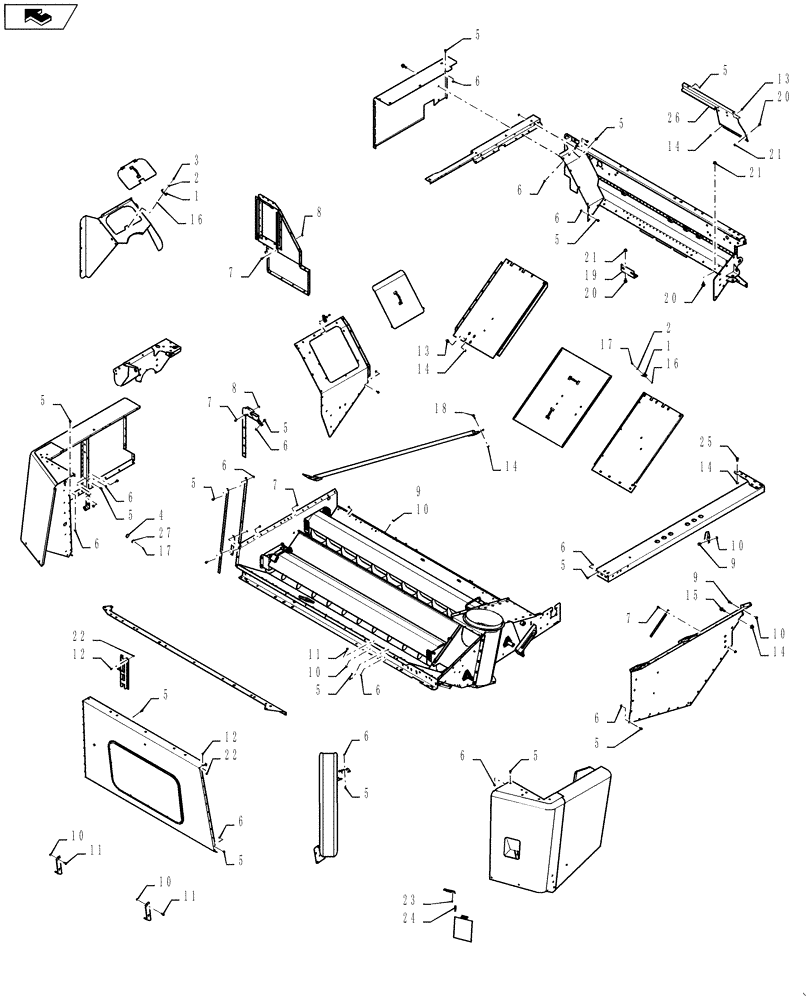

Запчасти Case IH 9230 (80.150.03[02]) - GRAIN TANK HARDWARE (80) - CROP STORAGE/UNLOADING

1

362786

FASTENER

13шт.

2

362785

BELLEVILLE WASHER,5.5mm ID x 15mm OD x 0.5mm Thk

13шт.

3

446453

RIVET,Pop, 4mm OD x 9.4mm L

7шт.

4

86625130

PLUG,Dome, 1.250" hole, Nylon

1шт.

5

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

175шт.

6

86507066

FLANGE NUT,M8 x 1.25, Cl 10

170шт.

7

87698833

BOLT,M8 x 33.1mm, Cl 10.9

18шт.

8

87681210

FLANGE NUT,M8 x 1.25, Cl 10

13шт.

9

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

10шт.

10

86050279

FLANGE NUT,M10 x 1.5, Cl 10

16шт.

11

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

6шт.

12

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

8шт.

13

87343550

FLANGE BOLT,Hex, M12 x 25mm

3шт.

14

86512497

FLANGE NUT,M12 x 1.75, Cl 10

13шт.

15

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

5шт.

16

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

13шт.

17

445394

RIVET,Pop, 3/16" x 1/2" OAL

7шт.

18

87695414

BOLT,M12 x 1.25 x 46.8mm, Cl 10.9

2шт.

19

86600174

BRACKET

1шт.

20

87698766

FLANGE BOLT,M16 x 45.4mm, Cl 10.9

7шт.

21

86512498

FLANGE NUT,M16 x 2, Cl 10

7шт.

22

87551580

BRACKET

1шт.

23

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

2шт.

24

66809

SPRING,Compression, 19.05mm OD x 63.5mm L

1шт.

25

398792

SCREW,Hex, M12 x 25mm, Cl 10.9

3шт.

26

84405967

DEFLECTOR

1шт.

27

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

1шт.
