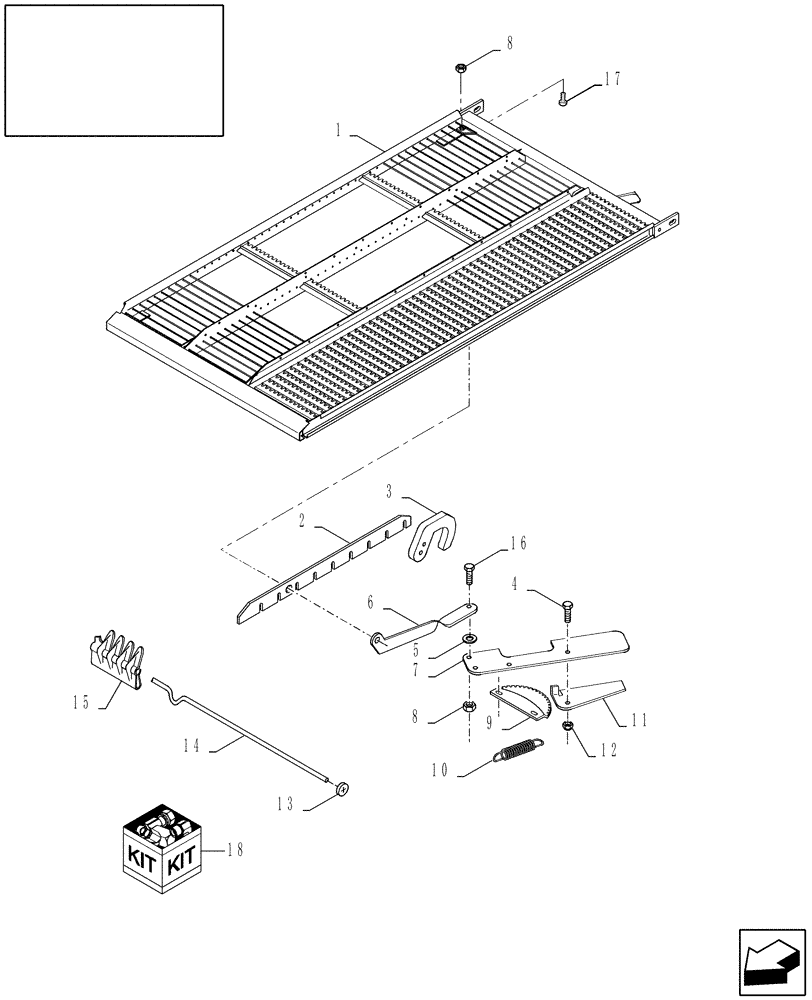

Запчасти Case IH 9230 (74.118.01) - LOWER SIEVES (74) - CLEANING

1

84320021

SIEVE

GRAIN 1 1/8"(3 to 15) - Painted

2шт.

Part is Not Remote Ready; Refer to Ref 18

1шт.

1

47389892

SIEVE

Grain 1-1/8in Wide, Part Is Not Remote Ready; Refer to Ref 18

2шт.

1

84400473

SIEVE

CLOSZ 1 5/8"(3 to 15) - Painted

2шт.

Part is Not Remote Ready; Refer to Ref 18

1шт.

1

87109850

SIEVE

CLOSZ 1 5/8"(3 to 15) - Galvanized

2шт.

Part is Not Remote Ready; Refer to Ref 18

1шт.

6

84056678

PLATE

1шт.

7

9817781

HANDLE

1шт.

8

86629542

NUT,M8 x 1.25, Cl 8.8

5шт.

9

426565

QUADRANT

1шт.

10

449942

SPRING

1шт.

11

432187

HANDLE

1шт.

12

353308

NUT,M6 x 1.0, Cl 8

1шт.

13

398561

CLIP

1шт.

14

453189

WIRE

L = 766 MM

47шт.

14

428728

RETAINING WIRE

L = 1298 MM

47шт.

15

445571

BAR

CL 1-1/8"-240

47шт.

15

481730

BAR

CL 1-1/8"-230

94шт.

15

445571

BAR

CL 1-1/8"-240

235шт.

16

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

17

412495

HEX SOC SCREW,Flat Hd, M8 x 20mm, Cl 8.8

4шт.

18

84084326

DIA KIT, HARVESTER

Sieve; Incl Ref 1, 87109846 (2), Plus Adjusting Plates 84062611 (1), 84053677 (1), And Necessary Mounting Hardware

1шт.

18

84084328

DIA KIT, HARVESTER

Sieve; Incl Ref 1, 87109850 (2), Adjusting Plates 84062611 (1) & 84053677 (1), Plus Mounting Hardware

1шт.
