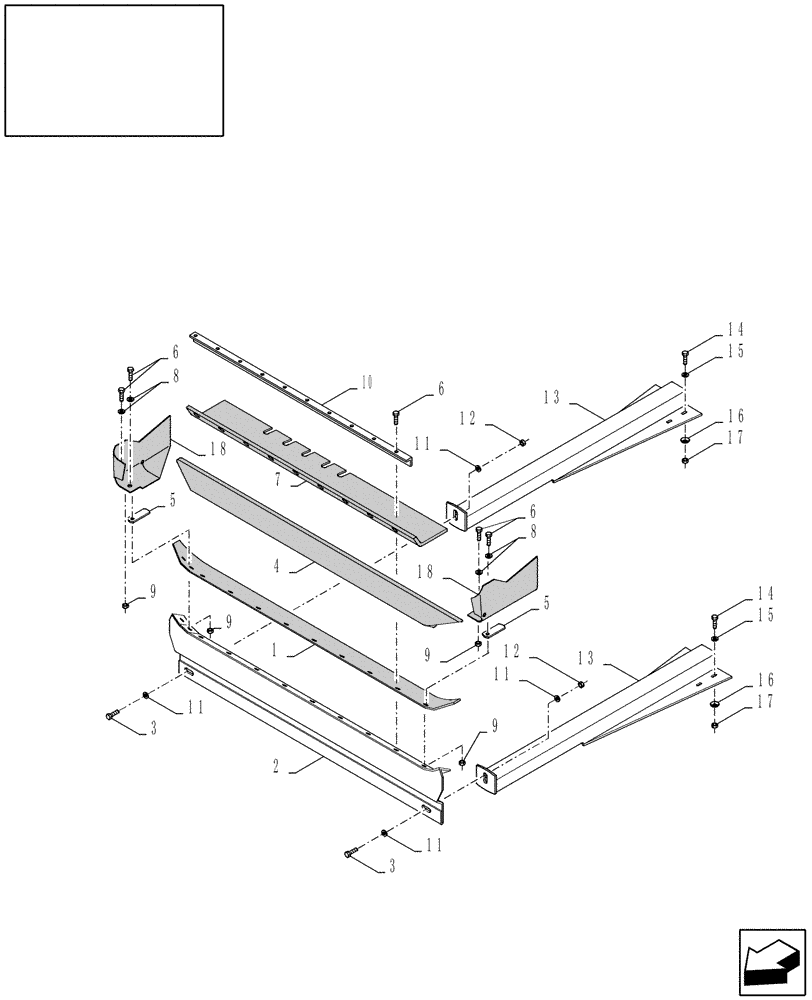

Запчасти Case IH 9230 (74.110.04) - GRAIN PAN, SUPPORTS & SEALS (74) - CLEANING

1

84462460

SEALING STRIP

1шт.

2

84462472

SUPPORT

1шт.

3

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

4

87333212

RUBBER SEAL,70mm W x 1816mm OAL

1шт.

5

84007182

BRACKET

2шт.

6

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

1шт.

7

87376934

CANVAS

1шт.

8

140040

WASHER,6.6mm ID x 22mm OD x 2mm Thk

4шт.

9

353308

NUT,M6 x 1.0, Cl 8

1шт.

10

84000704

STRIP

Lath, On Top Of 84005167

2шт.

10

84005167

RUBBER SEAL,70mm W x 1677mm OAL

1шт.

11

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

12

100016

NUT,M10 x 1.5, Cl 8

2шт.

13

87318664

SUPPORT

2шт.

14

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

8шт.

15

87033737

WASHER,9mm ID x 28mm OD x 3mm Thk

8шт.

16

412650

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.4mm Thk

16шт.

17

9706690

NUT,M8 x 1.25, Cl 8

8шт.

18

87323001

CANVAS

2шт.
